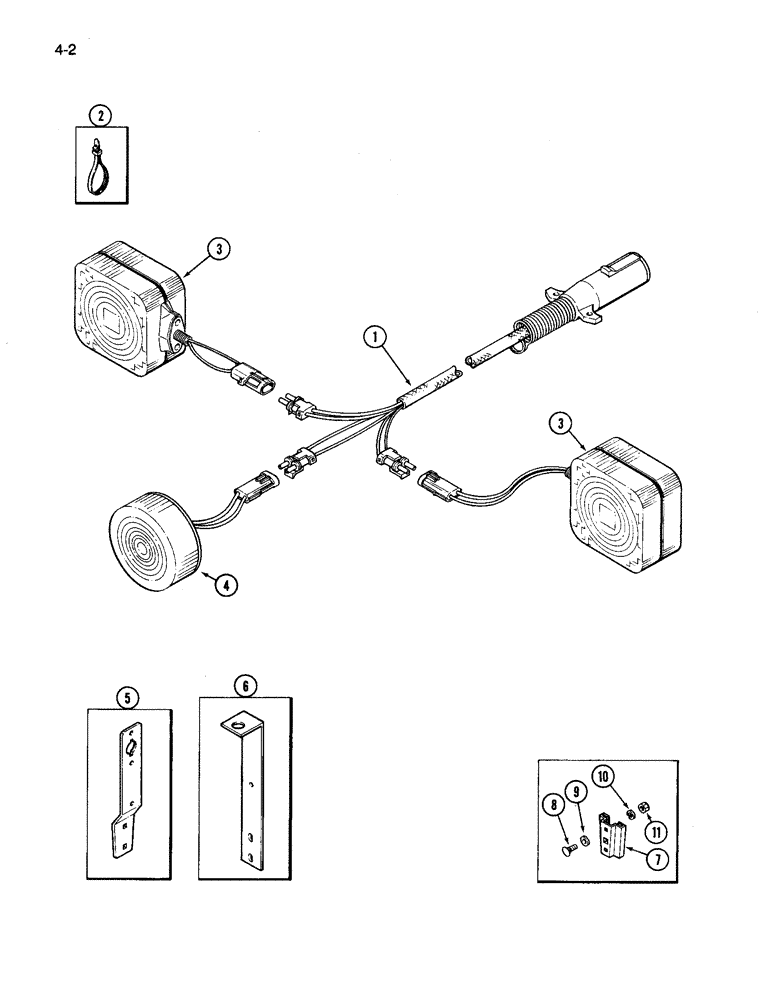

Запчасти Case IH 696 (4-02) - ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

197860C1

DEFLECTOR

HARNESS - safety lighting

1шт.

2

813579C1

CABLE TIE

STRAP - harness tie

20шт.

3

91913C91

LIGHT

ASSEMBLY - turn signal

2шт.

4

91986C91

LIGHT

ASSEMBLY - tail

1шт.

5

1978653C1

SUPPORT

BRACKET - lamp mounting

3шт.

6

131946C1

SUPPORT

BRACKET - tail light support

1шт.

7

398976R1

BRACKET

- safety light retaining

1шт.

8

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

2шт.

9

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
