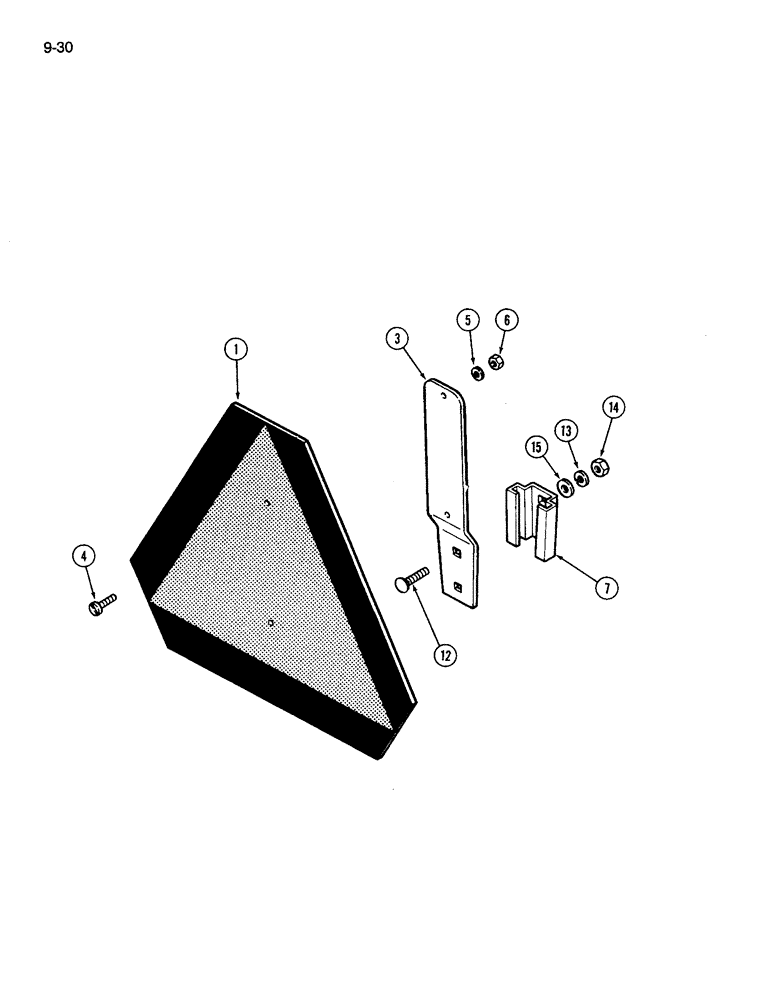

Запчасти Case IH 696 (9-30) - SMV EMBLEM (09) - CHASSIS/ATTACHMENTS

1

A59450

WARNING SIGN

EMBLEM - slow moving vehicle

1шт.

321-4311

DECAL

- SMV emblem

1шт.

3

131946C1

SUPPORT

BRACKET - emblem support

1шт.

4

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

5

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

2шт.

6

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

7

A59457

BRACKET

SOCKET - SMV emblem

1шт.

12

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.
