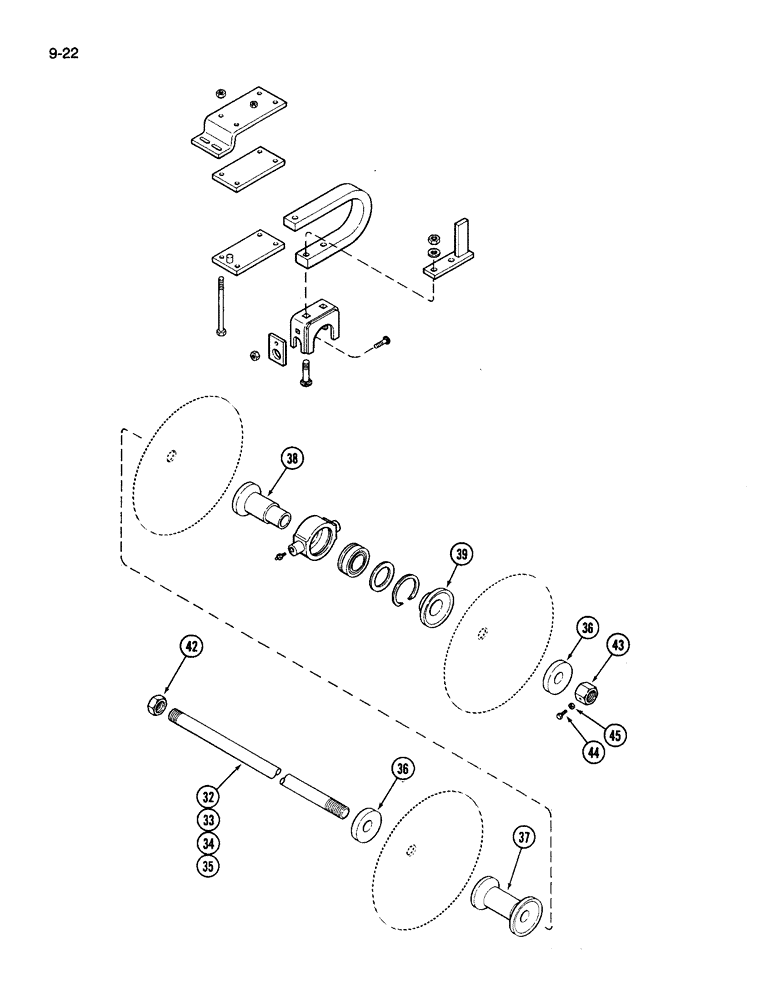

Запчасти Case IH 696 (9-22) - DISC AND GANG (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
32
1976220C1
BOLT
- arbor, 2205 mm (9 discs) (35 foot 9 inch, 38 foot 11 inch and 45 foot 3 inch)
2шт.
33
1976221C1
BOLT
- arbor, 2460 mm (10 discs) (26 foot 3 inch, 29 foot 5 inch, 38 foot 11 inch and 45 foot 3 inch)
2шт.
33
1976221C1
BOLT
- arbor, 2460 mm (10 discs) (42 foot 1 inch)
4шт.
34
1976222C1
BOLT
- arbor, 2715 mm (11 discs) (42 foot 1 inch and 45 foot 3 inch)
2шт.
35
1976223C1
BOLT
- arbor, 2970 mm (12 discs) (29 foot 5 inch, 32 foot 7 inch and 45 foot 3 inch)
2шт.
36
1978619C1
WASHER
HEAD - washer (26 foot 3 inch and 29 foot 5 inch)
16шт.
36
1978619C1
WASHER
HEAD - washer (32 foot 7 inch)
20шт.
36
1978619C1
WASHER
HEAD - washer (35 foot 9 inch, 38 foot 11 inch, 42 foot 1 inch and 45 foot 3 inch)
24шт.
37
1976229C1
SPOOL
- spacing (26 foot 3 inch)
36шт.
37
1976229C1
SPOOL
- spacing (29 foot 5 inch)
44шт.
37
1976229C1
SPOOL
- spacing (32 foot 7 inch)
48шт.
37
1976229C1
SPOOL
- spacing (35 foot 9 inch)
52шт.
37
1976229C1
SPOOL
- spacing (38 foot 11 inch)
54шт.
37
1976229C1
SPOOL
- spacing (42 foot 1 inch)
62шт.
37
1976229C1
SPOOL
- spacing (45 foot 3 inch)
68шт.
38
1976224C1
SPOOL
- bearing, long (26 foot 3 inch, 29 foot 5 inch)
22шт.
38
1976224C1
SPOOL
- bearing, long (32 foot 7 inch)
24шт.
38
1976224C1
SPOOL
- bearing, long (35 foot 9 inch)
26шт.
38
1976224C1
SPOOL
- bearing, long (38 foot 11 inch)
30шт.
38
1976224C1
SPOOL
- bearing, long (42 foot 1 inch)
32шт.
38
1976224C1
SPOOL
- bearing, long (45 foot 3 inch)
34шт.
39
1976225C1
SPOOL
- bearing, short (26 foot 3 inch and 29 foot 5 inch)
22шт.
39
1976225C1
SPOOL
- bearing, short (32 foot 7 inch)
24шт.
39
1976225C1
SPOOL
- bearing, short (35 foot 9 inch)
26шт.
39
1976225C1
SPOOL
- bearing, short (38 foot 11 inch)
30шт.
39
1976225C1
SPOOL
- bearing, short (42 foot 1 inch)
32шт.
39
1976225C1
SPOOL
- bearing, short (45 foot 3 inch)
34шт.
42
19-6096
NUT,2"-4, G5
- hex, 2 inch NC (26 foot 3 inch, 29 foot 5 inch)
8шт.
42
19-6096
NUT,2"-4, G5
- hex, 2 inch NC (32 foot 7 inch)
10шт.
42
19-6096
NUT,2"-4, G5
- hex, 2 inch NC (35 foot 9 inch, 38 foot 11 inch, 42 foot 1 inch and 45 foot 3 inch)
12шт.
43
1973496C1
NUT
- special (26 foot 3 inch, 29 foot 5 inch)
8шт.
43
1973496C1
NUT
- special (32 foot 7 inch)
10шт.
43
1973496C1
NUT
- special (35 foot 9 inch, 38 foot 11 inch, 42 foot 1 inch and 45 foot 3 inch)
12шт.
44
413-68
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
(26 foot 3 inch, 29 foot 5 inch) Hex, 3/8"-16 x 1/2", G5, Full Thd
8шт.
44
413-68
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
(32 foot 7 inch) Hex, 3/8"-16 x 1/2", G5, Full Thd
10шт.
44
413-68
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
(35 foot 9 inch, 38 foot 11 inch 42 foot 1 inch and 45 foot 3 inch) Hex, 3/8"-16 x 1/2", G5, Full Thd
12шт.
45
385525R1
LOCK NUT,3/8"-16, GB
NUT - hex lock, 3/8 inch NC
1шт.
