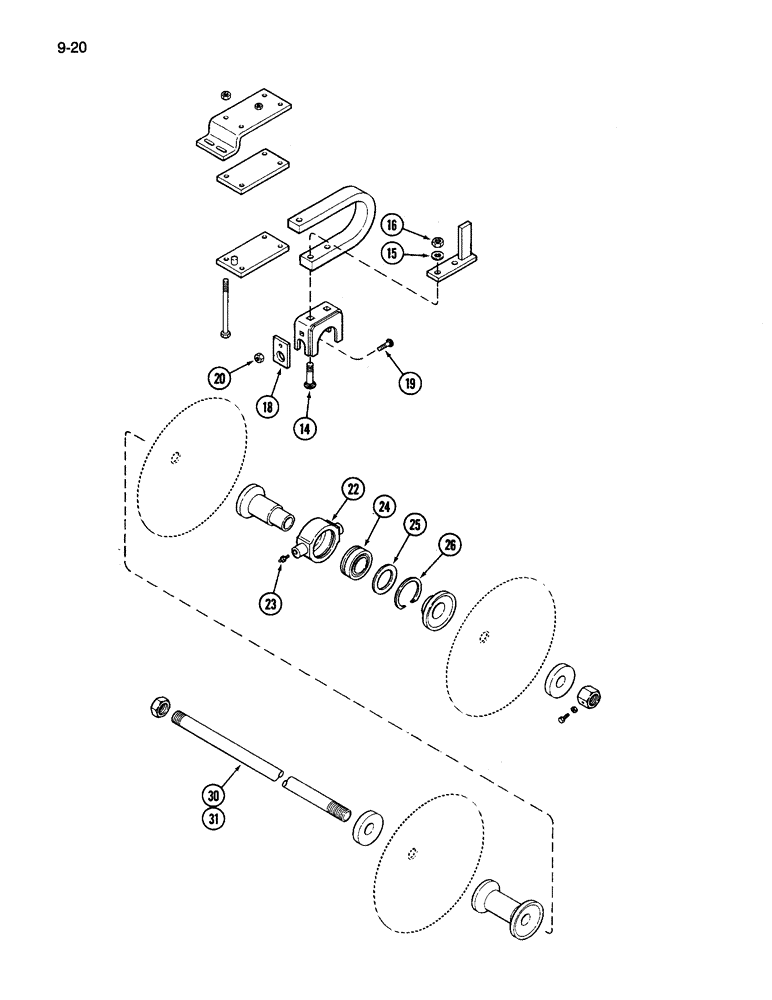

Запчасти Case IH 696 (9-20) - DISC AND GANG (09) - CHASSIS/ATTACHMENTS

14

247-14

CARRIAGE BOLT,Sq Nk, 7/8" - 9 x 3 1/2", Gr 5

BOLT - round head square neck, 7/8 NC x 3-1/2 inch (26 foot 3 inch, 29 foot 5 inch)

44шт.

14

247-14

CARRIAGE BOLT,Sq Nk, 7/8" - 9 x 3 1/2", Gr 5

BOLT - round head square neck, 7/8 NC x 3-1/2 inch (32 foot 7 inch)

48шт.

14

247-14

CARRIAGE BOLT,Sq Nk, 7/8" - 9 x 3 1/2", Gr 5

BOLT - round head square neck, 7/8 NC x 3-1/2 inch (35 foot 9 inch)

52шт.

14

247-14

CARRIAGE BOLT,Sq Nk, 7/8" - 9 x 3 1/2", Gr 5

BOLT - round head square neck, 7/8 NC x 3-1/2 inch (38 foot 11 inch)

60шт.

14

247-14

CARRIAGE BOLT,Sq Nk, 7/8" - 9 x 3 1/2", Gr 5

BOLT - round head square neck, 7/8 NC x 3-1/2 inch (42 foot 1 inch)

64шт.

14

247-14

CARRIAGE BOLT,Sq Nk, 7/8" - 9 x 3 1/2", Gr 5

BOLT - round head square neck, 7/8 NC x 3-1/2 inch (45 foot 3 inch)

68шт.

15

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch

1шт.

16

9413973

LOCK NUT,7/8"-9, GB

NUT - hex lock, 7/8 inch NC

1шт.

18

2330057-30

FASTENER

PLATE - bearing (26 foot 3 inch, 29 foot 5 inch)

44шт.

18

2330057-30

FASTENER

PLATE - bearing (32 foot 7 inch)

48шт.

18

2330057-30

FASTENER

PLATE - bearing (35 foot 9 inch)

52шт.

18

2330057-30

FASTENER

PLATE - bearing (38 foot 11 inch)

60шт.

18

2330057-30

FASTENER

PLATE - bearing (42 foot 1 inch)

64шт.

18

2330057-30

FASTENER

PLATE - bearing (45 foot 3 inch)

68шт.

19

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch (1 per plate)

1шт.

20

9413969

NUT,5/8"-11, GB

- hex lock, 5/8 inch NC

1шт.

22

1978620C1

TRUNNION

- gang bearing (26 foot 3 inch, 29 foot 5 inch)

22шт.

22

1978620C1

TRUNNION

- gang bearing (32 foot 7 inch)

24шт.

22

1978620C1

TRUNNION

- gang bearing (35 foot 9 inch)

26шт.

22

1978620C1

TRUNNION

- gang bearing (38 foot 11 inch)

30шт.

22

1978620C1

TRUNNION

- gang bearing (42 foot 1 inch)

32шт.

22

1978620C1

TRUNNION

- gang bearing (45 foot 3 inch)

34шт.

23

87414

LUBE NIPPLE,1/4" - 28

FITTING - lube, 1/4 inch straight (1 per trunion)

1шт.

24

2700615-01

BALL BEARING,70mm ID x 125mm OD x 39.69mm W

- gang (1 per trunnion)

1шт.

25

2330057-32

WASHER

- trunnion (1 per trunnion)

1шт.

26

2700616-01

OIL SEAL

SNAP RING - trunnion (1 per trunnion)

1шт.

30

1976218C1

BOLT

- arbor, 1690 mm (7 discs)(26 foot 3 inch, 29 foot 5 inch)

2шт.

30

1976218C1

BOLT

- arbor, 1690 mm (7 discs)(32 foot 7 inch)

6шт.

30

1976218C1

BOLT

- arbor, 1690 mm (7 discs)(35 foot 9 inch)

8шт.

30

1976218C1

BOLT

- arbor, 1690 mm (7 discs)(38 foot 11 inch, 42 foot 1 inch)

4шт.

30

1976218C1

BOLT

- arbor, 1690 mm (7 discs)(45 foot 3 inch)

2шт.

31

1976219C1

BOLT

- arbor, 1950 mm (8 discs)(26 foot 3 inch)

4шт.

31

1976219C1

BOLT

- arbor, 1950 mm (8 discs)(29 foot 5 inch, 32 foot 7 inch and 35 foot 9 inch)

2шт.

31

1976219C1

BOLT

- arbor, 1950 mm (8 discs) (38 foot 11 inch)

4шт.

31

1976219C1

BOLT

- arbor, 1950 mm (8 discs) (42 foot 1 inch, and 45 foot 3 inch)

2шт.
