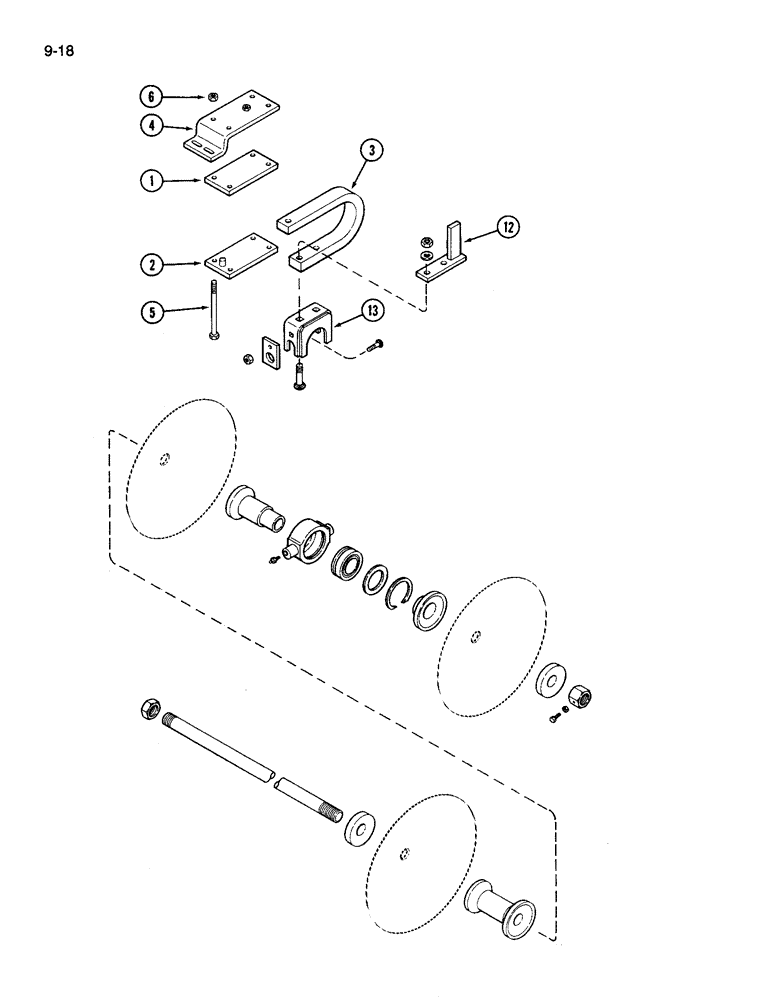

Запчасти Case IH 696 (9-18) - DISC AND GANG (09) - CHASSIS/ATTACHMENTS

1

2330057-31

PLATE

- bearing standard (26 foot 3 inch, 29 foot 5 inch)

22шт.

1

2330057-31

PLATE

- bearing standard (32 foot 7 inch)

24шт.

1

2330057-31

PLATE

- bearing standard (35 foot 9 inch)

26шт.

1

2330057-31

PLATE

- bearing standard (38 foot 11 inch)

30шт.

1

2330057-31

PLATE

- bearing standard (42 foot 1 inch)

32шт.

1

2330057-31

PLATE

- bearing standard (45 foot 3 inch)

34шт.

2

1973351C1

PLATE

ASSEMBLY - bearing (26 foot 3 inch, 29 foot 5 inch)

22шт.

2

1973351C1

PLATE

ASSEMBLY - bearing (32 foot 7 inch)

24шт.

2

1973351C1

PLATE

ASSEMBLY - bearing (35 foot 9 inch)

26шт.

2

1973351C1

PLATE

ASSEMBLY - bearing (38 foot 11 inch)

30шт.

2

1973351C1

PLATE

ASSEMBLY - bearing (42 foot 1 inch)

32шт.

2

1973351C1

PLATE

ASSEMBLY - bearing (45 foot 3 inch)

34шт.

3

2330057-01

SHANK

SPRING - gang standard (26 foot 3 inch, 29 foot 5 inch)

22шт.

3

2330057-01

SHANK

SPRING - gang standard (32 foot 7 inch)

24шт.

3

2330057-01

SHANK

SPRING - gang standard (35 foot 9 inch)

26шт.

3

2330057-01

SHANK

SPRING - gang standard (38 foot 11 inch)

30шт.

3

2330057-01

SHANK

SPRING - gang standard (42 foot 1 inch)

32шт.

3

2330057-01

SHANK

SPRING - gang standard (45 foot 3 inch)

34шт.

4

1978661C1

BAR ASSY.

PLATE ASSEMBLY - scraper bar (26 foot 3 inch, 29 foot 5 inch)

22шт.

4

1978661C1

BAR ASSY.

PLATE ASSEMBLY - scraper bar (32 foot 7 inch)

24шт.

4

1978661C1

BAR ASSY.

PLATE ASSEMBLY - scraper bar (35 foot 9 inch)

26шт.

4

1978661C1

BAR ASSY.

PLATE ASSEMBLY - scraper bar (38 foot 11 inch)

30шт.

4

1978661C1

BAR ASSY.

PLATE ASSEMBLY - scraper bar (42 foot 1 inch)

32шт.

4

1978661C1

BAR ASSY.

PLATE ASSEMBLY - scraper bar (45 foot 3 inch)

34шт.

5

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex, 3/4 NC x 10 inch (26 foot 3 inch, 29 foot 5 inch)

88шт.

5

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex, 3/4 NC x 10 inch (32 foot 7 inch)

96шт.

5

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex, 3/4 NC x 10 inch (35 foot 9 inch)

104шт.

5

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex, 3/4 NC x 10 inch (38 foot 11 inch)

120шт.

5

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex, 3/4 NC x 10 inch (42 foot 1 inch)

128шт.

5

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex, 3/4 NC x 10 inch (45 foot 3 inch)

136шт.

6

473244R1

LOCK NUT,3/4"-10, GB

NUT - hex lock, two way, 3/4 inch NC

1шт.

12

2330057-27

STOP

BAR ASSEMBLY - stop (26 foot 3 inch, 29 foot 5 inch)

22шт.

12

2330057-27

STOP

BAR ASSEMBLY - stop (32 foot 7 inch)

24шт.

12

2330057-27

STOP

BAR ASSEMBLY - stop (35 foot 9 inch)

26шт.

12

2330057-27

STOP

BAR ASSEMBLY - stop (38 foot 11 inch)

30шт.

12

2330057-27

STOP

BAR ASSEMBLY - stop (42 foot 1 inch)

32шт.

12

2330057-27

STOP

BAR ASSEMBLY - stop (45 foot 3 inch)

34шт.

13

2330057-21

HOUSING

- channel (26 foot 3 inch, 29 foot 5 inch)

22шт.

13

2330057-21

HOUSING

- channel (32 foot 7 inch)

24шт.

13

2330057-21

HOUSING

- channel (35 foot 9 inch)

26шт.

13

2330057-21

HOUSING

- channel (38 foot 11 inch)

30шт.

13

2330057-21

HOUSING

- channel (42 foot 1 inch)

32шт.

13

2330057-21

HOUSING

- channel (45 foot 3 inch)

34шт.
