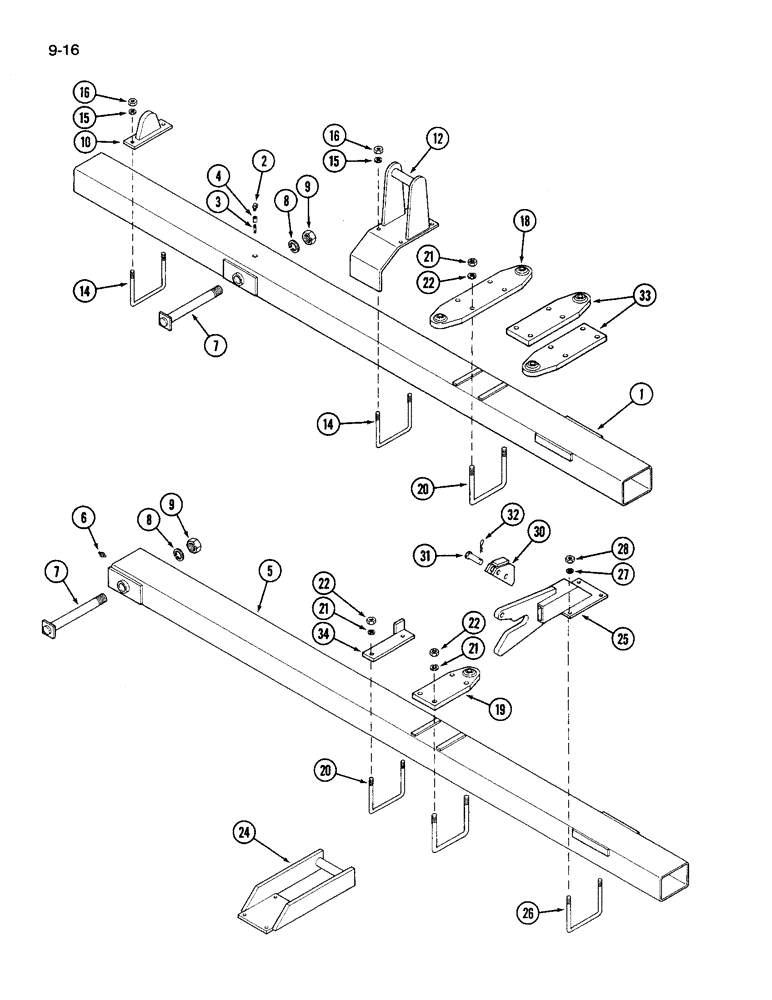

Запчасти Case IH 696 (9-16) - GANG FRAMES (09) - CHASSIS/ATTACHMENTS

1

1976127C1

TUBE

FRAME - gang, front (26 foot 3 inch)

2шт.

1

1976129C1

TUBE

FRAME - gang, front (29 foot 5 inch)

2шт.

1

1976131C1

TUBE

FRAME - gang, front (32 foot 7 inch)

2шт.

1

1976133C1

TUBE

FRAME - gang, fornt (35 foot 9 inch)

2шт.

1

1976135C1

TUBE

FRAME - gang, front (38 foot 11 inch) left

1шт.

1

1980846C1

FRAME

- gang, front (38 foot 11 inch) right

1шт.

1

1976137C1

TUBE

FRAME - gang, front (42 foot 1 inch) left

1шт.

1

1980847C1

FRAME

- gang, front (42 foot 1 inch) right

1шт.

1

1976139C1

TUBE

FRAME - gang, front (45 foot 3 inch) left

1шт.

1

1980848C1

FRAME

- gang, front (45 foot 3 inch) right

1шт.

2

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING - 1/8 inch PTF, 90 degree short lube

2шт.

3

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe, 1/8 x 1-1/2 inch

2шт.

4

105408

COUPLING,1/8" NPT

- pipe, 1/8 inch

2шт.

5

1976141C1

TUBE

FRAME - gang, rear (26 foot 3 inch)

2шт.

5

1976143C1

TUBE

FRAME - gang, rear (29 foot 5 inch)

2шт.

5

1976145C1

TUBE

FRAME - gang, rear (32 foot 7 inch)

2шт.

5

1976147C1

TUBE

FRAME - gang, rear (35 foot 9 inch)

2шт.

5

1976149C1

TUBE

FRAME - gang, rear (38 foot 11 inch)

2шт.

5

1976151C1

TUBE

FRAME - gang, rear (42 foot 1 inch)

2шт.

5

1976153C1

TUBE

FRAME - gang, rear (45 foot 3 inch)

2шт.

6

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING - grease, straight, 1/8 inch PT short

2шт.

7

2330012-01

BOLT

- gang frame pivot

4шт.

8

60254C1

LOCK WASHER,45.54mm ID x 66.5mm OD x 9.22mm Thk

- lock, 1-3/4 inch

4шт.

9

129-597

NUT,1 1/2"-6, G5, Hvy

- hex, 1-3/4 inch NC

4шт.

10

2330018-02

SKID/SHOE

SHOE ASSEMBLY - skid

2шт.

12

2700631-60

MOUNTING PARTS

LOCK ASSEMBLY - front gang

2шт.

14

2700045-09

U-BOLT,3/4" - 10 x 7 3/4"

- 3/4 inch

6шт.

15

492-11075

LOCK WASHER,3/4"

3/4"

12шт.

16

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

12шт.

18

2330028-04

LINK

ASSEMBLY - front (26 foot 3 inch, 29 foot 5 inch 32 foot 7 inch and 35 foot 9 inch)

2шт.

18

2330028-04

LINK

ASSEMBLY - front left (38 foot 11 inch, 42 foot 1 inch 45 foot 3 inch)

1шт.

19

2330028-08

LINK

ASSEMBLY - rear

2шт.

20

2700046-03

U-BOLT,7/8" - 9 x 8.27"

- 7/8 inch (26 foot 3 inch, 29 foot 5 inch 32 foot 7 inch and 35 foot 9 inch)

10шт.

20

2700046-03

U-BOLT,7/8" - 9 x 8.27"

- 7/8 inch (38 foot 11 inch, 42 foot 1 inch and 45 foot 3 inch)

12шт.

21

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

22

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

24

2330030-10

BAR

LOCK ASSEMBLY - rear gang, male

1шт.

25

1976159C1

ANCHOR

LOCK ASSEMBLY - rear gang, female

1шт.

26

2700045-09

U-BOLT,3/4" - 10 x 7 3/4"

- 3/4 inch

4шт.

27

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

28

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

30

1976163C1

LOCK

LEVER ASSEMBLY - gang lock

1шт.

31

22807R1

CLEVIS PIN

PIN - headed, 1 x 3 inch

2шт.

32

1978738C1

HAIR PIN COTTER

3/16"

2шт.

33

1980888C1

LINK

ASSEMBLY - front right (38 foot 11 inch, 42 foot 1 inch and 45 foot 3 inch)

2шт.

34

1980894C1

STOP

BAR ASSEMBLY - stop

2шт.
