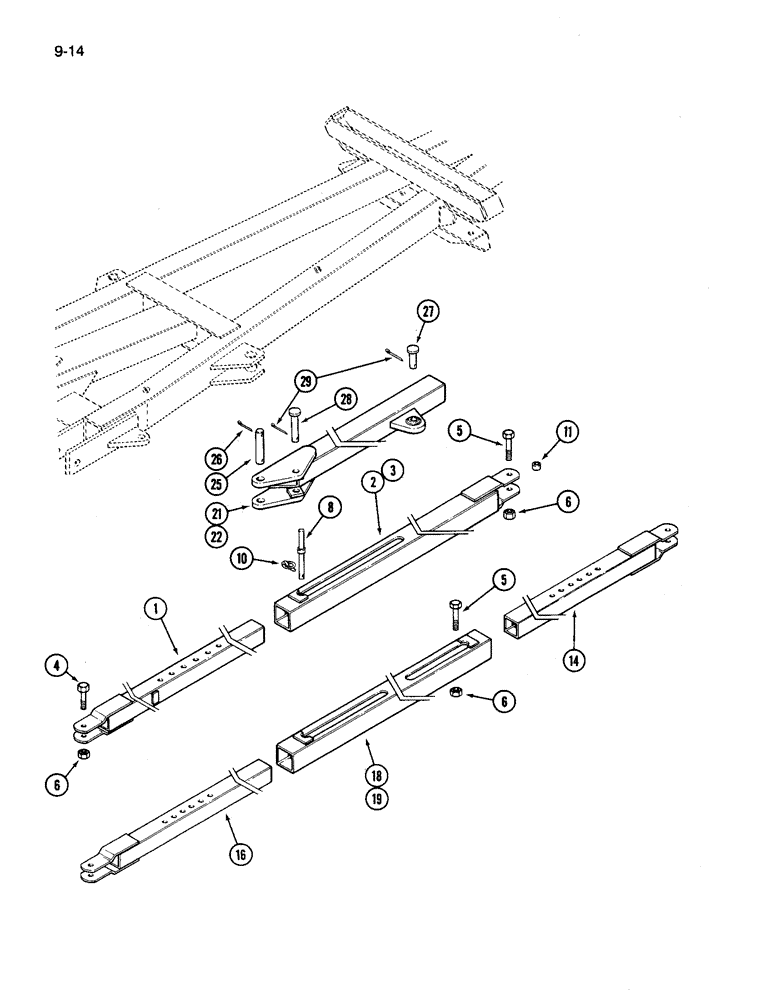

Запчасти Case IH 696 (9-14) - FOLDING DISK GANG LINKAGE 38 FOOT 11 INCH, 42 FOOT 11 INCH, AND 45 FOOT 3 INCH (09) - CHASSIS/ATTACHMENTS

1

1976460C1

TUBE

LINK ASSEMBLY - front inner

2шт.

2

1976472C1

TUBE

LINK ASSEMBLY - front outer, left

1шт.

3

1976473C1

TUBE

LINK ASSEMBLY - front outer, right

1шт.

4

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

- hex, 1 NC x 4 inch

6шт.

5

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

- hex, 1 NC x 5 inch

8шт.

6

24567R1

LOCK NUT,1"-8, GB

NUT - hex lock, 1 inch NC

14шт.

8

2330025-24

PIN

ASSEMBLY - link, pull

6шт.

10

A30338

PIN

- klik

6шт.

11

580342R1

SPACER,1" Pipe x 1/2"

- pipe, 1 x 1/2 inch

2шт.

14

1976459C1

TUBE

ASSEMBLY - center front, inner

2шт.

16

1976482C1

TUBE

ASSEMBLY - side inner, rear

2шт.

18

1976480C1

TUBE

ASSEMBLY - side outer, left

1шт.

19

1976481C1

TUBE

ASSEMBLY - side outer, right

1шт.

21

1976106C1

TUBE

ARM ASSEMBLY - pivot, left

1шт.

22

1980925C1

TUBE

ARM ASSEMBLY - pivot, right

1шт.

25

1973281C1

PIN

- pivot arm

2шт.

26

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

4шт.

27

28536R1

CLEVIS PIN,1 1/4" x 3 1/2"

PIN - clevis, 1-1/4 x 3-1/2 inch

2шт.

28

28539R1

CLEVIS PIN,1 1/4" x 6 1/4"

PIN - clevis, 1-1/4 x 6-1/4 inch

2шт.

29

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.
