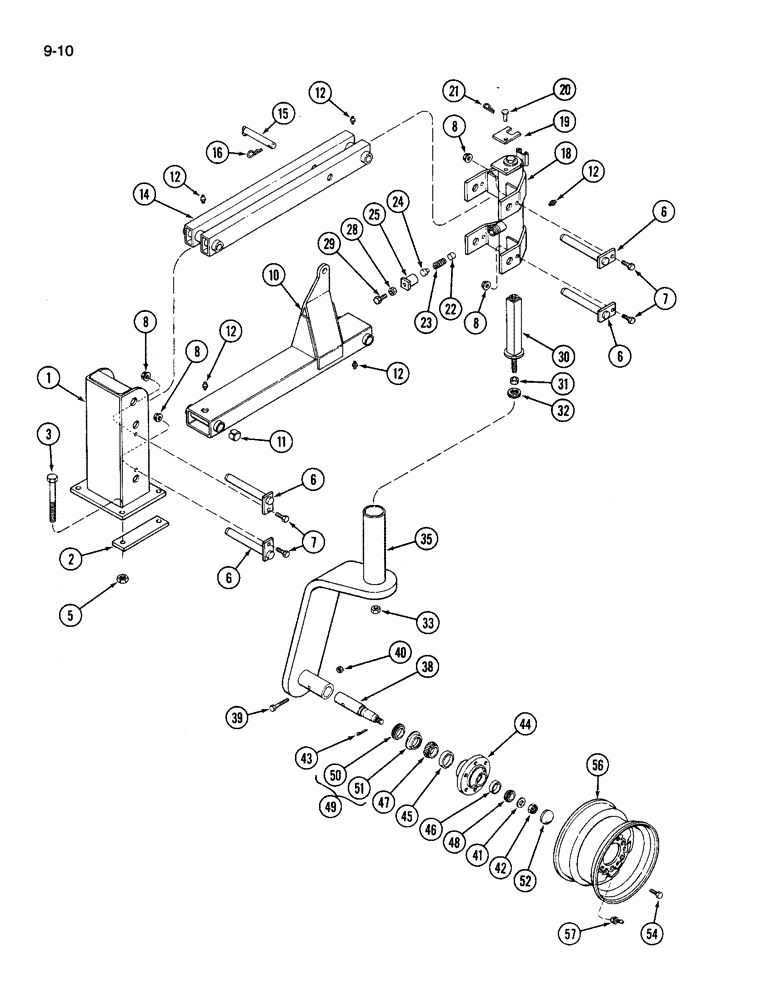

Запчасти Case IH 696 (9-10) - SWIVEL WHEELS (09) - CHASSIS/ATTACHMENTS

1

2330027-29

MAST ASSEMBLY

FRAME ASSEMBLY - swivel wheel

4шт.

2

2330027-16

BAR

- support mast assembly

8шт.

3

20930R1

BOLT,Hex, 1" - 8 x 9", Gr 5

- hex, 1 NC x 9 inch

16шт.

5

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

16шт.

6

1980545C1

PIN

- swivel wheel

16шт.

7

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

16шт.

8

9413969

NUT,5/8"-11, GB

- hex lock, 5/8 inch NC

16шт.

10

1976191C1

LINK

ASSEMBLY - lower

4шт.

11

64601C1

BUSHING

- tension

4шт.

12

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4-28 taper driver PT

24шт.

14

2330027-26

PIVOT

LINK - upper

4шт.

15

2330027-68

PIN ASSY.

PIN - swivel wheel

4шт.

16

471194R1

AXLE PIN

PIN - hair

4шт.

18

1976210C1

LINK

PIVOT - swivel wheel

4шт.

19

1976166C1

BAR

PLATE - lock

4шт.

20

22635R1

HEADED PIN,1/2" x 1 1/4"

PIN, HEADED, 1/2 x 1 1/4 inch

4шт.

21

480523R1

HAIR PIN COTTER

9/64" dia

4шт.

22

2330027-42

SPACER

DETENT - brass snubber

4шт.

23

2330027-74

SPRING

- detent

4шт.

24

2330027-75

DETENT

- round

4шт.

25

2330027-41

CAP

- detent

4шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

29

1973434C1

BOLT

- hex, special

4шт.

30

2700630-44

TUBE,11.5" Length

SCREW - inner

4шт.

31

2330027-17

SPACER

- bearing

4шт.

32

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING - thrust

4шт.

33

473244R1

LOCK NUT,3/4"-10, GB

NUT - hex lock, two way, 3/4 inch NC

4шт.

35

1976114C1

LINK

SWIVEL - wheel, left

2шт.

35

1976115C1

LINK

SWIVEL - wheel, right (Shown)

2шт.

38

96227C1

SPINDLE

- wheel

4шт.

39

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch, grade 2

4шт.

40

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

41

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, hardened

4шт.

42

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

4шт.

43

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

4шт.

44

606468R21

HUB

ASSEMBLY - wheel

4шт.

45

663558R1

BEARING CUP

CUP - inner bearing, 2-57/64 inch OD

1шт.

46

651817R1

BEARING CUP

CUP - outer bearing

1шт.

47

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - inner bearing, 1-5/8 inch ID

4шт.

48

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - outer bearing

4шт.

49

606556R91

OIL SEAL

SEAL - wheel hub oil

4шт.

50

606469R91

OIL SEAL

SEAL - hub oil

1шт.

51

606470R1

SLEEVE

- Oil seal wear

1шт.

52

663906R1

CAP

- wheel hub

4шт.

54

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

24шт.

56

1277504C1

RIM

WHEEL - 15 inch (For 12.5 x 15 tire)

4шт.

57

810769C1

VALVE

- tubeless tire steel

4шт.
