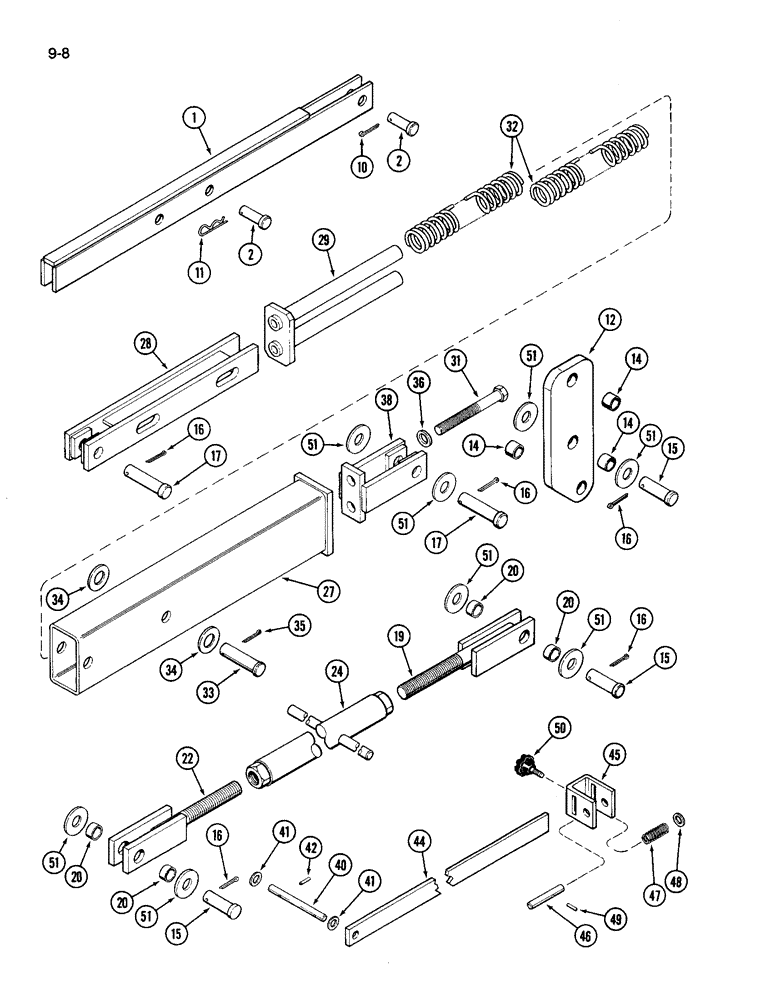

Запчасти Case IH 696 (9-08) - MAIN WHEEL SUPPORT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
2330034-12
LINK
- transport
1шт.
2
25419R1
PIN
- headed, 1 x 2-3/4 inch
2шт.
10
32-1624
COTTER PIN,1/4" x 1 1/2"
PIN, SPLIT (COTTER), 1/4" x 1 1/2"
1шт.
11
471194R1
AXLE PIN
PIN - hair
1шт.
12
1978639C1
BAR
- level pivot
1шт.
14
112886C1
BUSHING
- tension
3шт.
15
28396R1
HEADED PIN,1 1/4" x 3 1/2"
PIN - headed, 1-1/4 x 3-1/2 inch
3шт.
16
32-1624
COTTER PIN,1/4" x 1 1/2"
PIN, SPLIT (COTTER), 1/4" x 1 1/2"
5шт.
17
28538R1
CLEVIS PIN,1 1/4" x 5"
PIN - clevis, 1-1/4 x 5 inch
2шт.
19
1978638C1
ROD
SCREW ASSEMBLY - leveling, right
1шт.
20
1268053C1
BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L
- screw assembly, tension
2шт.
22
1978637C1
ROD
SCREW ASSEMBLY - levelling, left (Includes Ref 20)
1шт.
24
2700630-04
LINK
- levelling, adjustment
1шт.
1978683C1
SPRING
LINK ASSEMBLY - spring
1шт.
27
1973123C1
TUBE
BODY - spring link
1шт.
28
1973126C1
BAR
LINK - spring
1шт.
29
1973143C1
TUBE
LINK - spring
1шт.
31
1973185C1
BOLT
- hex special, 1 x 8-1/2 inch
2шт.
32
60148C1
SPRING
- link
2шт.
33
28538R1
CLEVIS PIN,1 1/4" x 5"
PIN - clevis, 1-1/4 x 5 inch
2шт.
34
495-21138
WASHER,1 1/4"
- flat, 1-1/4 x 3 x 11/54 inch
4шт.
35
432-1632
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
2шт.
36
390312C1
WASHER
- hardened
2шт.
38
1973129C1
BAR
CONNECTOR - spring link
1шт.
40
1978880C1
PIN
- depth control
1шт.
41
495-81039
WASHER,25/32" x 1 1/4" x .120"
- flat, 25/32 x 1-1/4 x 7/64 inch
2шт.
42
21830R1
LOCK PIN,3/16" x 1 1/4", Slotted
Pin, 3/16" x 1 1/4", Slotted
3шт.
44
1978876C1
BAR
- depth control
1шт.
45
1978877C1
CHANNEL
- depth adjuster
1шт.
46
1978879C1
PIN
- poppet depressor
1шт.
47
1263125C1
SPRING
- return
1шт.
48
495-81039
WASHER,25/32" x 1 1/4" x .120"
- flat, 25/32 x 1-1/4 x 1/8 inch
1шт.
49
21830R1
LOCK PIN,3/16" x 1 1/4", Slotted
Pin, 3/16" x 1 1/4", Slotted
1шт.
50
109430C1
KNOB
- adjuster
1шт.
51
495-21138
WASHER,1 1/4"
- flat, 1-3/8 x 3 x 5/32 inch
8шт.
Выбрано товаров: 35
