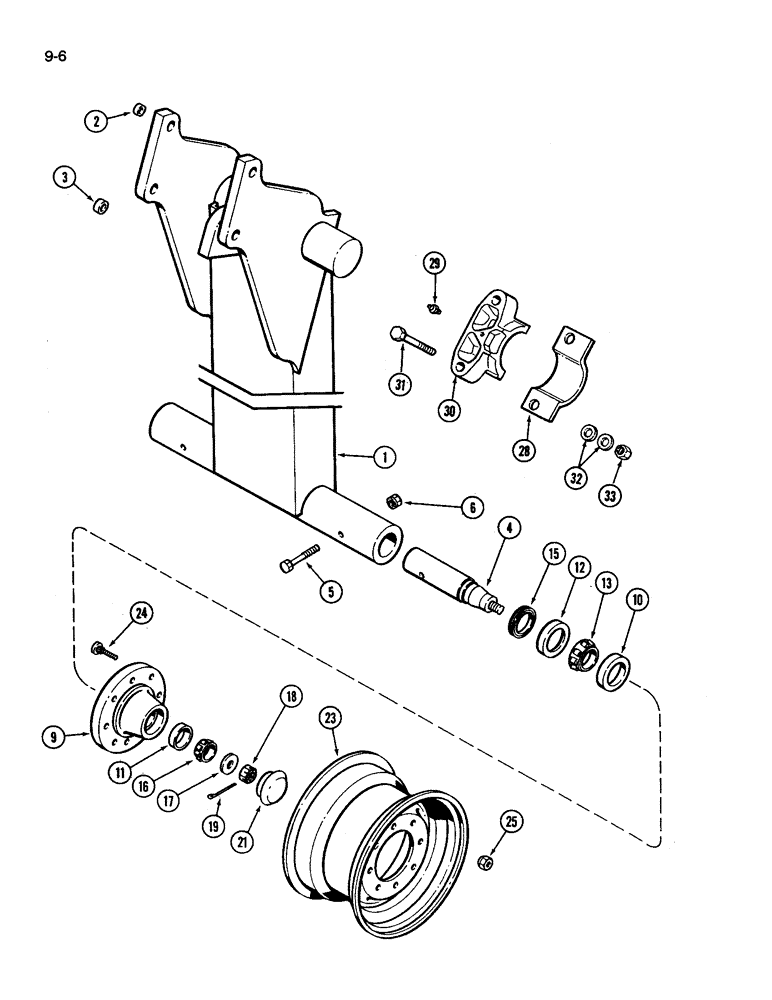

Запчасти Case IH 696 (9-06) - MAIN WHEEL (09) - CHASSIS/ATTACHMENTS

1

1976108C1

SHAFT

AXLE ASSEMBLY - main wheel

1шт.

2

64601C1

BUSHING

- tension

4шт.

3

112886C1

BUSHING

- tension

1шт.

4

131779C1

SPINDLE

- wheel

2шт.

5

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

2шт.

6

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

9

169293C11

HUB

ASSEMBLY - wheel

2шт.

10

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - inner bearing, 3-35/64 inch OD

2шт.

11

663558R1

BEARING CUP

CUP - outer bearing, 2-57/64 inch OD

2шт.

12

169328C1

SLEEVE

RING - oil seal wear

2шт.

13

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

CONE - inner bearing, 2-5/32 inch ID

2шт.

15

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

- oil

2шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - outer bearing, 1-5/8 inch ID

2шт.

17

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

- flat, 1-1/32 x 2-1/4 x 1/4 inch

2шт.

18

425-1316

NUT,1"-14, G5

NUT - hex slotted, 1 inch NF

2шт.

19

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

21

560950R1

HUB CAP

CAP - hub

2шт.

23

2330051-12

WHEEL

- 16 X 14

2шт.

24

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

- fluted hub, 5/8 NF x 2-9/16 inch

16шт.

25

554480R1

WHEEL NUT

- hex special, 5/8 inch NF

16шт.

28

1973483C1

BAR

CAP - rockshaft bearing

2шт.

29

87414

LUBE NIPPLE,1/4" - 28

FITTING - lube, 1/4 inch straight

4шт.

30

1976452C1

BEARING HALF

- rockshaft

2шт.

31

326-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

4шт.

32

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

8шт.

33

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.
