Запчасти Case IH 696 (9-04) - HITCH (09) - CHASSIS/ATTACHMENTS

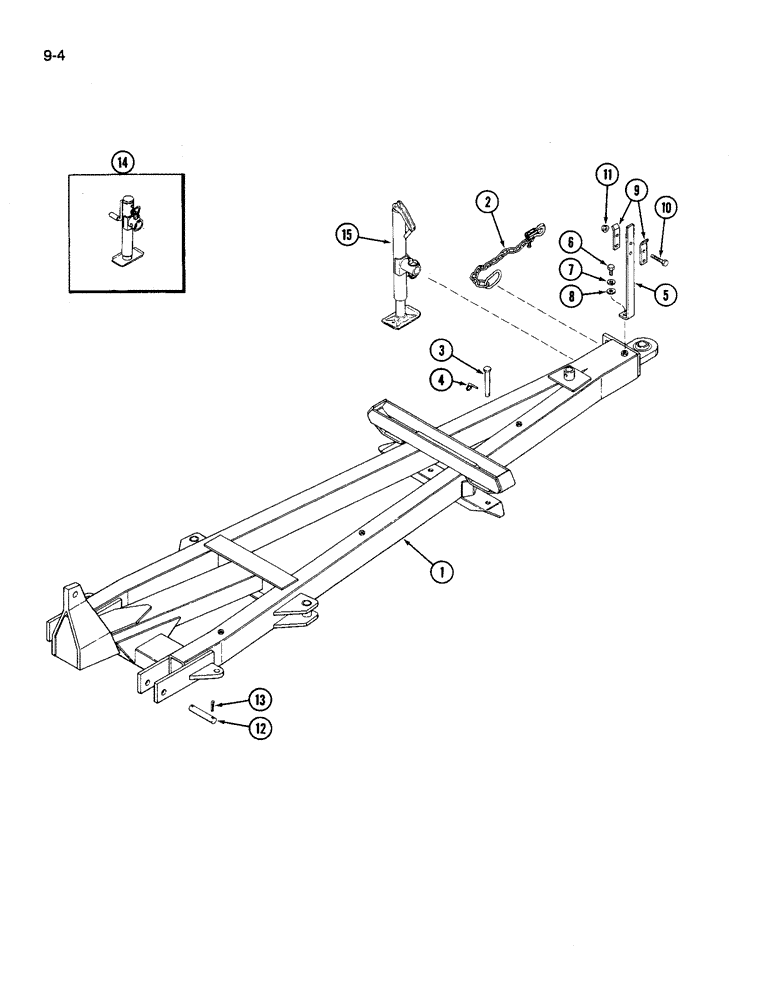

Схема запчастей Case IH 696 - (9-04) - HITCH (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

1973430C2

HITCH ASSY, TRAILER

HITCH ASSEMBLY - main

1шт.

RE IT NO. 1 - HITCH ASM. IF DEALER IS LOOKING FOR FRONT BAR/PLATE THAT THE UNIBALL & UNIBALL HSG GO INTO, THERE IS A WHOLE ASM FOR THESE THREE PCS. IT IS PART NUMBER 2330009-07. THE UNIBALL ONLY IS 40-140 AND THE UNIBALL HOUSING IS 40-139. ALL ARE GOOD PART NUMBERS. PAT HOOD 11/20/96

1шт.

2

822544C2

CHAIN (AG)

CHAIN - safety

1шт.

3

651029R1

HEADED PIN,1" x 6 5/8"

PIN - headed, 1 x 6-5/8 inch

2шт.

4

A30338

PIN

- klik

2шт.

5

58643C1

SUPPORT

- hydraulic hose

1шт.

6

424-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 2

- hex, 3/4 NC x 1-1/4 inch

1шт.

7

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 1/8 inch

1шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

9

58644C1

HOLDER

- hydraulic hose

2шт.

10

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch

2шт.

11

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

12

1973435C1

PIN

- hitch

2шт.

13

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

14

135061C91

JACK

ASSEMBLY - side crank (Alternate with 119354C1)

1шт.

14

119354C1

JACK

ASSEMBLY - side crank (Alternate with 135061C91)

1шт.

15

1980965C1

JACK ASSY.

JACK ASSEMBLY - top crank

1шт.

Выбрано товаров: 17
