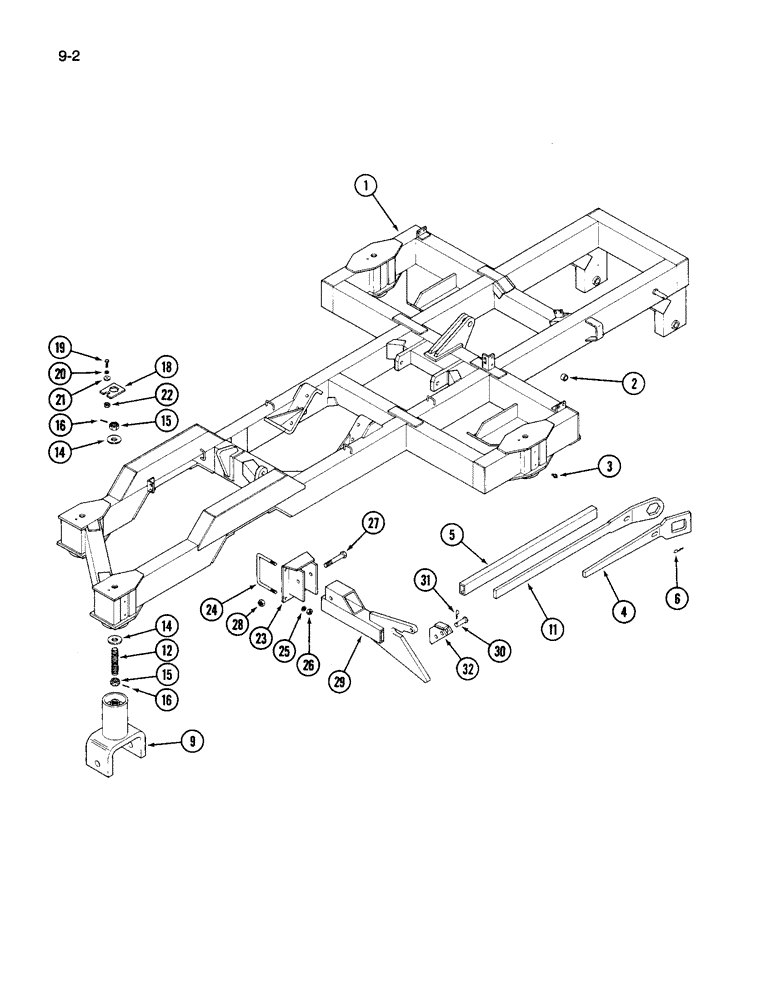

Запчасти Case IH 696 (9-02) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

1978974C1

FRAME

ASSEMBLY - main

1шт.

2

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

- lug assembly, tension

2шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch taper drive thread

8шт.

4

2330005-15

SPECIAL WRENCH

WRENCH - closed end, special

1шт.

5

2330005-15

SPECIAL WRENCH

HANDLE - wrench

1шт.

6

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

9

1973498C1

TUBE

ASSEMBLY - gang bars pivot

4шт.

11

2330005-13

SPECIAL WRENCH

WRENCH - closed end, special

1шт.

12

2330003-19

ROD

PIN - threaded

4шт.

14

26584R1

WASHER

- flat, 1-5/8 x 3-1/2 x 5/32 inch

8шт.

15

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - slotted, 1-1/2 inch

8шт.

16

576482R1

LOCK PIN,5/16" x 2", Slotted

8шт.

18

2330003-21

BAR

STOP - gang pivot tube, bolt

4шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

21

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

22

425-1010

NUT,5/8"-11, G5

4шт.

23

2330023-02

LOCK

BRACKET ASSEMBLY - gang lock

2шт.

24

2700045-01

BOLT

U-BOLT - 3/4 inch NC

4шт.

25

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

26

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

27

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch

2шт.

28

131-698

LOCK NUT,1"-8, GB

NUT - hex lock, 1 inch NC

2шт.

29

1976155C1

PIVOT

ARM ASSEMBLY - pivot, gang linkage

2шт.

30

22807R1

CLEVIS PIN

PIN - headed, 1 x 3 inch

4шт.

31

1978738C1

HAIR PIN COTTER

3/16"

4шт.

32

1976163C1

LOCK

LEVER ASSEMBLY - gang lock

2шт.
