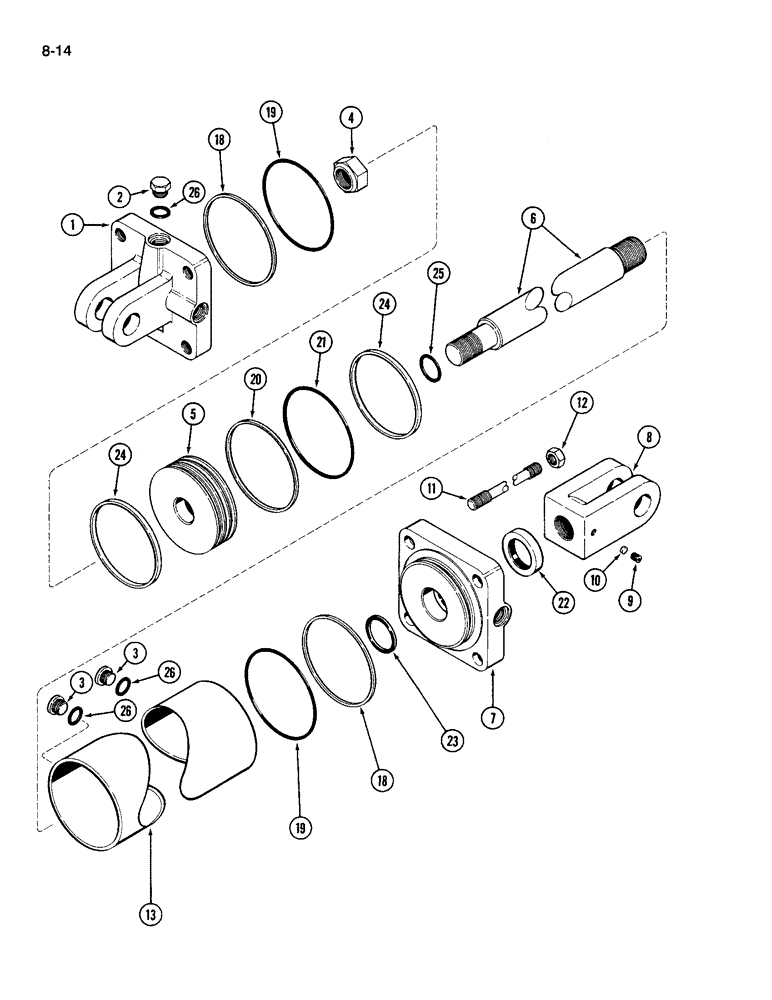

Запчасти Case IH 696 (8-14) - FOLDING DISK HYDRAULIC CYLINDER 5 INCH BORE X 12 INCH STROKE (08) - HYDRAULICS

1973316C1

CYLINDER

ASSEMBLY - hydraulic, 5 x 12

1шт.

1

1286381C1

HEAD

- rear

1шт.

2

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

3

224582C1

PLUG

- hex socket, 3/4-16 inch, o-ring boss

2шт.

4

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex lock, 1-1/4 inch NF, Grade 8

1шт.

5

1978009C1

PISTON

- cylinder

1шт.

6

1978010C1

ROD

- piston

1шт.

7

1286380C1

HEAD

- cylinder, front

1шт.

8

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

9

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex sockt headless, 3/8 NC x 3/8 inch

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

11

92858C1

BOLT,3/4" - 10 x 17.812"

STUD - tie, cylinder

4шт.

12

25-1012

NUT,3/4"-10, G5

4шт.

13

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

1978011C1

SEAL KIT

- seal

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - u-cup, rear head

1шт.

23

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

24

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

25

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.
