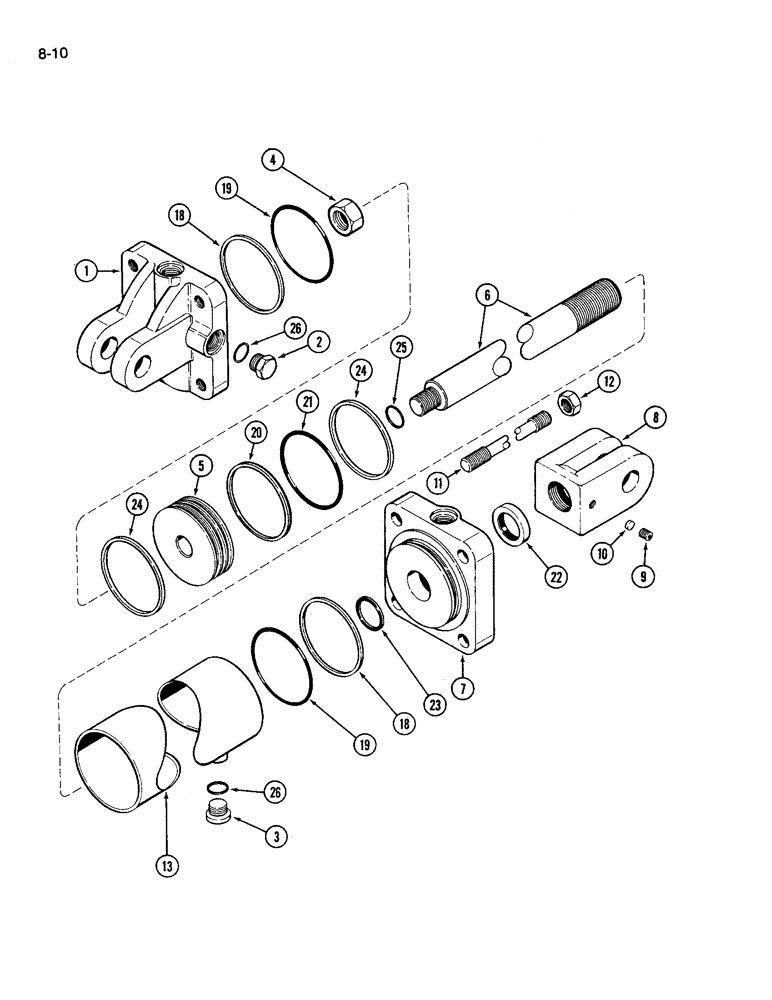

Запчасти Case IH 696 (8-10) - DEPTH CONTROL HYDRAULIC CYLINDER 3-3/4 INCH BORE X 12 INCH STROKE (08) - HYDRAULICS

1971863C1

CYLINDER

ASSEMBLY - hydraulic, 3-3/4 x 12

1шт.

1

1285799C1

HEAD

- rear

1шт.

2

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

3

224582C1

PLUG

- hex socket, 3/4-16 inch, o-ring boss

1шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

5

92520C1

PISTON

- cylinder

1шт.

6

93314C1

ROD

- piston

1шт.

7

1285798C1

END

HEAD - front

1шт.

8

1267057C1

CLEVIS,3/8" - 16

- rod

1шт.

9

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

11

93338C1

THREADED ROD,5/8" - 11 x 17.189"

STUD - tie, cylinder

4шт.

12

25-1010

NUT,5/8"-11, G5

4шт.

13

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

80115C2

SEAL KIT

KIT - seal

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - u-cup, rear head

1шт.

23

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

24

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

25

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.
