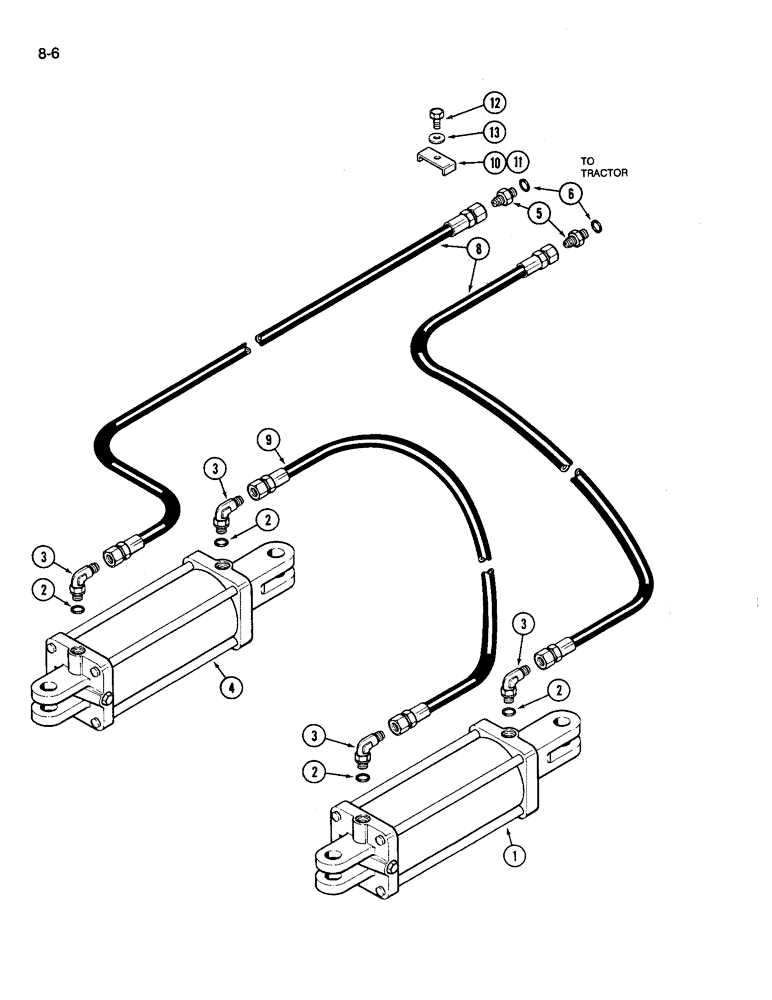

Запчасти Case IH 696 (8-06) - FRAME FOLDING HYDRAULICS (08) - HYDRAULICS

1

1973316C1

CYLINDER

ASSEMBLY - hydraulic, 5 x 12 (See page 8-15)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

3

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, 3/4-16 flared x 3/4-16 inch o-ring boss

4шт.

4

1973317C1

CYLINDER

ASSEMBLY - slave, 4-3/4 x 12 (See Page 8-17)

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - short swivel, 3/4-16 thread

2шт.

8

91205C1

HYDRAULIC HOSE,12.70 mm ID x 5335.00 mm, SAE 100R1

2шт.

9

90877C1

HYDRAULIC HOSE

HOSE - hydraulic, 60 inch long

1шт.

10

129886C2

CLAMP

- hose (26 foot 3 inch, 29 foot 5 inch, 32 foot 7 inch and 35 foot 9 inch)

9шт.

10

129886C2

CLAMP

- hose (38 foot 11 inch, 42 foot 11 inch and 45 foot 3 inch)

13шт.

11

129888C2

CLAMP

- hose

2шт.

12

424-816

BOLT,Hex, 1/2" - 13 x 1", Gr 2

- hex, 1/2 NC x 1 inch, grade 1 (26 foot 3 inch, 29 foot 5 inch, 32 foot 7 inch and 35 foot 9 inch)

11шт.

12

424-816

BOLT,Hex, 1/2" - 13 x 1", Gr 2

- hex, 1/2 NC x 1 inch, Grade 1 (38 foot 11 inch, 42 foot 11 inch and 45 foot 3 inch)

15шт.

13

495-11053

WASHER,1/2", SAE

hardened (26 foot 3 inch, 29 foot 5 inch, 32 foot 7 inch and 35 foot 9 inch) 1/2", SAE

11шт.

13

495-11053

WASHER,1/2", SAE

hardened (38 foot 11 inch, 42 foot 11 inch and 45 foot 3 inch) 1/2", SAE

15шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2 inch OD

1шт.
