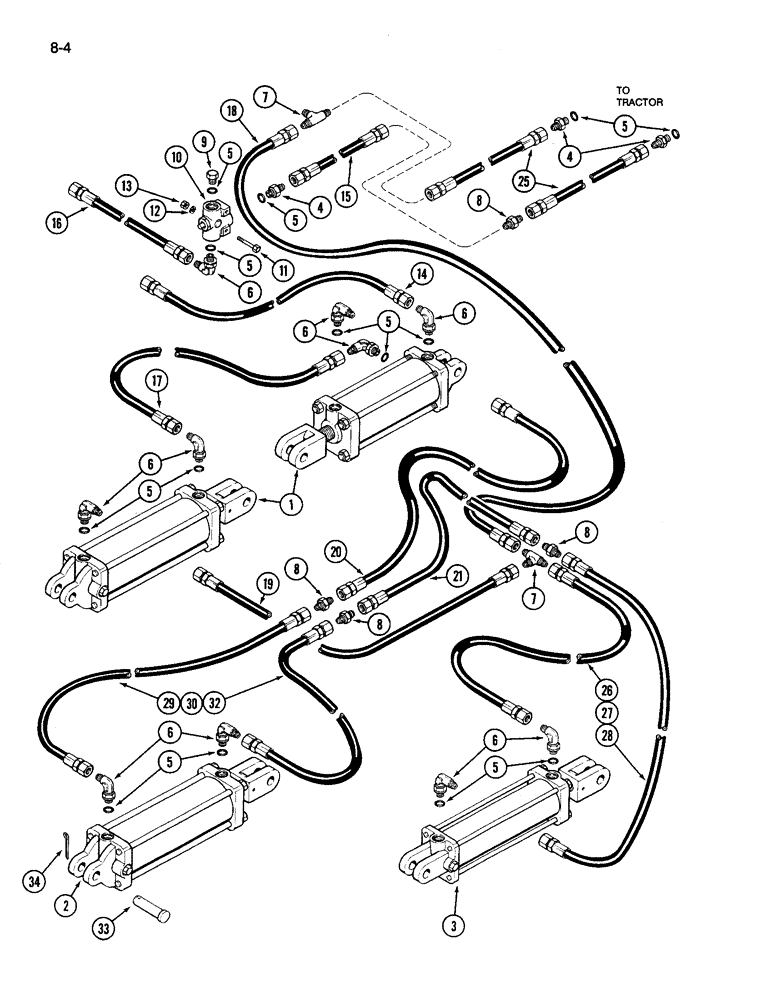

Запчасти Case IH 696 (8-04) - DEPTH CONTROL HYDRAULICS 38 FOOT 11 INCH, 42 FOOT 1 INCH AND 45 FOOT 3 INCH (08) - HYDRAULICS

1

1980152C1

CYLINDER

ASSEMBLY - hydraulic, 4 x 12 (See Page 8-13)

3шт.

2

1971863C1

CYLINDER

ASSEMBLY - hydraulic, 3-3/4 x 12 (See Page 8-11)

2шт.

3

1976811C1

CYLINDER

ASSEMBLY - hydraulic, 3-1/2 x 12 (See Page 8-9)

2шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - short swivel, 3/4-16 thread

3шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

18шт.

6

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, 3/4-16 flared x 3/4-16 inch o-ring boss

17шт.

7

9402982

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flared

2шт.

8

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

CONNECTOR - 3/4-16 inch flared

8шт.

9

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

10

1980248C1

VALVE

ASSEMBLY - remote depth control

1шт.

1980338C1

SEAL KIT

KIT - repair, o-ring seal

1шт.

11

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

14

91199C1

HOSE ASSY.

HOSE - hydraulic, 13 inch long

1шт.

15

90875C1

HYDRAULIC HOSE

HOSE - hydraulic, 29 inch long

1шт.

16

1336925C1

HYDRAULIC HOSE

HOSE - hydraulic, 33 inch long

1шт.

17

90882C1

HYDRAULIC HOSE,12.70 mm ID x 1195.00 mm, SAE 100R1

1шт.

18

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - hydraulic, 50 inch long

2шт.

19

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

2шт.

20

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

21

1337376C1

HYDRAULIC HOSE

HOSE - hydraulic, 140 inch long

2шт.

25

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm

2шт.

26

91205C1

HYDRAULIC HOSE,12.70 mm ID x 5335.00 mm, SAE 100R1

4шт.

27

1978105C1

HYDRAULIC HOSE

HOSE - hydraulic, 225 inch long (45 foot 3 inch only)

4шт.

28

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

4шт.

29

1978106C1

HOSE

- hydraulic, 240 inch long (38 foot 11 inch only)

4шт.

30

1978107C1

HOSE

- hydraulic, 250 inch long (42 foot 1 inch only)

4шт.

32

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm

4шт.

33

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

PIN - clevis, 1 x 3-1/2 inch

14шт.

34

32-1024

COTTER PIN,5/32" x 1 1/2"

Pin. Split (Cotter), 5/32 x 1 1/2 inch

14шт.
