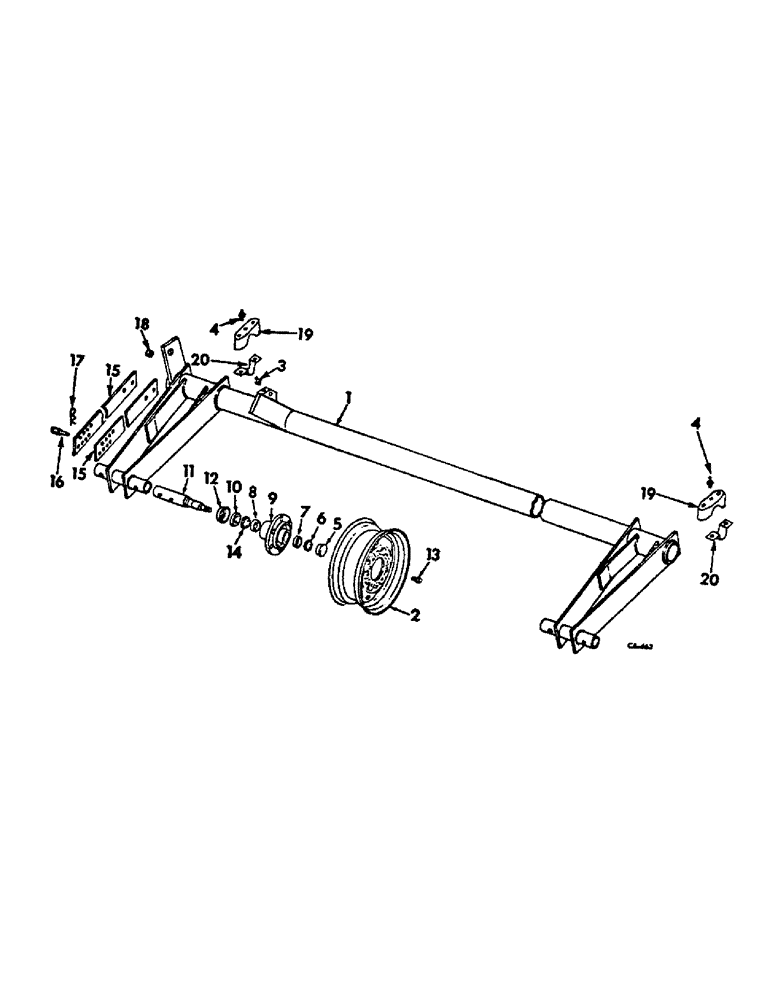

Запчасти Case IH 610 (AC-08) - AXLE AND WHEELS

1

540202R2

AXLE ASSY, wheel

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 znd hex-hd cap

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

4шт.

2

463034R1

RIM

WHEEL, 14 x 5KB, for 7.60 x 14 tires

4шт.

2

481344R91

WHEEL

DISK & RIM ASSY, 14 x 8KB dual, for 9.50-14 6 ply W1 tires

1шт.

2

622192R91

WHEEL

DISK & RIM ASSY, 15 x 5K dual, for 7.60-15 8 ply W1 tires

1шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

1шт.

4

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28NS 45 deg angle lub

2шт.

5

663908R1

CAP

hub

4шт.

6

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Roller, Optional w/56501C91

4шт.

6

56501C91

BEARING

CONE, roller brg, optional w/371882R91

4шт.

7

371883R1

BEARING CUP

Roller, outer, optional w/56502C1

4шт.

7

56502C1

BEARING

CUP, roller brg, optional w/371883R1

4шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Roller inner, Optional w/56505C1

4шт.

8

56505C1

CUP

roller brg, optional w/618024R1

4шт.

9

465493R1

HUB

wheel

4шт.

10

667599R91

OIL SEAL

oil

4шт.

11

478375R1

SPINDLE

wheel

4шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x .1-1/4 x 11 ga C-Z

4шт.

69442D

NUT

3/4-16 slt hex. jam

4шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

12

667564R1

RING

wear sleeve

4шт.

13

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

24шт.

14

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, roller brg inner, optional w/56504C91

4шт.

14

56504C91

CONE

roller brg, optional w/618023R91

4шт.

15

540207R1

BAR, transport

2шт.

16

541493R1

PIN ASSY

1шт.

17

591107R1

COTTER PIN

quick attachable cot.

1шт.

18

542111R1

BUSHING

1шт.

271817

CLIP,Hex, 7/8" - 9 x 2 1/2", Gr 5

SCREW, 7/8-9 x 2-1/2 znd hex-hd cap

1шт.

464024

NUT, 7/8-9 C-Z top lock jam

1шт.

19

491921R1

CYLINDER END CAP

BEARING, wheel shaft

2шт.

20

540979R1

BEARING CAP,3"

CAP, wheel shaft bearing

2шт.

271782

CASE,Hex, 3/4" - 10 x 4 3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.
