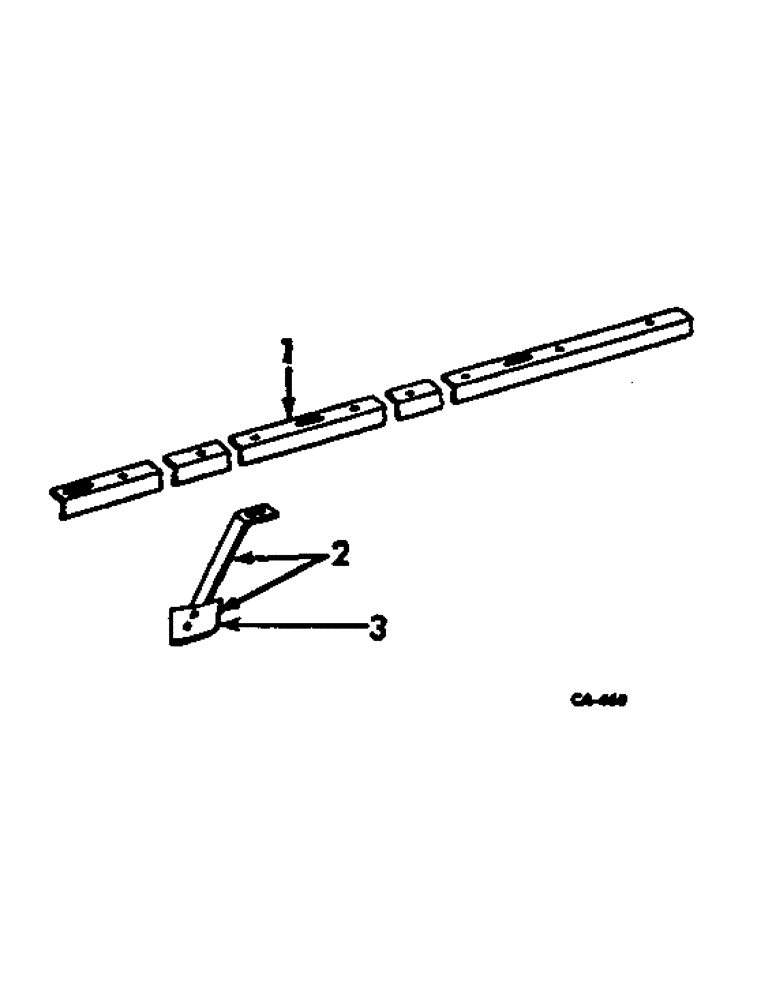

Запчасти Case IH 610 (AC-05) - SCRAPER AND SCRAPER ANGLES

1

540485R1

ANGLE, scraper left rear, 1 for units B and C

1шт.

1

540486R1

ANGLE, scrape left front, 1 for unit C

1шт.

1

540484R1

ANGLE, scraper left front, 1 for units A and B

1шт.

1

540483R1

ANGLE, scraper left rear, 1 for unit A

1шт.

1

540242R1

ANGLE, scraper right front, 1 for units B and C

1шт.

1

540246R1

ANGLE, scraper right rear, 1 for unit C

1шт.

1

540243R1

ANGLE, scraper right rear, 1 for units A and B

1шт.

1

540245R1

ANGLE, scraper right front, 1 for unit A

1шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 znd sq-nk crg, 8 for units A and B, 10 for unit C

1шт.

608595R1

NUT

5/8-11 C-Z hex. lock 8 for units A and B, 10 for unit C

1шт.

2

483139R91

BLADE

SCRAPER ASSY, LH, 16 for unit A, 19 for unit B, 22 for unit C

1шт.

2

483140R91

BLADE

SCRAPER ASSY, RH, 15 for unit A, 18 for unit B, 21 for unit C

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 C-Z type 2 sq-nk crg, 31 for unit A, 37 for unit B, 43 for unit C

1шт.

120384

WASHER,1/2"

LOCK, , 31 for unit A, 37 for unit B, 43 for unit C 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 31 for unit A; 37 for unit B; 43 for unit C 1/2"-13, G5

1шт.

3

483096R1

STRAP

BLADE, scraper,1 per scraper assy

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd solid, 2 per blade

1шт.
