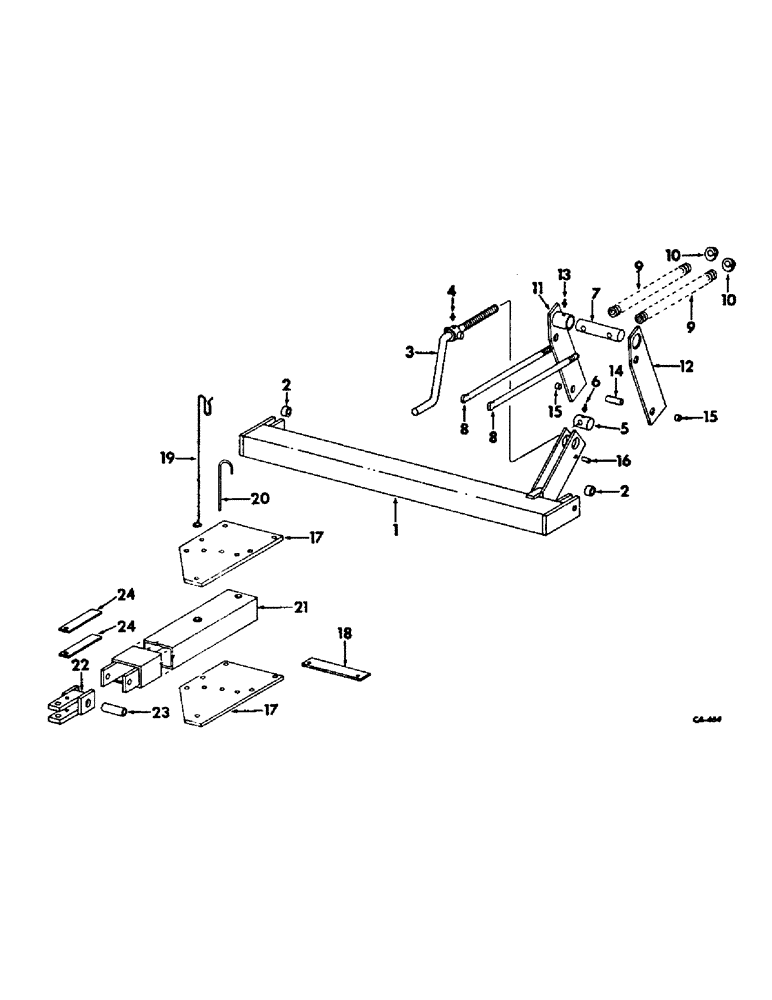

Запчасти Case IH 610 (AC-03) - HITCH

1

540209R1

DRAWBAR ASSY

1шт.

2

540223R1

BUSHING, hitch pivot

2шт.

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

SCREW, 7/8-9 x 3-1/2 znd hex-hd cap

2шт.

131047

WASHER,7/8"

7/8"

2шт.

9849633

NUT,1"-8, G5

7/8-9 C-Z hex.

2шт.

3

468531R12

SCREW

ASSY

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

5

468533R1

LINK

SWIVEL, crank

1шт.

6

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg angle lub

1шт.

7

489127R1

PIN,50.8mm OD x 208.28mm L

PIVOT, spring guide

1шт.

8

468535R2

GUIDE

spring

2шт.

426899

NUT,Jam, 1"-8, G5

1-8 C-Z hex. jam

4шт.

21162R1

WASHER

2 x 1-1/32 x 7 ga C-Z

2шт.

9

481285R1

VALVE SPRING

SPRING, hitch

2шт.

10

468537R1

SPRING SEAT

BUSHING, hitch spring

2шт.

11

540220R1

ARM

ASSY, adjustable

1шт.

12

540221R1

BAR

adjustable arm

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTNG, 1/4-28NF str lub, adj arm assy

1шт.

14

582542R1

SPACER,3/4" Pipe x 1 1/4"

3/4 x 1-1/4 pipe

1шт.

15

468530R1

SPACER,3/4" Pipe x 9/16"

BUSHING, 3/4 x 9/16 pipe

2шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 znd hex-hd cap

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

16

K11064

SPACER,3/8" Pipe x 1 1/4"

3/8 x 1-1/4 pipe

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 2-3/4 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

1шт.

17

540222R1

PLATE

dial

2шт.

21700R1

BOLT,Hex, 3/4" - 10 x 6 1/4", Gr 5

SCREW, 3/4-10 x 6-1/4 znd hex-hd cap

3шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW, 3/4-10 x 6-1/2 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

280954

NUT,3/4"-10, G5

5шт.

18

540479R1

SHIM, hitch

1шт.

19

651793R1

SUPPORT

flexible hose

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 znd hex-hd cap

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z hex. lock

1шт.

20

540482R1

PIN, hitch

1шт.

21

540214R1

TONGUE ASSY

1шт.

20102R1

SCREW,Hex, 7/8"-9 x 6 1/2", G5

7/8-9 x 6-1/2 znd hex-hd cap

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

22

540218R1

CLEVIS ASSY, hitch

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap

1шт.

608595R1

NUT

5/8-11 C-Z Gripco hex.

1шт.

23

540224R1

BUSHING, hitch clevis

1шт.

24

540475R1

SPRING

clevis

2шт.
