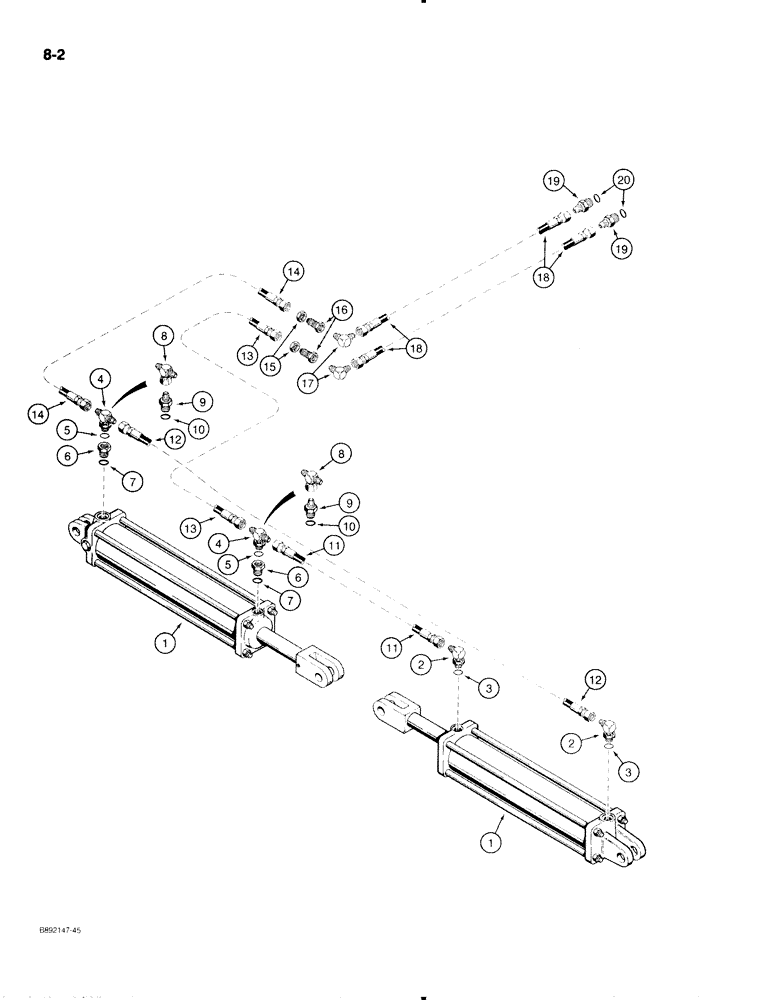

Запчасти Case IH 596 (8-02) - HYDRAULIC SYSTEM, WING FOLDING CYLINDERS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CYLINDER ASSEMBLY - 4 inch ID x 16 inch stroke, 1/2 inch PT ports, wing folding, for correct assembly and components, see Figure 8-08 and 8-10.
2шт.
1
REF
INSTRUCTION
CYLINDER ASSEMBLY - 5 inch ID x 16 inch stroke, 1/2 inch PT ports, wing folding, for correct assembly and components, see Figure 8-12 and 8-14.
2шт.
1
84992C91
CYLINDER ASSY.
CYLINDER ASSEMBLY - 6 inch ID x 16 inch stroke, 1/2 inch PT ports, see Figure 8-16.
2шт.
28537R1
CLEVIS PIN,1 1/4" x 3 3/4"
PIN - clevis, 1-1/4 x 3-3/4 inch
4шт.
132-313
COTTER PIN,1/4" x 2"
PIN, Split (Cotter), 1/4" x 2"
4шт.
2
218-5128
ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 9/16-18 flared x 3/4-16 inch O-ring boss, If used
2шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
2
218-5281
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
- 90 degree, 9/16-18 flared x 7/8-14 inch O-ring boss, if used
2шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
2
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 90 degree, 9/16-18 flared x 9/16-18 inch O-ring boss, if used
2шт.
4
1284157C1
TEE,9/16"-18, 37 Degree x 3/4"-16, O-Ring Br
- 9/16-18 flared x 3/4-16 inch male O-ring boss, if used
2шт.
5
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
4
218-5182
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 9/16-18 flared x 9/16-18 male O-ring boss, if used
2шт.
6
1252129C1
ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB
ADAPTER - 3/4-16 inch male O-ring boss x 7/8-14 inch female O-ring boss, if used
1шт.
7
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
6
1252130C1
ADAPTER
- 3/4-16 inch male O-ring boss x 9/16-18 inch female O-ring boss, if used
1шт.
7
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
8
218-836
TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br
- 9/16-18 swivel branch x 9/16-18 flare, if used
2шт.
9
218-5354
HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring
FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, If used
2шт.
10
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
11
129908C1
HYDRAULIC HOSE
HOSE - hydraulic, 55 inch long
1шт.
12
139517C1
HYDRAULIC HOSE
HOSE - hydraulic, 80 inch long
1шт.
13
1254526C2
HOSE ASSY.
HOSE - hydraulic, 135 inch long
1шт.
14
129768C1
HYDRAULIC HOSE
HOSE - hydraulic, 115 inch long
1шт.
15
9403529
TUBE NUT,37 Degree, 7/8"-14, Type B
NUT - 7/8-14 inch flared, used with 9403402 reducer, if used
2шт.
16
9403402
REDUCER,37 Degree, 5/8" x 1/4" Tube
- 7/8-14 inch flared to 9/16-18 inch flared, used with 9403529 nut, if used
2шт.
17
9402942
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
- 90 degree, 9/16-18 inch flared, if used
2шт.
17
9402944
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
- 90 degree, 7/8-14 inch flared, if used
2шт.
18
147886C1
HOSE,0.50" ID x 175.00", SAE 100R7
- 180 inch long, 9/16-18 inch flared female fittings, if used
2шт.
18
129758C1
HOSE - 180 inch long, 7/8-14 inch flared female fittings, if used
2шт.
19
218-5058
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
ADAPTER - 9/16-18 flared x 3/4-16 inch O-ring boss, if used
2шт.
20
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
19
1252331C1
UNION
ADAPTER - 9/16-18 flared x 7/8-14 inch O-ring boss, if used
2шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
3
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
5
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 36
