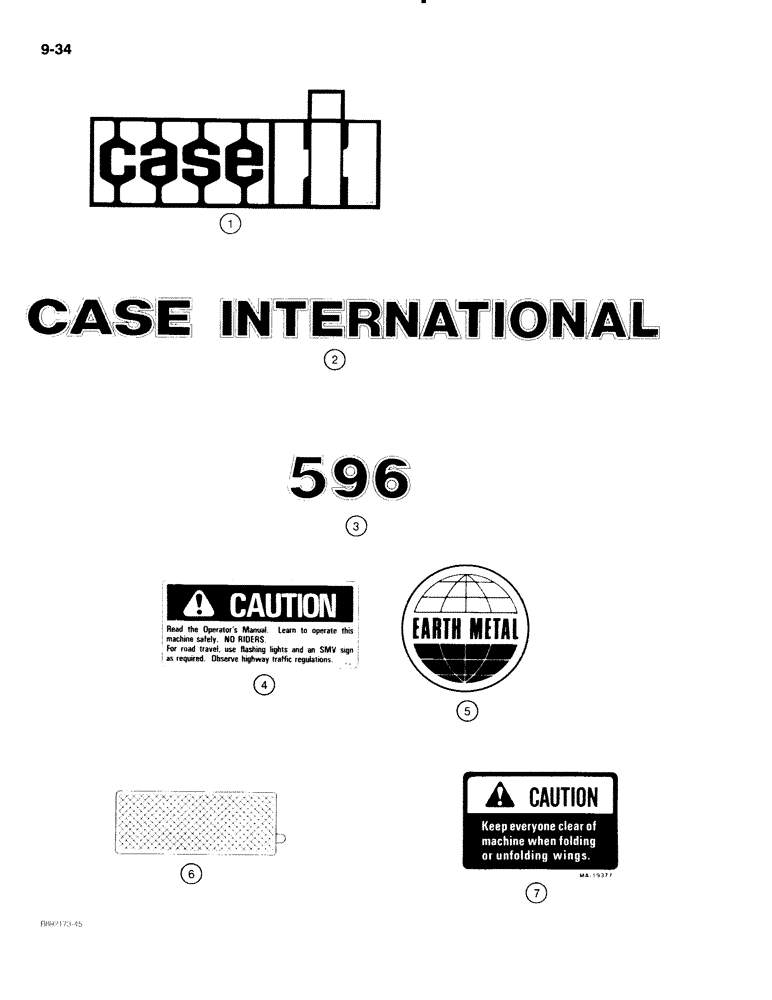

Запчасти Case IH 596 (9-34) - DECALS, CASEIH (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
95730C1
DECAL
- CaseIH trademark, 32 x 104 mm, if used
2шт.
1
95731C1
DECAL
- CaseIH trademark, 64 x 156 mm, if used
2шт.
1
91401C1
DECAL
- CaseIH trademark, 85 x 210 mm, if used
2шт.
1
95732C1
DECAL,Case IH Logo
- CaseIH trademark, 106 x 260 mm, if used
2шт.
2
95815C1
DECAL
- Case International, for red background
1шт.
25 x 223 mm, if used
1шт.
2
1973422C1
DECAL
- Case International, for red background
1шт.
25 x 412 mm, if used
1шт.
2
95816C1
DECAL,CASE international Logo
- Case International, for red background
1шт.
40 x 357 mm, if used
1шт.
2
95817C1
DECAL
- Case International, for red background
1шт.
55 x 491 mm, if used
1шт.
2
1973426C1
DECAL
- Case International, for red background
1шт.
70 x 625 mm, if used, was 95818C1
1шт.
2
95819C1
DECAL
- Case International, for red background
1шт.
85 x 759 mm, if used
1шт.
2
1973428C1
DECAL
- Case International, for red background
1шт.
60 x 990 mm, if used
1шт.
2
95821C1
DECAL
- Case International, for red background
1шт.
115 x 1027 mm, if used
1шт.
2
96025C1
DECAL
- Case International, for black background
1шт.
40 x 365 mm, if used
1шт.
2
96026C1
DECAL
- Case International, for black background
1шт.
55 x 502 mm, if used
1шт.
2
96027C1
DECAL
- Case International, for black background
1шт.
70 x 639 mm, if used
1шт.
3
95863C1
DECAL
- model number, 596, 70 mm high, see item 3A (replaces 95861C1)
1шт.
for optional service kit
1шт.
3a
96012C1
DECAL
- model, two sets of numbers 0 through 9
1шт.
70 mm high, if used, not shown
1шт.
4
1254170C1
DECAL
- caution, general information
1шт.
4a
80593C1
DECAL
- caution, general information (French), not shown
1шт.
5
147782C1
DECAL
- Earth Metal
1шт.
6
1284365C2
REFLECTOR
- amber
1шт.
6
1284374C1
REFLECTOR,Reflector Red
- red
2шт.
7
59051C2
PRODUCT GRAPHIC
DECAL - warning, keep clear
2шт.
7a
80597C1
DECAL
- warning, keep clear (French), not shown
2шт.
Выбрано товаров: 37
