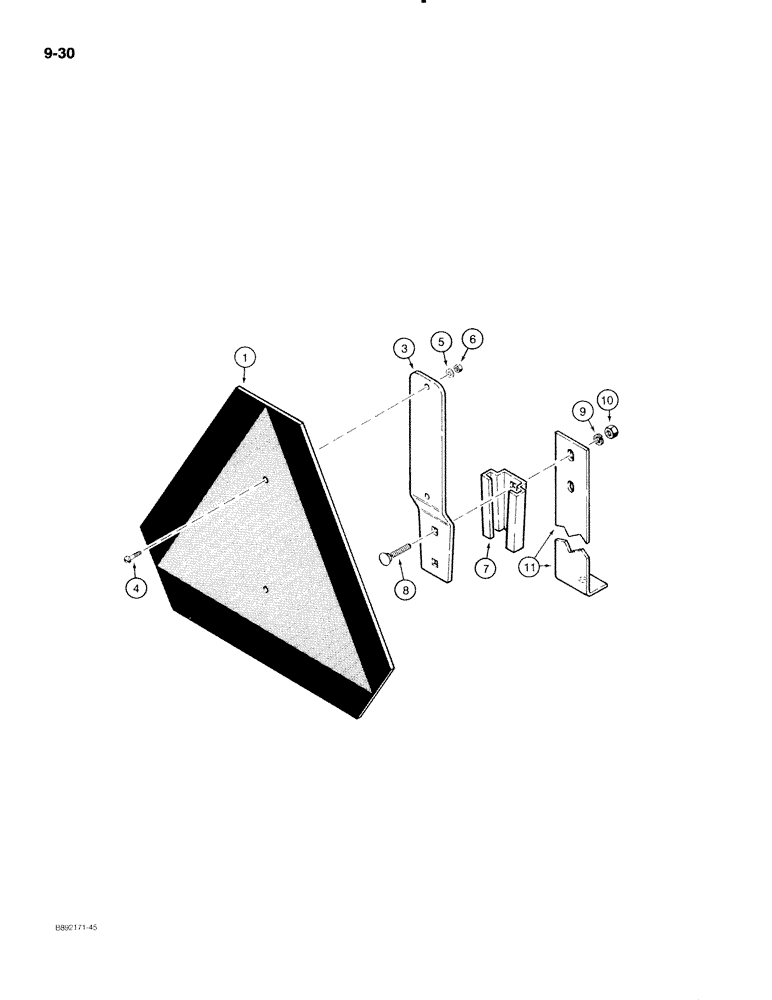

Запчасти Case IH 596 (9-30) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle emblem

1шт.

1

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

2

321-4311

DECAL

- SMV emblem, not shown

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - emblem support

1шт.

4

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

5

120391

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

2шт.

6

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

7

398976R1

BRACKET

SOCKET - SMV emblem

1шт.

8

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

131946C1

SUPPORT

BRACKET - mounting, SMV socket

1шт.
