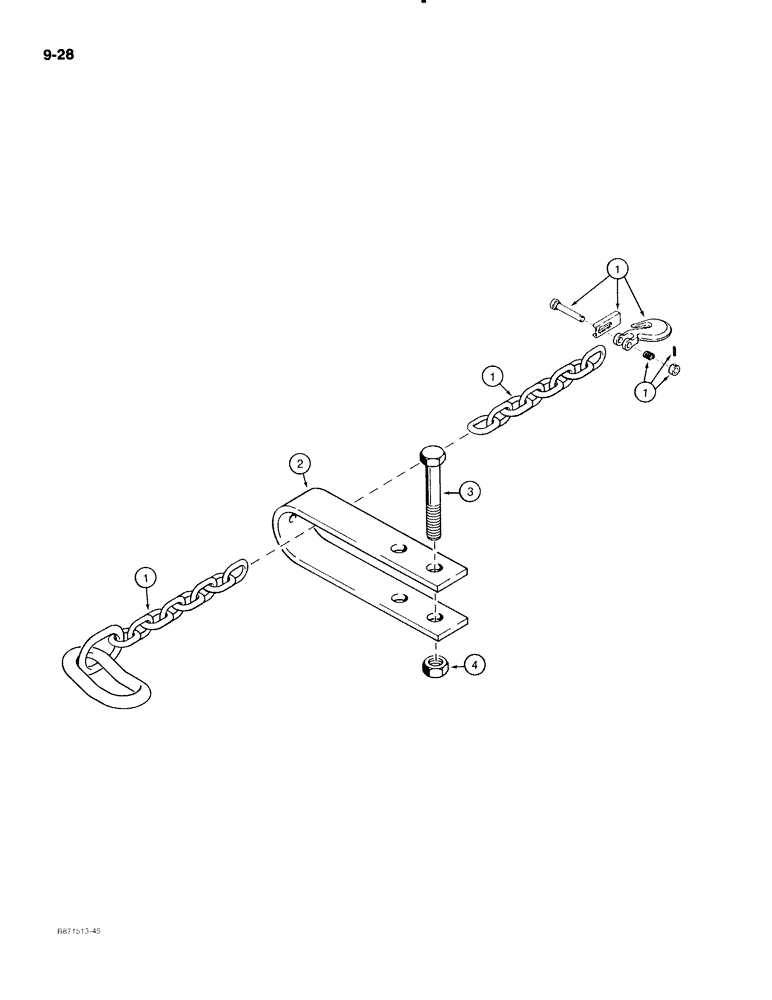

Запчасти Case IH 596 (9-28) - SAFETY CHAIN (09) - CHASSIS/ATTACHMENTS

1

63506C3

CHAIN (AG)

CHAIN - safety

1шт.

2

1279163Cl

CLEVIS - chain

1шт.

3

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

4

19508R1

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

26512R1

WASHER

- flat, 25/32 x 2 x 5/32 inch

1шт.

22244R1

LOCK NUT

- hex, self-locking, 3/4 inch NC

1шт.
