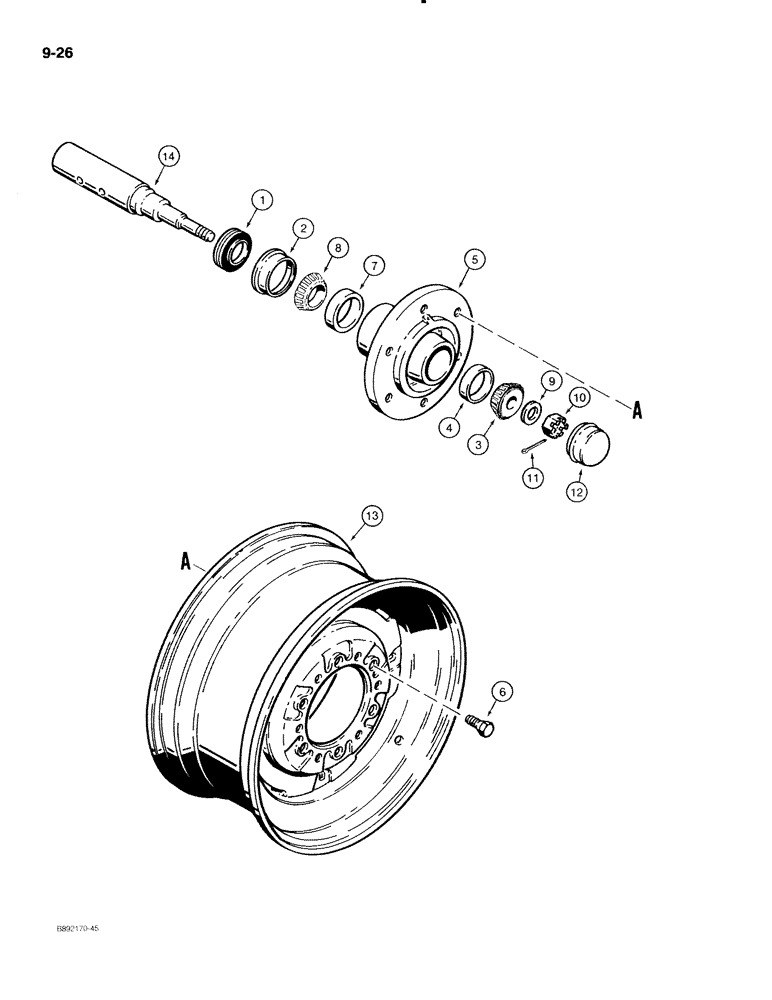

Запчасти Case IH 596 (9-26) - DUAL WHEEL ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

667599R92

SEAL

- wheel hub oil

2шт.

2

667564R2

SLEEVE

RING - oil seal wear

2шт.

3

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

2шт.

4

371883R1

BEARING CUP

Outer

2шт.

5

465493R2

HUB

- wheel, 6 bolt

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

2шт.

6

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

12шт.

7

G57451

BEARING, CUP

CUP - bearing, inner

2шт.

8

G57452

ROLLER BEARING

CONE - bearing, inner

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- 25/32 x 1-1/4 x 1/8 inch

2шт.

10

69442D

NUT

- slotted hex, 3/4 inch NF

2шт.

11

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.

12

663908R1

CAP

- hub

2шт.

13

1277504C1

RIM

WHEEL - 15 x 10LB, replaces 147641C1

2шт.

810769C1

VALVE

- tubeless tire, steel

2шт.

14

478375R1

SPINDLE

- wheel

2шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.
