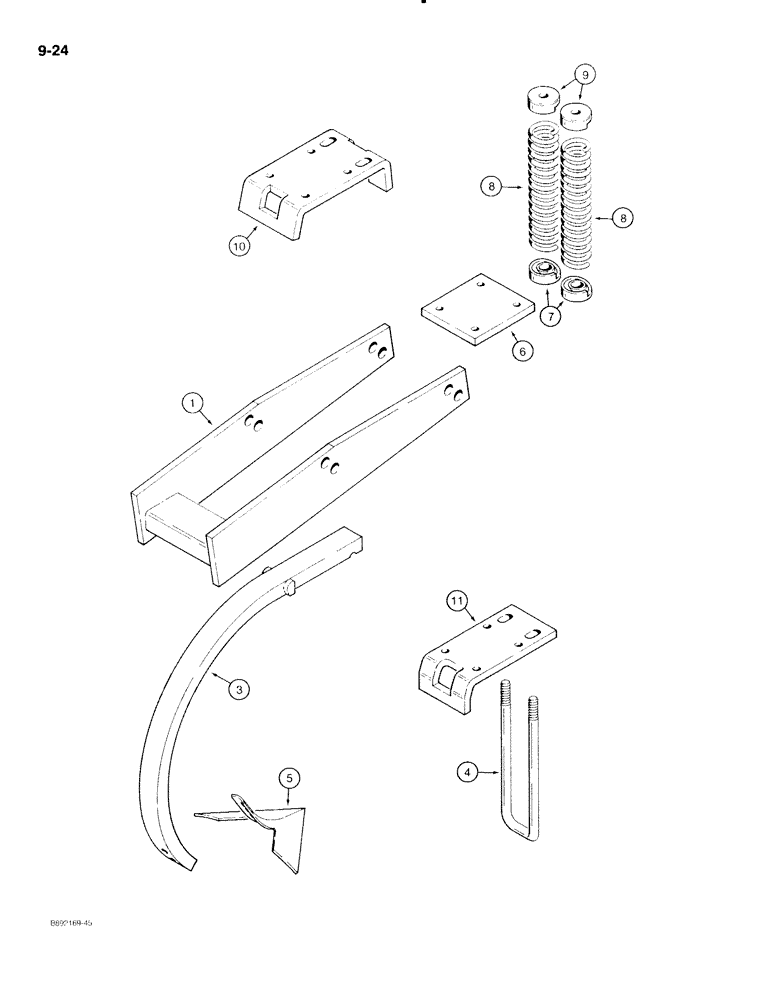

Запчасти Case IH 596 (9-24) - CENTER SHANK ATTACHMENT - 8 INCH SWEEP, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

121363C1

SUPPORT

- shank

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

2

608341R1

SHANK

- center, no longer available, not shown, used with 485985R1 clamping bracket (item 10), order 1284066C1 shank and

1шт.

1284067C1 bracket for service

1шт.

3

1284066C1

SHANK

- center, used with 1284067C1 bracket (item 11)

1шт.

19073R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 2

BOLT - plow, 1/2 NC x 2 inch, 2 used per shank

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 2 used per shank 1/2"-13, G5

1шт.

4

602331R1

BOLT,U, 3/4" - 10 x 13.20"

U-BOLT - bracket retaining, 1 used per bracket

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

5

602276R2

SWEEP

- 8 inch, 1/4 inch thick

1шт.

6

129676C1

BAR

BRACKET - transport, 1 used per shank

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

7

608349R2

RETAINER

SEAT - spring, lower

2шт.

8

608347R1

SPRING

- center shank

2шт.

9

608348R1

RETAINER

SEAT - spring, upper

2шт.

10

485985R1

SUPPORT

BRACKET - clamp, used with 608341R1 shank, if used

1шт.

11

1284067C1

SUPPORT

BRACKET - clamp, used with 1284066C1 shank, if used

1шт.
