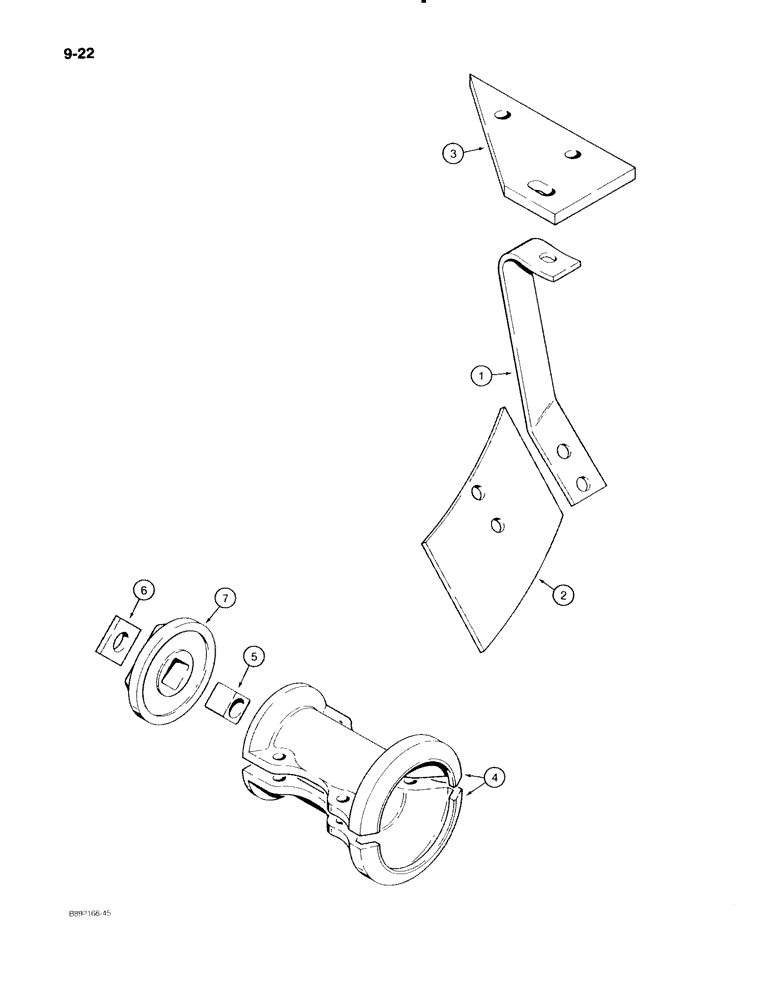

Запчасти Case IH 596 (9-22) - FURROW FILLER AND SCRAPER ATTACHMENT (09) - CHASSIS/ATTACHMENTS

121470C92

SCRAPER

ASSEMBLY - disc, left-hand, not shown

1шт.

121471C92

SCRAPER

ASSEMBLY - disc, right-hand

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - disk scraper

1шт.

2

121469C1

BLADE

- scraper

1шт.

27877R1

RIVET,FH, 1/2" x 1 1/2"

- blade retaining, 1/2 x 1-1/2 inch

2шт.

27467R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - special, 5/8 NC x 1-3/4 inch

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex, flange lock, 5/8 inch NC

2шт.

3

139514C1

SUPPORT

BRACKET - scraper

2шт.

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

4

129797C1

HUB

SPOOL - half, furrow filler, 9-1/4 inch long

4шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

5

100694C1

PLATE,SMALL SQUARE

BLOCK - driver

2шт.

6

100695C1

SPACER

- driver block

2шт.

7

596769R1

SQ HOLE WASHER

WASHER - furrow filler

2шт.

113-808

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

192-29

LOCK WASHER,7/8"

7/8"

2шт.

129-109

NUT,7/8"-9, G5

2шт.
