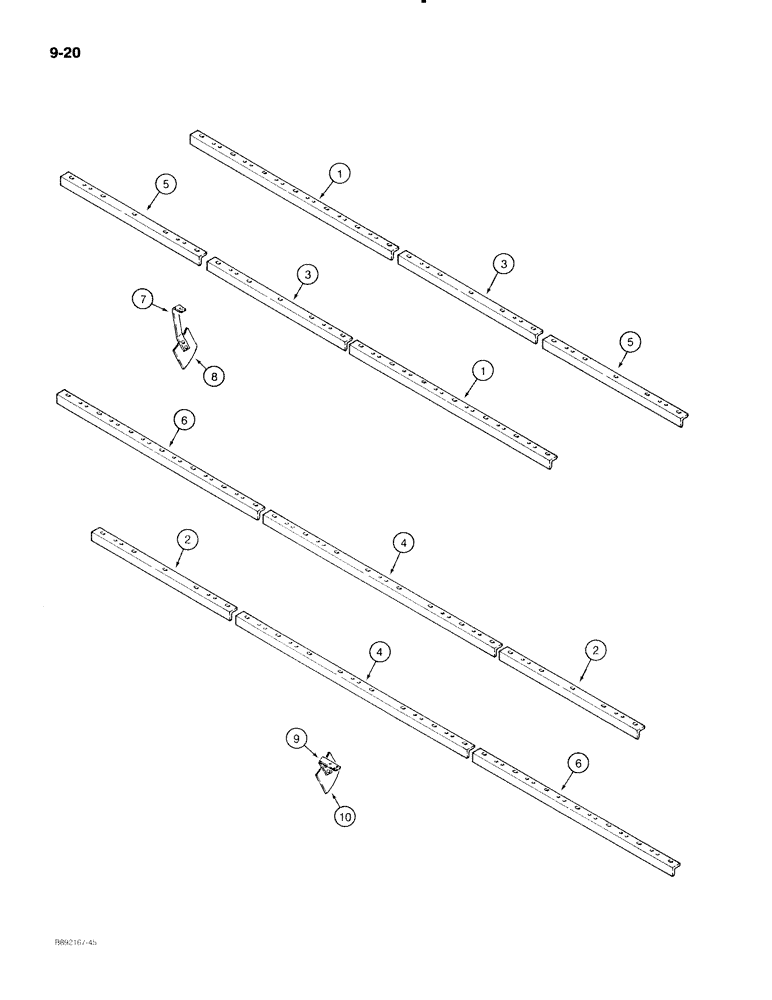

Запчасти Case IH 596 (9-20) - SCRAPER SUPPORT (09) - CHASSIS/ATTACHMENTS

1

121302C2

ANGLE

SUPPORT - main scraper, left and right front

2шт.

2

121226C1

ANGLE

SUPPORT - main scraper, left and right rear

2шт.

3

121226C1

ANGLE

SUPPORT - wing scraper, left and right front

2шт.

Disk Harrow coded A and C

1шт.

3

121302C2

ANGLE

SUPPORT - wing scraper, left and right front

2шт.

Disk Harrow coded B

1шт.

4

121304C2

ANGLE

SUPPORT - wing scraper, left and right rear

2шт.

Disk Harrow coded A

1шт.

4

129970C1

ANGLE

SUPPORT - wing scraper, left and right rear

2шт.

Disk Harrow coded B

1шт.

4

121225C1

ANGLE

SUPPORT - wing scraper, left and right rear

2шт.

Disk Harrow coded C

1шт.

5

121226C1

ANGLE

SUPPORT - wing extension scraper, left and right front

2шт.

Disk Harrow coded C

1шт.

6

121302C2

ANGLE

SUPPORT - wing extension scraper, left and right rear

2шт.

Disk Harrow coded C

1шт.

27467R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - special, 5/8 NC x 1-3/4 inch

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex, flanged lock, 5/8 inch NC

1шт.

121470C92

SCRAPER

ASSEMBLY - front, left-hand, not shown

15шт.

Disk Harrow coded A

1шт.

121470C92

SCRAPER

ASSEMBLY - front, left-hand, not shown

17шт.

Disk Harrow coded B

1шт.

121470C92

SCRAPER

ASSEMBLY - front, left-hand, not shown

21шт.

Disk Harrow coded C

1шт.

121471C92

SCRAPER

ASSEMBLY - front, right-hand

15шт.

Disk Harrow coded A

1шт.

121471C92

SCRAPER

ASSEMBLY - front, right-hand

17шт.

Disk Harrow coded B

1шт.

121471C92

SCRAPER

ASSEMBLY - front, right-hand

21шт.

Disk Harrow coded C

1шт.

7

NSS

NOT SOLD SEPARAT

SCRAPER - front, left-hand, order 121470C92 scraper assembly

1шт.

7

NSS

NOT SOLD SEPARAT

SCRAPER - front, right-hand, order 121471C92 scraper assembly

1шт.

8

121469C1

BLADE

- scraper, left or right hand

1шт.

27877R1

RIVET,FH, 1/2" x 1 1/2"

- scraper blade

2шт.

27467R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - special, 5/8 NC x 1-3/4 inch, 2 used per above scraper

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex, flanged lock, 5/8 inch NC

1шт.

139662C91

HALF BLADE

SCRAPER ASSEMBLY - rear, left-hand, not shown

9шт.

Disk Harrow coded A

1шт.

139662C91

HALF BLADE

SCRAPER ASSEMBLY - rear, left-hand, not shown

11шт.

Disk Harrow coded B

1шт.

139662C91

HALF BLADE

SCRAPER ASSEMBLY - rear, left-hand, not shown

13шт.

Disk Harrow coded C

1шт.

139663C91

HALF BLADE

SCRAPER ASSEMBLY - rear, right-hand

9шт.

Disk Harrow coded A

1шт.

139663C91

HALF BLADE

SCRAPER ASSEMBLY - rear, right-hand

11шт.

Disk Harrow coded B

1шт.

139663C91

HALF BLADE

SCRAPER ASSEMBLY - rear, right-hand

13шт.

Disk Harrow coded C

1шт.

9

NSS

NOT SOLD SEPARAT

SCRAPER - rear, left-hand, order 139662C91 scraper assembly

1шт.

9

NSS

NOT SOLD SEPARAT

SCRAPER - rear, right-hand, order 139663C91 scraper assembly

1шт.

10

121469C1

BLADE

- scraper, left or right hand

1шт.

27887R1

BOLT,Hex, 5/16" - 24 x 1 5/8", Gr 8

RIVET - scraper blade

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, 2 used per above scraper

1шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flanged lock, 1/2 inch NC

1шт.
