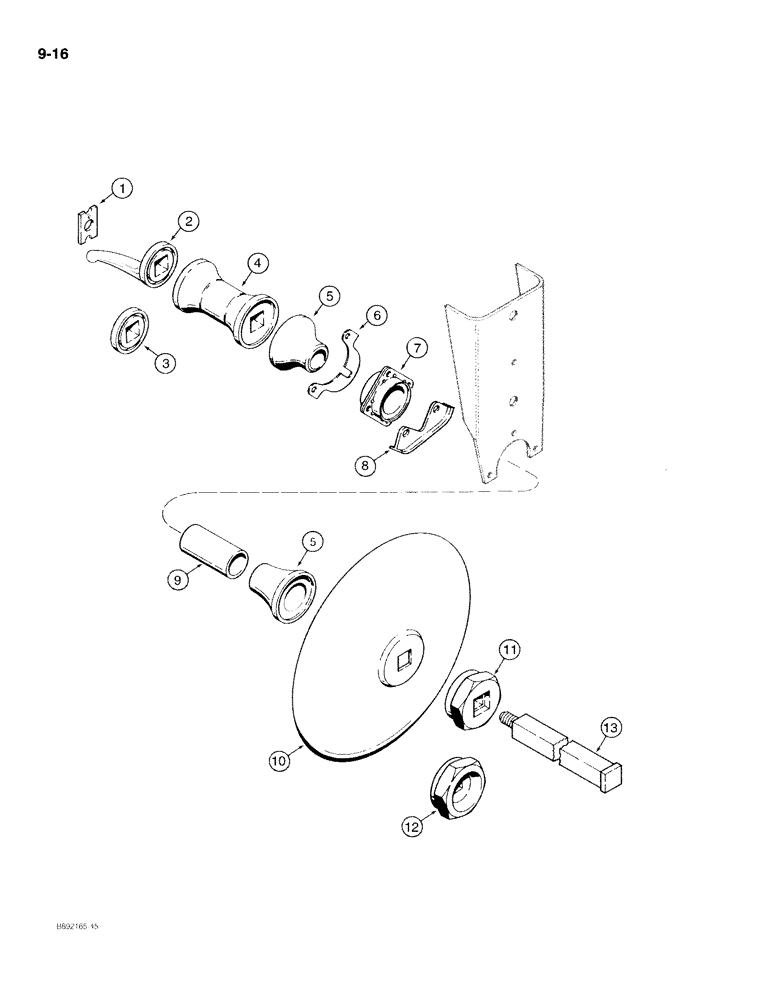

Запчасти Case IH 596 (9-16) - DISK AND GANG (09) - CHASSIS/ATTACHMENTS

1

488836R2

NUT

LOCK - arbor bolt nut

8шт.

Disk Harrow coded A and B

1шт.

1

488836R2

NUT

LOCK - arbor bolt nut

12шт.

Disk Harrow coded C

1шт.

2

129809C1

BLOCK DRIVER

WASHER - gang driver, arbor bolt

8шт.

3

549973R1

SQ HOLE WASHER

- end, arbor bolt

8шт.

Disk Harrow coded A and B

1шт.

3

549973R1

SQ HOLE WASHER

- end, arbor bolt

4шт.

Disk Harrow coded C

1шт.

4

549976R1

SPOOL

- spacing, 10-1/2 inch

26шт.

Disk Harrow coded A

1шт.

4

549976R1

SPOOL

- spacing, 10-1/2 inch

30шт.

Disk Harrow coded B

1шт.

4

549976R1

SPOOL

- spacing, 10-1/2 inch

34шт.

Disk Harrow coded C

1шт.

5

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL - bearing

36шт.

Disk Harrow coded A

1шт.

5

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL - bearing

44шт.

Disk Harrow coded B

1шт.

5

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL - bearing

52шт.

Disk Harrow coded C

1шт.

6

58919C1

SHIM

- bearing, 3/16 inch thick, if used

8шт.

Disk Harrow coded A

1шт.

6

58919C1

SHIM

- bearing, 3/16 inch thick, if used

12шт.

Disk Harrow coded B and C

1шт.

6

139617C1

SHIM

- bearing, 3/32 inch thick, if used

8шт.

Disk Harrow coded A

1шт.

6

139617C1

SHIM

- bearing, 3/32 inch thick, if used

12шт.

Disk Harrow coded B and C

1шт.

7

ST740B

BALL BEARING,55.58mm ID

BEARING - ball

18шт.

Disk Harrow coded A

1шт.

7

ST740BGV

BEARING

Value, Ball Bearing

18шт.

7

ST740B

BALL BEARING,55.58mm ID

BEARING - ball

22шт.

Disk Harrow coded B

1шт.

7

ST740BGV

BEARING

Value, Ball Bearing

22шт.

7

ST740B

BALL BEARING,55.58mm ID

BEARING - ball

26шт.

Disk Harrow coded C

1шт.

7

ST740BGV

BEARING

Value, Ball Bearing

26шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

129753C1

BEARING COVER

- bearing wear

2шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

549971R1

SUPPORT TUBE

BUSHING - arbor bolt support

18шт.

Disk Harrow coded A

1шт.

9

549971R1

SUPPORT TUBE

BUSHING - arbor bolt support

22шт.

Disk Harrow coded B

1шт.

9

549971R1

SUPPORT TUBE

BUSHING - arbor bolt support

26шт.

Disk Harrow coded C

1шт.

10

549990R2

DISK HARROW

DISC - notched, 22 inch diameter x 1/4 inch thick

1шт.

10

549991R2

DISK HARROW

DISC - solid, 22 inch diameter x 1/4 inch thick, not shown

1шт.

10

549987R2

DISK HARROW

DISC - solid, 24 inch diameter x 1/4 inch thick

1шт.

10

549986R2

DISK HARROW

24CL5, not shown

1шт.

10

58934C2

DISK HARROW

DISC - solid, 26 inch diameter x 1/4 inch thick

1шт.

10

58917C2

DISK HARROW

DISC - notched, 26 inch diameter x 1/4 inch thick, not shown

1шт.

10

28336R2

DISK HARROW

DISC - solid, 26 inch diameter x 5/16 inch thick

1шт.

10

28345R2

DISK HARROW

DISC - notched, 26 inch diameter x 5/16 inch thick, not shown

1шт.

11

549975R2

SQ HOLE WASHER

- head and bumper (replaces 468584R2)

6шт.

Disk Harrow coded A and B

1шт.

11

549975R2

SQ HOLE WASHER

- head and bumper (replaces 468584R2)

10шт.

Disk Harrow coded C

1шт.

12

100697C1

WASHER

- arbor bolt

2шт.

13

58831C1

SQUARE BOLT

BOLT - arbor, for 5 disks, 1-1/2 NC x 47-1/4 inch

1шт.

13

549978R1

SQUARE BOLT

BOLT - arbor, for 6 disks, 1-1/2 NC x 57-7/8 inch

1шт.

13

549979R1

BOLT,Rnd Cor Sq Hd, 1 1/2" - 6 x 1732mm

- arbor, for 7 disks, 1-1/2 NC x 68-1/8 inch

1шт.

13

549980R1

BOLT,1 1/2" - 6 x 2004mm

- arbor, for 8 disks, 1-1/2 NC x 78-7/8 inch

1шт.

13

549981R1

BOLT,1 1/2" - 6 x 2271mm

- arbor, for 9 disks, 1-1/2 NC x 89-3/8 inch

1шт.

92-21150

LOCK WASHER,1 1/2"

1 1/2"

8шт.

129-114

NUT,1 1/2"-6, G5

- hex, 1-1/2 inch NC

8шт.
