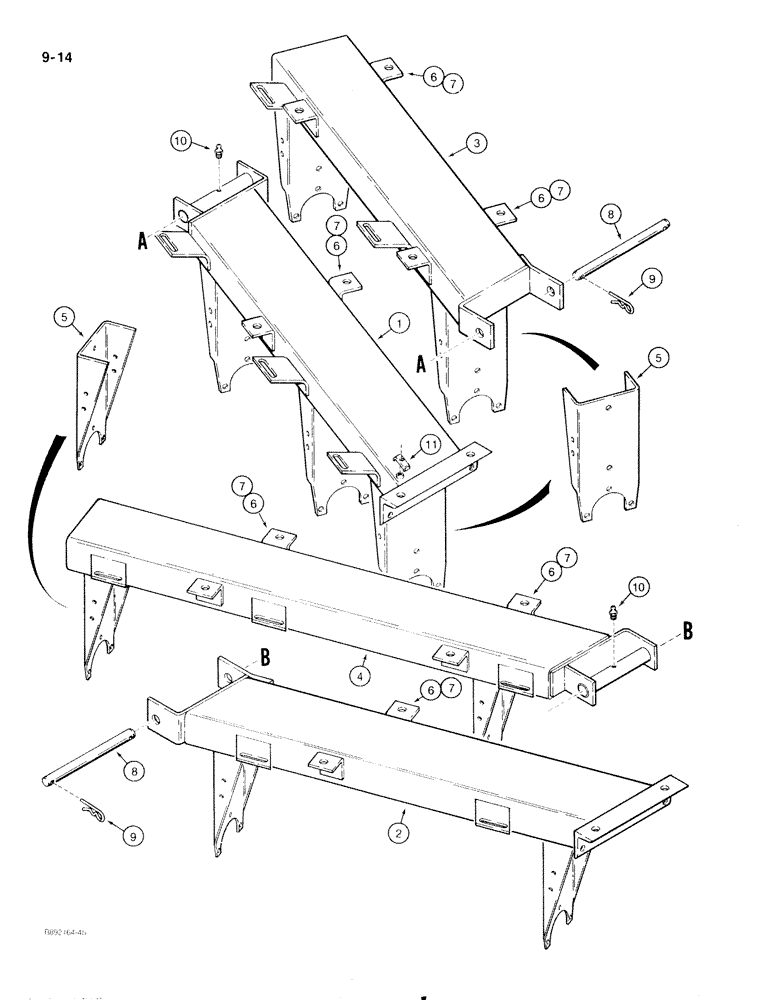

Запчасти Case IH 596 (9-14) - GANG FRAME AND SUPPORT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
121330C1
FUNNEL
FRAME - main gang, left front
1шт.
1
121331C1
FUNNEL
FRAME - main gang, right front, not shown
1шт.
2
121333C1
BAR
FRAME - main gang, left rear
1шт.
2
121334C1
BAR
FRAME - main gang, right rear, not shown
1шт.
3
129662C1
BAR
FRAME - wing gang, left front
1шт.
Disk Harrow coded A
1шт.
3
129663C1
BAR
FRAME - wing gang, right front, not shown
1шт.
Disk Harrow coded A
1шт.
3
129621C1
BAR
FRAME - wing gang, left front
1шт.
Disk Harrow coded B
1шт.
3
129622C1
BAR
FRAME - wing gang, right front, not shown
1шт.
Disk Harrow coded B
1шт.
3
121339C1
BAR
FRAME - wing gang, left front
1шт.
Disk Harrow coded C
1шт.
3
121340C1
BAR
FRAME - wing gang, right front, not shown
1шт.
Disk Harrow coded C
1шт.
4
129664C1
BAR
FRAME - wing gang, left rear
1шт.
Disk Harrow coded A
1шт.
4
129665C1
BAR
FRAME - wing gang, right rear, not shown
1шт.
Disk Harrow coded A
1шт.
4
129618C1
BAR
FRAME - wing gang, left rear
1шт.
Disk Harrow coded B
1шт.
4
129619C1
BAR
FRAME - wing gang, right rear, not shown
1шт.
Disk Harrow coded B
1шт.
4
121336C1
BAR
FRAME - wing gang, left rear
1шт.
Disk Harrow coded C
1шт.
4
121337C1
BAR
FRAME - wing gang, right rear, not shown
1шт.
Disk Harrow coded C
1шт.
5
139661C1
SUPPORT
- bearing
1шт.
6
121105C2
BRACKET
SUPPORT - scraper angle, left-hand
1шт.
7
121106C2
BRACKET
SUPPORT - scraper angle, right-hand
1шт.
113-821
BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 5
- hex, 7/8 NC x 2-1/4 inch
32шт.
192-29
LOCK WASHER,7/8"
7/8"
32шт.
129-109
NUT,7/8"-9, G5
32шт.
8
100651C2
PIN
- wing hinge
4шт.
9
471323R1
LINCH PIN
PIN - hair, wing hinge pin
4шт.
119202
PIN
- cotter, 3/8 x 2-1/4 inch
4шт.
10
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING - grease, straight, 1/4 inch NF thread
4шт.
11
129886C2
CLAMP
- hose
2шт.
413-812
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
- hex, 1/2 NC x 3/4 inch
2шт.
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 5/64") 1/2", SAE
2шт.
Выбрано товаров: 41
