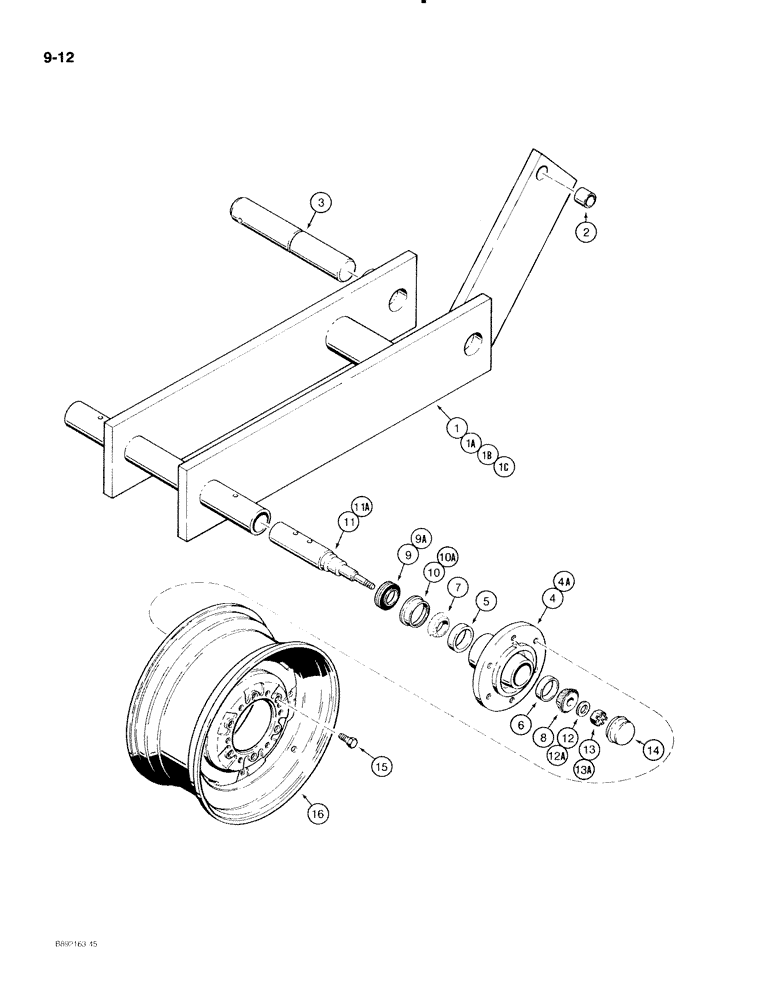

Запчасти Case IH 596 (9-12) - WHEEL AXLE - WING FRAME (09) - CHASSIS/ATTACHMENTS

1

1337414C1

ARM ASSY.

ARM ASSEMBLY - wing wheel, left-hand, used with 2-1/8 inch diameter spindle

1шт.

1a

129946C91

ARM

ASSEMBLY - wing wheel, left-hand, used with 1-3/4 inch diameter spindle

1шт.

1b

1337415C1

ARM ASSY.

ARM ASSEMBLY - wing wheel, right-hand, used with 2-1/8 inch diameter spindle

1шт.

1c

129947C91

ARM

ASSEMBLY - wing wheel, right-hand, used with 1-3/4 inch diameter spindle

1шт.

2

112886C1

BUSHING

- tension, used on all of the above arm assemblies

1шт.

3

129964C1

PIN,50.8mm OD x 300mm L

- wheel pivot

2шт.

23171R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 1/2 x 3 inch

2шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF thread

2-4шт.

4

606468R21

HUB

- wheel, 6 bolt, used with 2-1/8 inch diameter spindle

2-4шт.

4a

465493R2

HUB

- wheel, 6 bolt, used with 1-3/4 inch diameter spindle

2-4шт.

5

G57451

BEARING, CUP

CUP - bearing, inner, 465493R2 or 606468R21 hub

1шт.

6

371883R1

BEARING CUP

Outer, 465493R2 or 606468R21 hub

1шт.

7

G57452

ROLLER BEARING

CONE - bearing, inner

2-4шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

2-4шт.

9

594702R91

SEAL

- wheel hub, used with 2-1/8 inch diameter spindle

2-4шт.

10

594703R1

SLEEVE

RING - oil seal wear, used with 2-1/8 inch diameter spindle

2-4шт.

9a

667599R92

SEAL

- wheel hub oil, used with 1-3/4 inch diameter spindle

2-4шт.

10a

667564R2

SLEEVE

RING - oil seal wear, used with 1-3/4 inch diameter spindle

2-4шт.

11

1337412C1

SPINDLE

- wheel, 2-1/8 inch diameter, if used

2-4шт.

11a

478375R1

SPINDLE

- wheel, 1-3/4 inch diameter, if used

2-4шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2-4шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

2-4шт.

12

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- 29/32 inch x 1-3/4 inch x 11 gauge, if used

2-4шт.

12a

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

-25/32 inch x 1-1/4 inch x 11 gauge, if used

2-4шт.

13

70120D

SLOTTED NUT,7/8"-14

NUT - slotted hex, 7/8 inch NF, if used

2-4шт.

13a

69442D

NUT

- slotted hex, 3/4 inch NF, if used

2-4шт.

14

663908R1

CAP

- hub

2-4шт.

15

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

12-24шт.

16

1277504C1

RIM

WHEEL - 15 x 10LB, replaces 147641C1

2-4шт.

810769C1

VALVE

- tubeless tire steel

2-4шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2-4шт.
