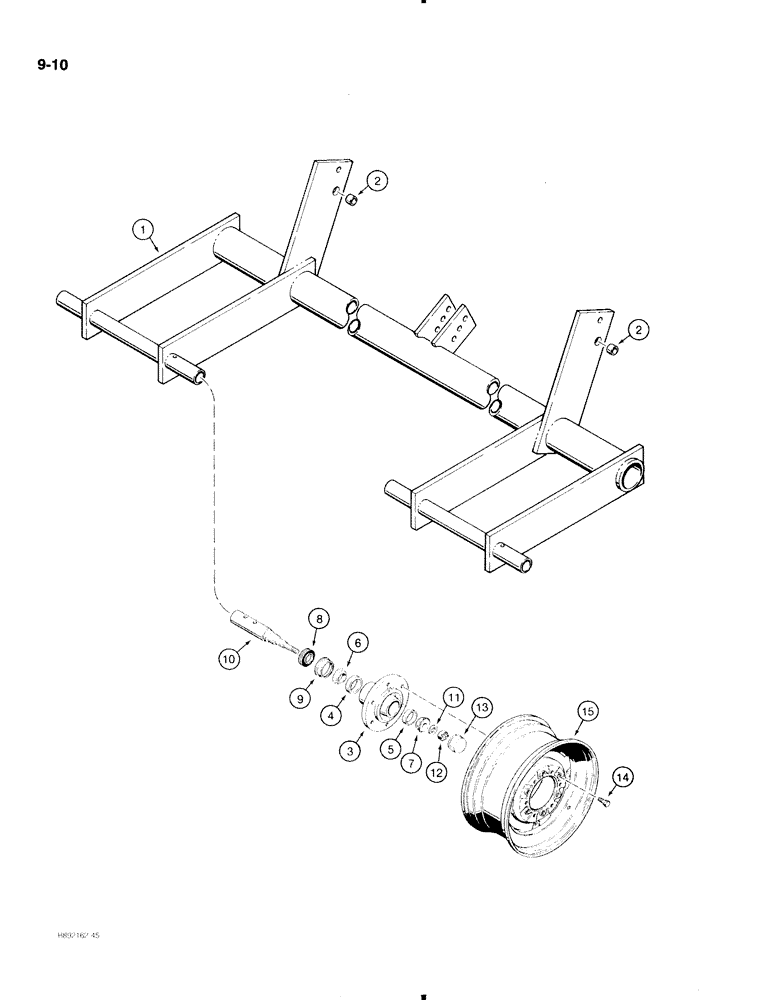

Запчасти Case IH 596 (9-10) - WHEEL AXLE - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

121073C1

AXLE

ASSEMBLY - main frame

1шт.

2

112886C1

BUSHING

- tension

2шт.

3

465496R11

HUB

- wheel, 6 bolt

4шт.

4

663558R1

BEARING CUP

CUP - bearing, inner

1шт.

5

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, outer

1шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner

4шт.

7

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, outer

4шт.

8

654674R91

OIL SEAL

- wheel hub oil

4шт.

9

654675R1

RING

- oil seal wear, 5/8 inch wide

4шт.

10

60158C2

SPINDLE,330.2mm L

- wheel

4шт.

113-477

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5, Full Thd

- hex, 1/2 NC x 3-1/2 inch

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2 inch NC

4шт.

11

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- 29/32 inch x 1-3/4 inch x 11 gauge

4шт.

12

70120D

SLOTTED NUT,7/8"-14

NUT - slotted hex, 7/8 inch NF

4шт.

13

663906R1

CAP

- hub

4шт.

14

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

24шт.

15

1277504C1

RIM

WHEEL - 15 x 10LB, replaces 147641C1

4шт.

810769C1

VALVE

- tubeless tire, steel

4шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.
