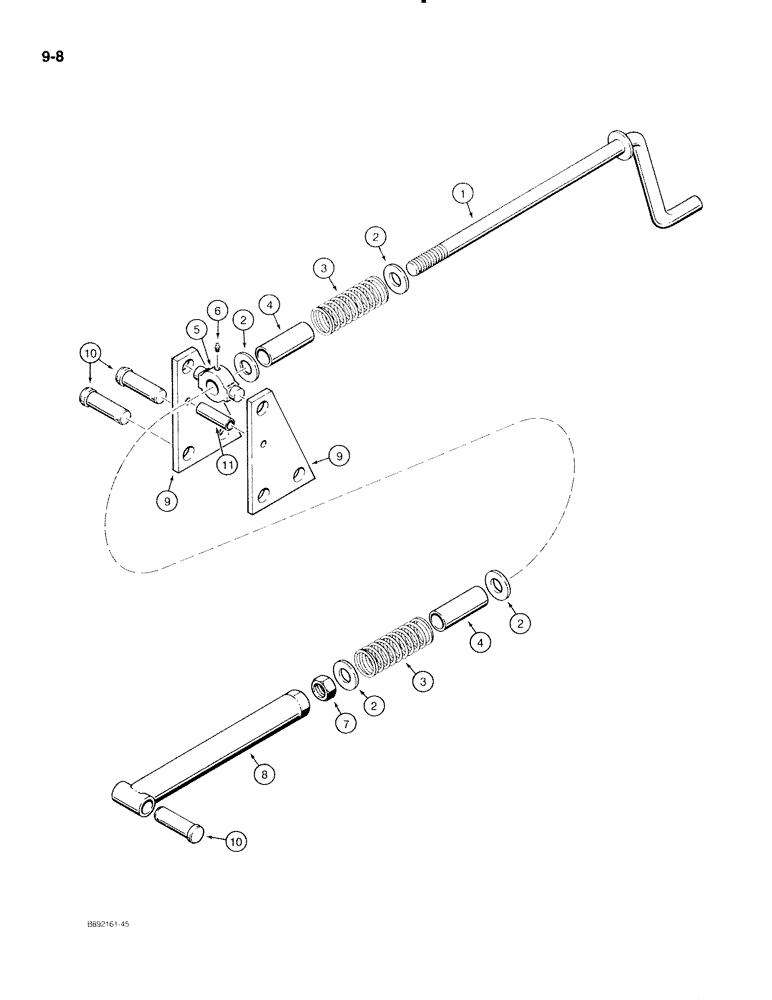

Запчасти Case IH 596 (9-08) - HITCH CRANK (09) - CHASSIS/ATTACHMENTS

1

139571C2

CRANK

- hitch

1шт.

2

60146C1

WASHER,32.51mm ID x 63.5mm OD x 6.35mm Thk

- spring retaining

4шт.

3

139501C1

SPRING

- hitch crank

2шт.

4

147968C1

SPACER

- spring guide

2шт.

5

60134C1

TRUNNION

- hitch crank

1шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

7

60149C2

LOCK NUT

- hex, special, 1-1/4 inch NC

1шт.

NLS

NO LONGER SERVICED

SCREW - square head cup point set, 5/16 NC x 1/2 inch

1шт.

8

139668C1

TUBE,477 mm Length

- hitch crank

1шт.

1017956R1

PLUG,Cap, .610" OD

Closure - plastic, tapered Cap, .610" OD

1шт.

9

139483C1

BAR

SUPPORT - trunnion

2шт.

10

28538R1

CLEVIS PIN,1 1/4" x 5"

PIN - clevis, 1-1/4 x 5 inch

3шт.

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

3шт.

11

139453C1

SPACER

- trunnion support

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

608595R1

NUT

- hex, lock, 5/8 inch NC

1шт.
