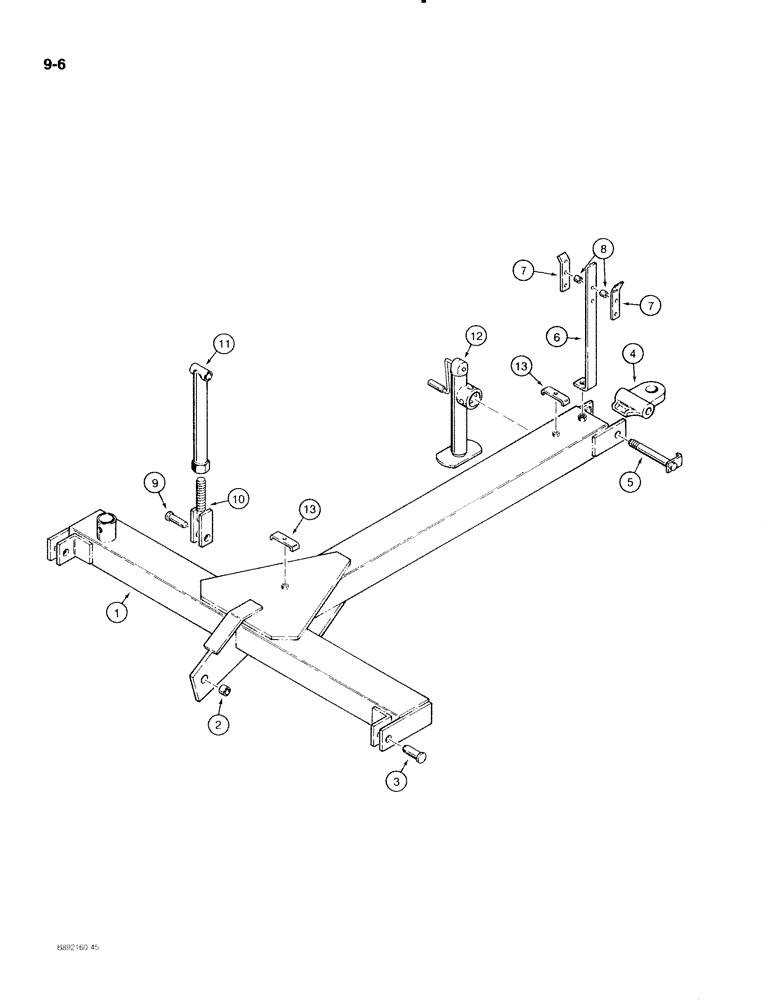

Запчасти Case IH 596 (9-06) - HITCH (09) - CHASSIS/ATTACHMENTS

1

121061C2

HITCH ASSY, TRAILER

HITCH ASSEMBLY - disk harrow

1шт.

2

112886C1

BUSHING

- hitch tension

1шт.

3

28535R1

CLEVIS PIN

PIN - clevis, 1-1/4 x 3-1/4 inch

2шт.

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

4

61023C3

HITCH

- hitch

1шт.

5

121362C1

PIN

- hitch clevis

1шт.

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex, lock, 1-1/4 inch NC

1шт.

6

58643C1

SUPPORT

- hydraulic hose

1шт.

7

58644C1

HOLDER

- hydraulic hose

2шт.

424-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 2

- hex, 3/4 NC x 1-1/4 inch

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

8

391553R1

SPACER,1/2" Pipe x 7/8"

- hose holder, no longer used, not required

4шт.

9

28534R1

CLEVIS PIN,1 1/4" x 3"

PIN - clevis, 1-1/4 x 3 inch

1шт.

1978738C1

HAIR PIN COTTER

3/16" diameter

1шт.

138-2040

PIN,1/4" x 1 1/2", Coiled

1шт.

138-2053

PIN,1/4" x 1 1/4", Coiled

1шт.

21899R1

HEADED PIN

PIN - headed, 1/2 x 2-1/2 inch

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

147589C2

YOKE

CLEVIS - threaded

1шт.

11

147588C1

TUBE,484.4 mm Length

- threaded clevis

1шт.

1017956R1

PLUG,Cap, .610" OD

Closure - plastic, tapered Cap, .610" OD

1шт.

12

135061C91

JACK

- side crank, 2000 pound capacity, if used

1шт.

119354C1 is an equivilent service option

1шт.

12

119354C1

JACK

- side crank, 2000 pound capacity, if used

1шт.

135061C91 is an equivilent service option

1шт.

12

1980965C1

JACK ASSY.

JACK - top crank, 5000 pound capacity, if used, not shown

1шт.

113-808

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

- flat, 1 x 3 x 1/4 inch

1шт.

21624R1

LOCK NUT,7/8"-9

NUT - hex, 7/8 inch NC

1шт.

13

129888C2

CLAMP

- hose

2шт.

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
