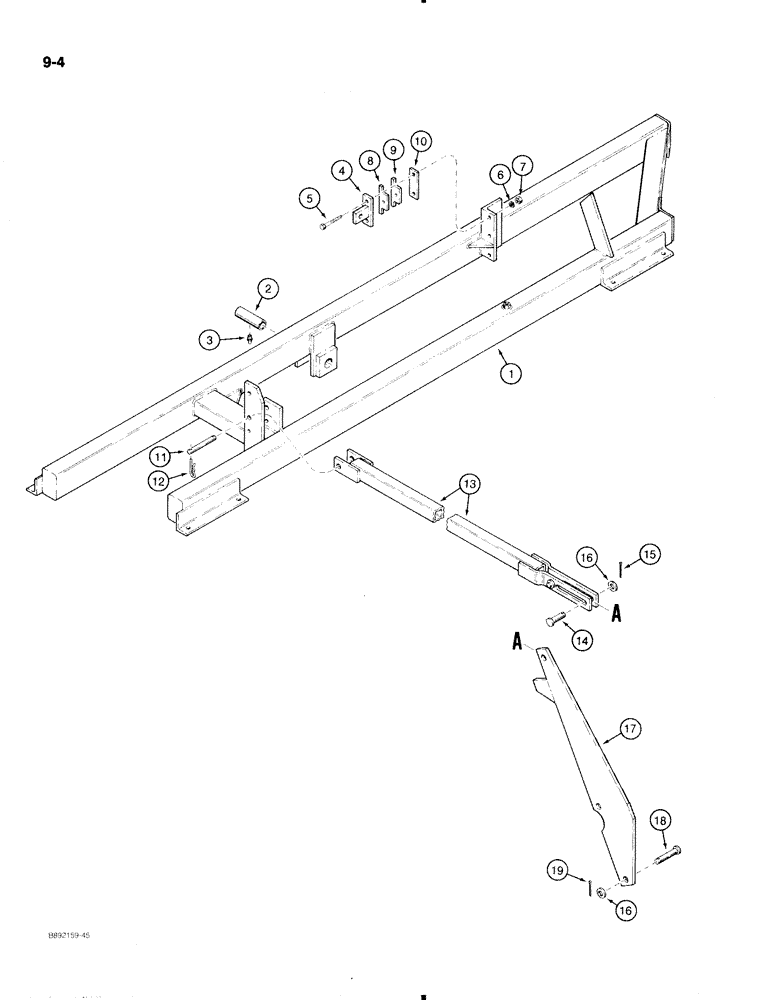

Запчасти Case IH 596 (9-04) - WING FRAME (09) - CHASSIS/ATTACHMENTS

1

129656C1

FRAME

ASSEMBLY - left wing, not shown

1шт.

Disk Harrow coded A

1шт.

1

129649C1

FRAME

ASSEMBLY - left wing, not shown

1шт.

Disk Harrow coded B

1шт.

1

121344C1

FRAME

ASSEMBLY - left wing, not shown

1шт.

Disk Harrow coded C

1шт.

1

129657C1

FRAME

ASSEMBLY - right wing, Disk

1шт.

Disk Harrow coded A

1шт.

1

129650C1

FRAME

ASSEMBLY - right wing

1шт.

Disk Harrow coded B

1шт.

1

121345C1

FRAME

ASSEMBLY - right wing

1шт.

Disk Harrow coded C

1шт.

2

129963C1

TUBE,2.02" ID, 2.5" OD, 163 mm Length

- wing wheel pivot, used with all wing frames

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/8 inch taper

2шт.

4

129949C1

ANCHOR

SUPPORT - wing cylinder anchor

2шт.

5

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

4шт.

6

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

8

129954C1

BAR

- spacer, 1/4 inch thick

2шт.

9

129955C1

BAR

- spacer, 3/8 inch thick

6шт.

10

129951C1

BAR

- wing cylinder anchor

2шт.

11

121266C1

PIN

- lift arm, 1-1/4 x 7 inch

2шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

4шт.

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

PIN - clevis, 7/8 x 3 inch

2шт.

12

486830R1

COTTER PIN

PIN - cotter, hair pin type

2шт.

13

121255C1

BAR

ARM - lift link

2шт.

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/64 inch

4шт.

14

28537R1

CLEVIS PIN,1 1/4" x 3 3/4"

PIN - clevis, 1-1/4 x 3-3/4 inch

2шт.

15

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

16

615274R1

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-9/32 x 2-1/2 x 7/64 inch

4шт.

17

121236C1

BAR

LEVER - wing cylinder

2шт.

18

28538R1

CLEVIS PIN,1 1/4" x 5"

PIN - clevis, 1-1/4 x 5 inch

2шт.

19

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.
