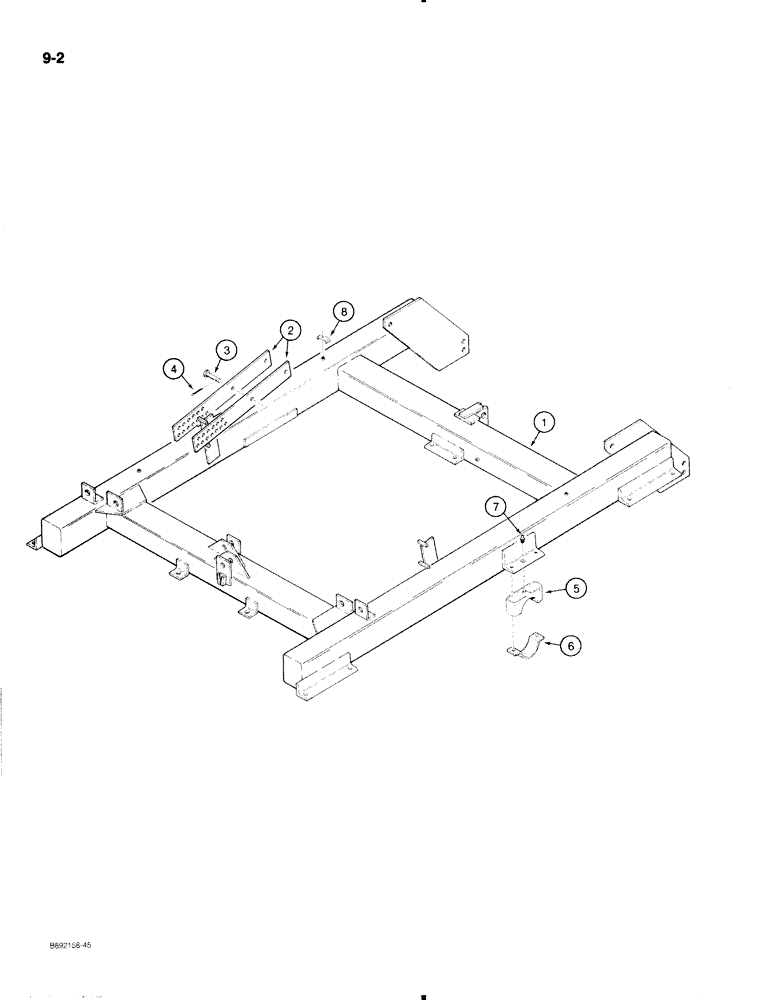

Запчасти Case IH 596 (9-02) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

76930C91

FRAME

ASSEMBLY - main, includes 1254170C1 and (2) 59051C2 decals, see page 9-32 and 9-34

1шт.

2

121083C1

BAR

- gauging

4шт.

3

25419R1

PIN

- clevis, 1 x 2-3/4 inch

6шт.

4

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

1978738C1

HAIR PIN COTTER

3/16" diameter

2шт.

5

56921C1

CAP

BEARING - wheel shaft

2шт.

6

56922C1

CAP

- wheel shaft bearing

2шт.

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

7

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING - grease, straight, 1/8 inch

4шт.

8

129886C2

CLAMP

- hose

8-16шт.

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

8-16шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8-16шт.
