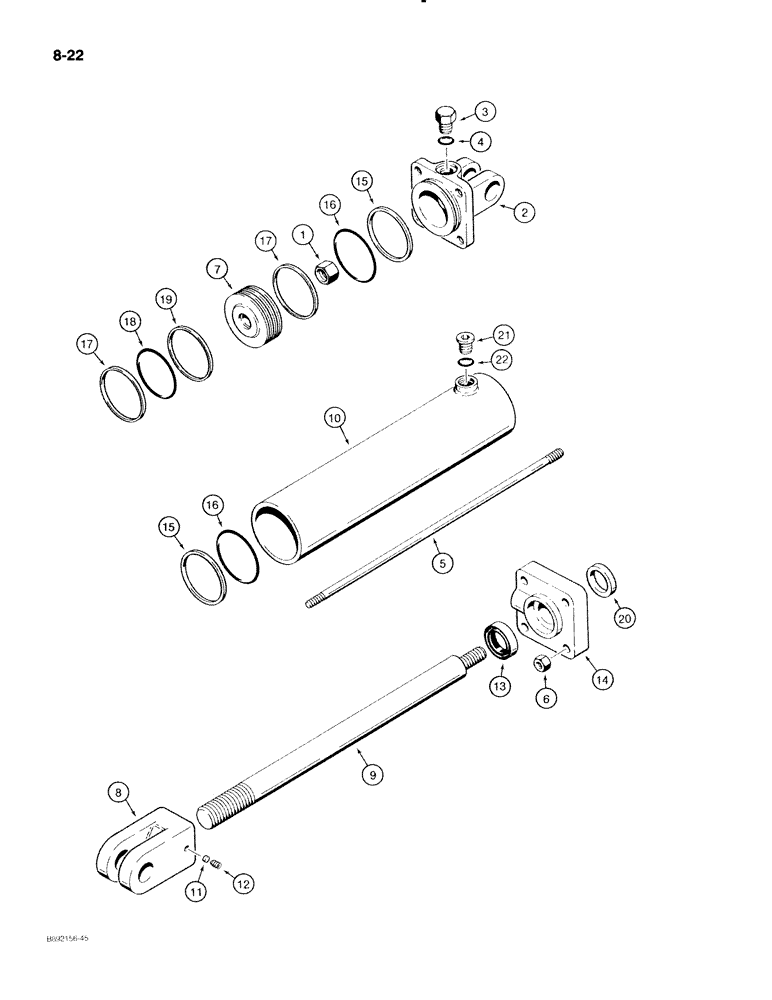

Запчасти Case IH 596 (8-22) - TRANSPORT SLAVE CYLINDER - 1282326C92, CYLINDER PART NUMBER IS STAMPED ON THE TUBE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1282326C92
HYDRAULIC CYLINDER
CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport slave
2шт.
1
20268R1
LOCK NUT,7/8"-14, GC
NUT - hex lock, 7/8 inch NF, grade 8
1шт.
2
1282334C1
HEAD
- cylinder, closed end
1шт.
3
9410359
PLUG
- hex, 3/4-16 inch O-ring boss
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING - 41/64 ID x 3/32 inch
1шт.
Part of Cylinder Repair Kit P/N 79978C2
1шт.
5
1282287C1
TIE-ROD,1/2" - 13 x 28.656"
ROD - cylinder retaining
4шт.
6
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
4шт.
7
145422C1
PISTON
- cylinder
1шт.
8
145240C1
CLEVIS,1 -1/2" - 12
- rod
1шт.
9
1282397C1
PISTON ROD
ROD - piston
1шт.
10
NSS
NOT SOLD SEPARAT
TUBE - cylinder (Order 1282326C92 cylinder assembly)
1шт.
11
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - insert
1шт.
12
125843
SET SCREW,Hex Skt, 3/8"-16 x 3/8"
SCREW - set, hex socket, 3/8 NC x 3/8 inch
1шт.
13
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of Cylinder Repair Kit P/N 79978C2
1шт.
14
1282335C1
HEAD
GLAND - cylinder
1шт.
15
NSS
NOT SOLD SEPARAT
RING - backup
2шт.
Part of Cylinder Repair Kit P/N 79978C2
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - 3-1/4 x 3-1/2 inch, head and gland
2шт.
Part of Cylinder Repair Kit P/N 79978C2
1шт.
17
NSS
NOT SOLD SEPARAT
RING - piston wear
2шт.
Part of Cylinder Repair Kit P/N 79978C2
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - piston
1шт.
Part of Cylinder Repair Kit P/N 79978C2
1шт.
19
NSS
NOT SOLD SEPARAT
RING - seal, piston
1шт.
Part of Cylinder Repair Kit P/N 79978C2
1шт.
20
NSS
NOT SOLD SEPARAT
SEAL - piston rod
1шт.
Part of Cylinder Repair Kit P/N 79978C2
1шт.
21
224582C1
PLUG
- hex socket, 3/4-16 inch O-ring boss
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING - 41/64 ID x 3/32 inch
1шт.
Part of Cylinder Repair Kit P/N 79978C2
1шт.
79978C2
SEAL KIT
KIT - cylinder repair, Includes: Ref. 4, 13, 15-20 and 22
1шт.
Выбрано товаров: 33
