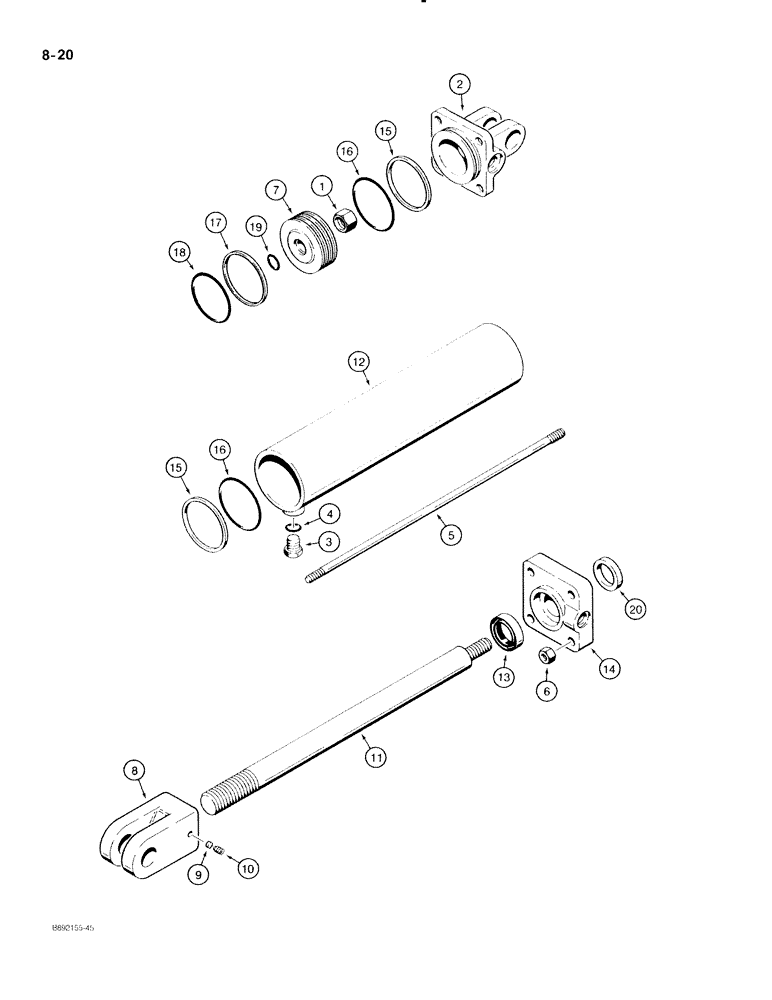

Запчасти Case IH 596 (8-20) - TRANSPORT MASTER CYLINDER - 84990C91, CYLINDER PART NUMBER IS STAMPED ON THE TUBE (08) - HYDRAULICS

84990C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport master, no longer available, order 1282327C92 cylinder for service, see Figure 8-18.

2шт.

1

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

1шт.

2

92476C1

END

HEAD - cylinder, closed end

1шт.

3

9410358

PLUG

- hex, 9/16-18 inch O-ring boss

1шт.

5

77752C1

ROD,1/2" - 13 x 20.125"

- cylinder retaining

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

92537C1

PISTON

- cylinder

1шт.

8

76704C1

FORK

CLEVIS - rod

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket, 3/8 NF x 3/8 inch

1шт.

11

92540C1

ROD

- piston

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Seal Kit Part

1шт.

14

92475C1

END

GLAND - cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Seal Kit Part

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/16 x 3-3/8 inch, head and gland

2шт.

Seal Kit Part

1шт.

17

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Seal Kit Part

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-3/16 inch, piston

1шт.

Seal Kit Part

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - piston rod, 1 x 1-1/16 inch

1шт.

Seal Kit Part

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Seal Kit Part

1шт.

92635C1

SEAL KIT

- cylinder repair

1шт.

Seal Kit Part

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
