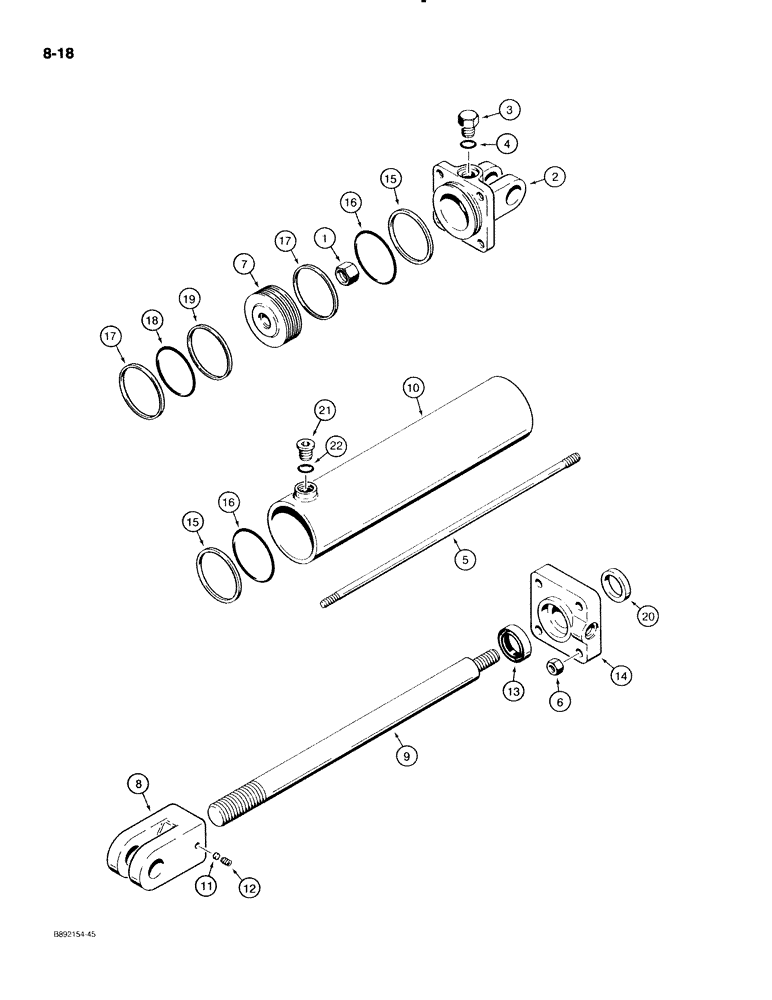

Запчасти Case IH 596 (8-18) - TRANSPORT MASTER CYLINDER - 1282327C92, CYLINDER PART NUMBER IS STAMPED ON THE TUBE (08) - HYDRAULICS

1282327C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport master

2шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, grade 8

1шт.

2

1282334C1

HEAD

- cylinder, closed end

1шт.

3

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 41/64 ID x 3/32 inch

1шт.

Seal Kit Part

1шт.

5

1282287C1

TIE-ROD,1/2" - 13 x 28.656"

ROD - cylinder retaining

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

145422C1

PISTON

- cylinder

1шт.

8

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

9

1282397C1

PISTON ROD

ROD - piston

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order 1282327C92 cylinder assembly)

1шт.

11

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

12

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Seal Kit Part

1шт.

14

1282335C1

HEAD

GLAND - cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Seal Kit Part

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch, head and gland

2шт.

Seal Kit Part

1шт.

17

NSS

NOT SOLD SEPARAT

RING - piston wear

2шт.

Seal Kit Part

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Seal Kit Part

1шт.

19

NSS

NOT SOLD SEPARAT

RING - seal, piston

1шт.

Seal Kit Part

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Seal Kit Part

1шт.

21

224582C1

PLUG

- hex socket, 3/4-16 inch O-ring boss

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 41/64 ID x 3/32 inch

1шт.

Seal Kit Part

1шт.

79978C2

SEAL KIT

KIT - cylinder repair

1шт.

Seal Kit Part

1шт.
