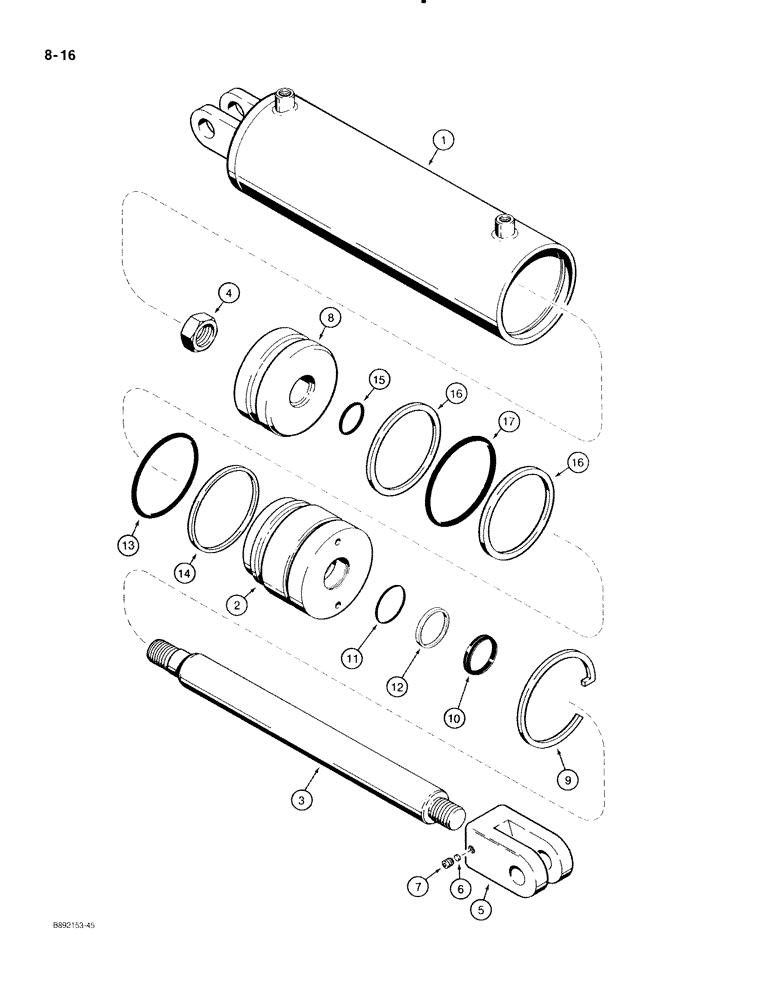

Запчасти Case IH 596 (8-16) - WING FOLDING CYLINDER - 84992C91, CYLINDER PART NUMBER IS STAMPED ON TUBE (08) - HYDRAULICS

84992C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 6 inch ID x 16 inch stroke, wing folding

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order 84992C91 cylinder assembly)

1шт.

2

77960C1

END

GLAND - cylinder

1шт.

3

77958C1

ROD

- piston

1шт.

4

25127R1

LOCK NUT,1 1/2"-12, GC

NUT - hex lock, 1-1/2 inch NF, grade 8

1шт.

5

76704C1

FORK

CLEVIS - rod end

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

7

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - hex socket set, 3/8 NF x 3/8 inch

1шт.

8

77959C1

PISTON

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

RING - gland retaining

1шт.

Seal Kit Part

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Seal Kit Part

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Seal Kit Part

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, piston rod seal

1шт.

Seal Kit Part

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Seal Kit Part

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, gland

1шт.

Seal Kit Part

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: rod-piston

1шт.

Seal Kit Part

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, piston

2шт.

Seal Kit Part

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Seal Kit Part

1шт.

77961C2

SEAL KIT

KIT - cylinder repair

1шт.

Seal Kit Part

1шт.
