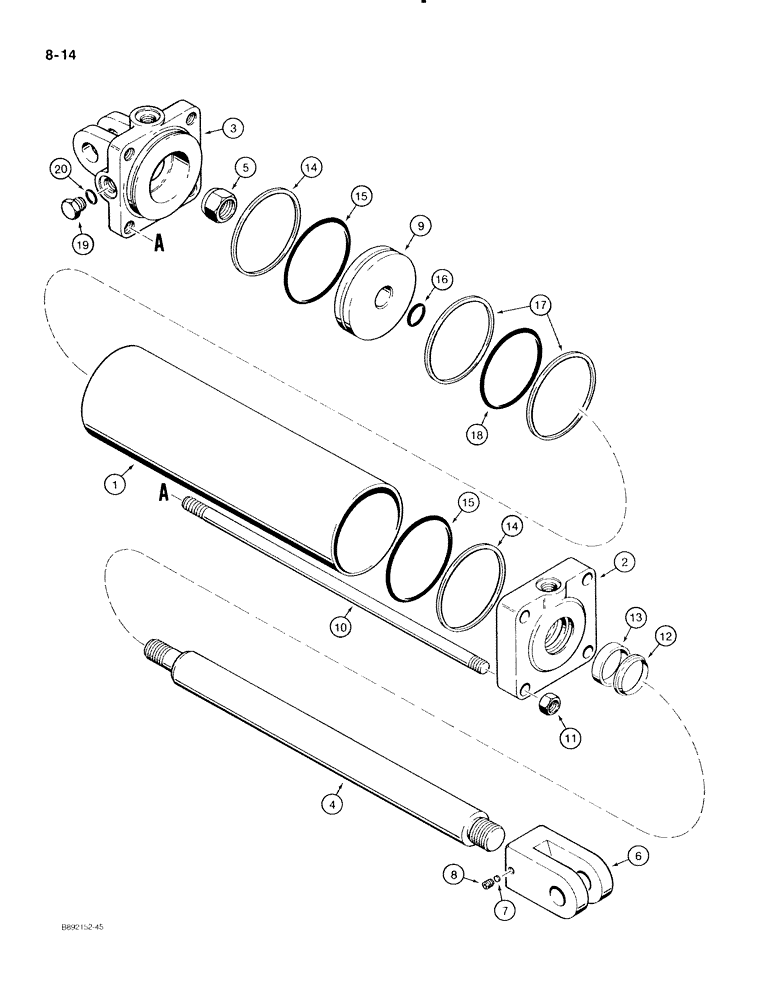

Запчасти Case IH 596 (8-14) - WING FOLDING CYLINDER - 84993C91, CYLINDER PART NUMBER IS STAMPED ON TUBE (08) - HYDRAULICS

84993C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 5 inch ID x 16 inch stroke, wing folding, no longer available, order 1286452C91 cylinder for service, see Figure 8-12.

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

92477C1

END

GLAND - cylinder

1шт.

3

92478C1

END

HEAD - cylinder

1шт.

4

78049C1

ROD

- piston

1шт.

5

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex lock, 1-1/4 inch NF, grade 8

1шт.

6

76704C1

FORK

CLEVIS - rod end

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

8

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - hex socket set, 3/8 NF x 3/8 inch

1шт.

9

76701C1

PISTON

- cylinder

1шт.

10

78048C1

ROD,5/8" - 18 x 21 5/8"

- cylinder retaining

4шт.

11

129-127

NUT,5/8"-18, G5

4шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Seal Kit Part

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Seal Kit Part

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Seal Kit Part

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 4-5/8 x 4-7/8 inch, head and gland

2шт.

Seal Kit Part

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 x 1-3/8 inch

1шт.

Seal Kit Part

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Seal Kit Part

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 4-1/2 x 5 inch, piston

1шт.

Seal Kit Part

1шт.

19

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

Seal Kit Part

1шт.

92633C1

SEAL KIT

KIT - cylinder repair

1шт.

Seal Kit Part

1шт.
