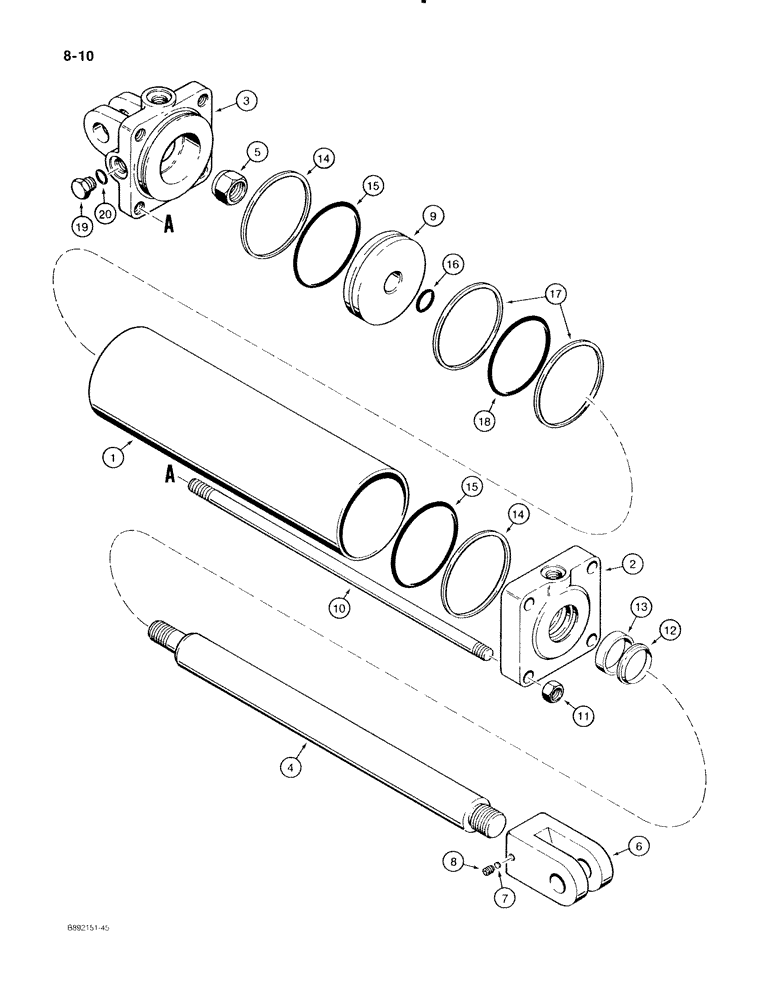

Запчасти Case IH 596 (8-10) - WING FOLDING CYLINDER - 84995C91, CYLINDER PART NUMBER IS STAMPED ON TUBE (08) - HYDRAULICS

84995C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, wing folding, no longer available, order 1272150C91 cylinder for service, see Figure 8-8.

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

92479C1

END

GLAND - cylinder

1шт.

3

92480C1

END

HEAD - cylinder, closed end

1шт.

4

79147C1

ROD

- piston

1шт.

5

25878R1

LOCK NUT,1"-14, GC

NUT - hex lock, 1 inch NF

1шт.

6

76704C1

FORK

CLEVIS - rod end

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

8

222518

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - hex socket set, 3/8 NF x 3/8 inch

1шт.

9

79148C1

PISTON

- cylinder

1шт.

10

79150C1

STUD,5/8" - 18 x 21 3/8"

ROD - cylinder retaining

4шт.

11

129-127

NUT,5/8"-18, G5

4шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Seal Kit Part

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Seal Kit Part

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Seal Kit Part

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 3-5/8 x 3-7/8 inch, head and gland

2шт.

Seal Kit Part

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 1 x 1-1/16 inch

1шт.

Seal Kit Part

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Seal Kit Part

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 3-5/8 x 4 inch, piston

1шт.

Seal Kit Part

1шт.

19

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

Seal Kit Part

1шт.

92636C1

SEAL KIT

KIT - cylinder repair

1шт.

Seal Kit Part

1шт.
