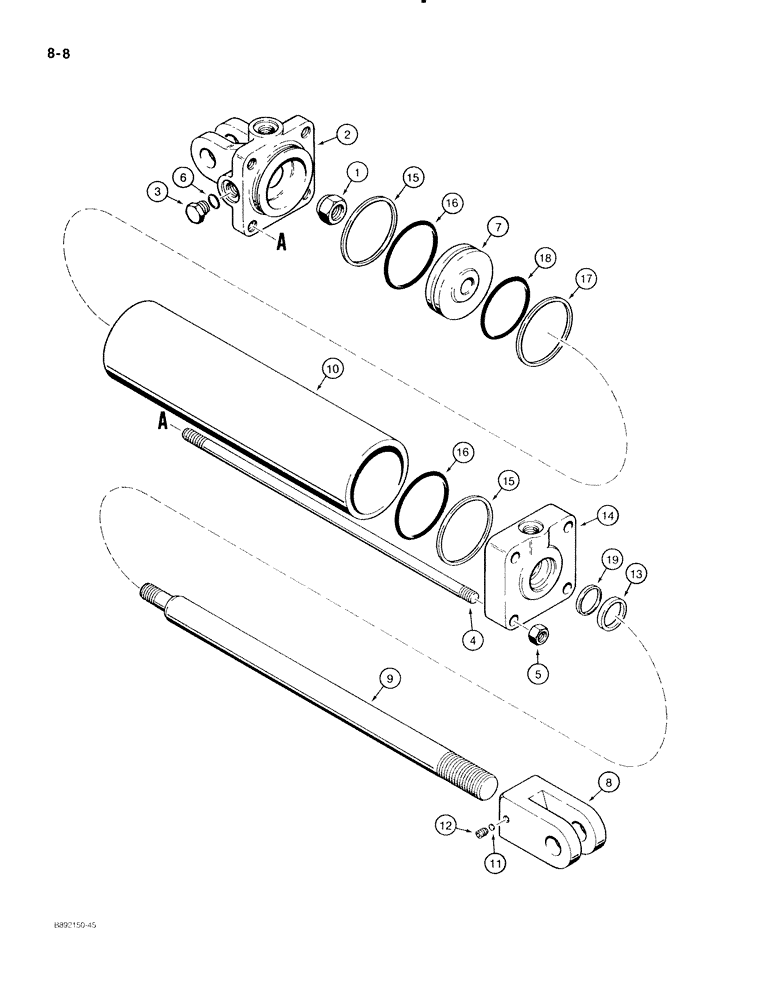

Запчасти Case IH 596 (8-08) - WING FOLDING CYLINDER - 1272150C91, CYLINDER PART NUMBER IS STAMPED ON TUBE (08) - HYDRAULICS

1272150C91

CYLINDER

ASSEMBLY - 4 inch ID x 16 inch stroke, wing folding

2шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, grade 8

1шт.

2

1282336C1

HEAD

- cylinder, closed end

1шт.

3

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

4

145251C1

THREADED ROD,5/8" - 11 x 539mm

ROD - cylinder retaining

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

Seal Kit Part

1шт.

7

149930C2

PISTON

- cylinder

1шт.

8

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

9

1263346C1

ROD ASSY.

ROD - piston

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order 1272150C91 cylinder assembly)

1шт.

11

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

12

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Seal Kit Part

1шт.

14

1282337C1

GLAND

- cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Seal Kit Part

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-3/4 x 4 inch, head and gland

2шт.

Seal Kit Part

1шт.

17

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Seal Kit Part

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 3-1/2 x 3-11/16 inch, piston

1шт.

Seal Kit Part

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Seal Kit Part

1шт.

79979C2

SEAL KIT

KIT - cylinder repair

1шт.

Seal Kit Part

1шт.
