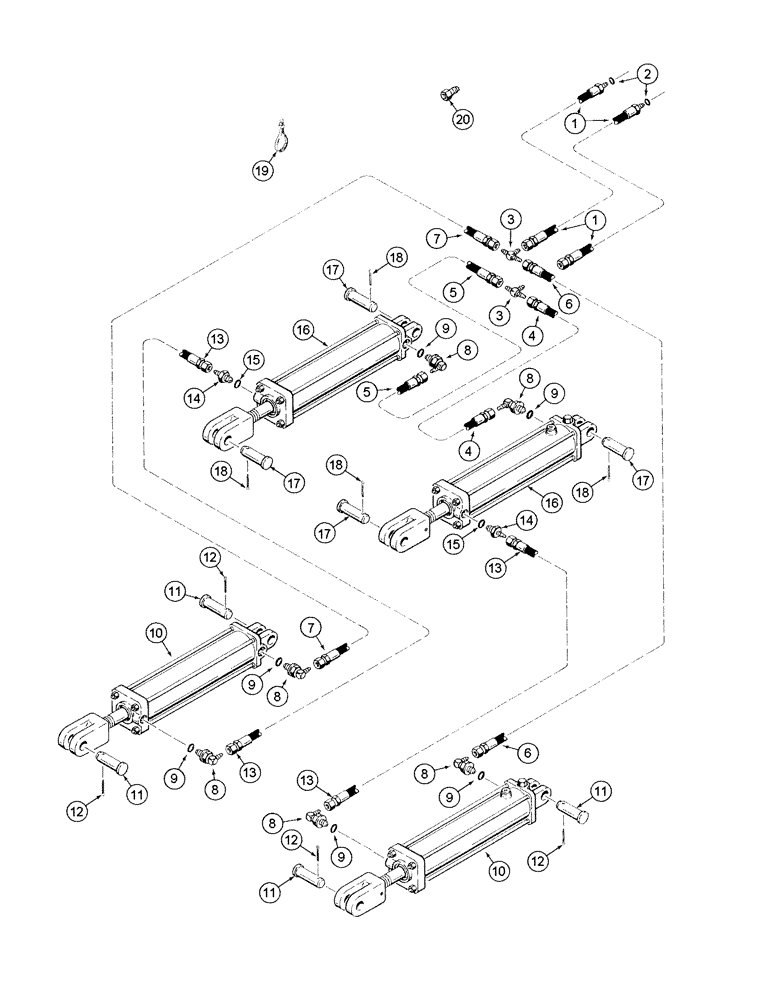

Запчасти Case IH 596 (8-04) - HYDRAULIC SYSTEM, TRANSPORT MASTER AND SLAVE CYLINDERS (08) - HYDRAULICS

1

147886C1

HOSE,0.50" ID x 175.00", SAE 100R7

- 1/2 ID x 175 inch, supply to tee, order 1284304C1 hose, 9403400 adapter, 9403528 nut, and 218-5354 adapter for service

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

1

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - 3/8 ID x 175 inch, Serial Range: supply-tee

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - 3/4-16 flared to 9/16-18 inch flared, if used

2шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - 3/4-16 inch flared, if used

2шт.

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, If used

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, If used

1шт.

3

218-593

TEE,9/16"-18, 37 Degree

- hydraulic, 9/16-18 inch flared, if used

2шт.

3

673568R1

TEE

- hydraulic, 7/8-14 inch flared x 9/16-18 inch flared, if used

2шт.

4

129672C2

HYDRAULIC HOSE

HOSE - 39 inch long, at closed end of right-hand master cylinder

1шт.

5

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE - 55 inch long, at closed end of left-handmaster cylinder

1шт.

6

139654C2

HYDRAULIC HOSE

HOSE - 125 inch long, at closed end of right-hand slave cylinder

1шт.

Disk Harrow coded A

1шт.

6

139519C2

HYDRAULIC HOSE

HOSE - 135 inch long, at closed end of right-hand slave cylinder

1шт.

Disk Harrow coded B

1шт.

6

139522C2

HOSE

- 255 inch long, at closed end of right-hand slave cylinder

1шт.

Disk Harrow coded C

1шт.

7

139519C2

HYDRAULIC HOSE

HOSE - 135 inch long, at closed end of left-hand slave cylinder

1шт.

Disk Harrow coded A

1шт.

7

139655C2

HYDRAULIC HOSE

HOSE - 155 inch long, at closed end of left-hand slave cylinder

1шт.

Disk Harrow coded B

1шт.

7

129673C2

HOSE

- 280 inch long, at closed end of left-hand slave cylinder

1шт.

Disk Harrow coded C

1шт.

8

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flared x 3/4-16 inch O-ring boss, If used

6шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 flared x 9/16-18 inch O-ring boss, if used

6шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 ID x 16 inch stroke, 1/2 inch PT ports, transport slave, for correct assembly and components, see Figure 8-22 and 8-24

2шт.

11

28537R1

CLEVIS PIN,1 1/4" x 3 3/4"

PIN - clevis, 1-1/4 x 3-3/4 inch

4шт.

12

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

13

129671C2

HYDRAULIC HOSE

HOSE - 105 inch long, at rod ends of master and slave cylinders

2шт.

Disk Harrow coded A

1шт.

13

139654C2

HYDRAULIC HOSE

HOSE - 125 inch long, at rod ends of master and slave cylinders

2шт.

Disk Harrow coded B

1шт.

13

139522C2

HOSE

- 255 inch long, at rod ends of master and slave cylinders

2шт.

Disk Harrow coded C

1шт.

14

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - 9/16-18 flared x 3/4-16 inch O-ring boss, if used

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - 9/16-18 flared x 9/16-18 inch O-ring boss, if used

2шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 ID x 16 inch stroke, 1/2 inch PT ports, transport master, for correct assembly and components, see Figure 8-18 and 8-20

2шт.

17

28537R1

CLEVIS PIN,1 1/4" x 3 3/4"

PIN - clevis, 1-1/4 x 3-3/4 inch

4шт.

18

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

19

289862C1

CABLE TIE,3/16" x 7"

TIE - hose

1шт.

20

395149R1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, poppet type, hydraulic couplers and adapters

1шт.

20

1341843C1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, self sealing type, hydraulic couplers and adapters

1шт.

20

1272399C2

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, self sealing (ISO Standard), hydraulic couplers and adapters

1шт.

20

1285718C2

QUICK MALE COUPLING

COUPLER - male, 3/4-16 inch thread, self sealing (ISO Standard), hydraulic couplers and adapters

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

REDUCER - 7/8-14 male O-ring boss to 3/4-16 inch female O-ring boss, hydraulic couplers and adapters

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Hydraulic couplers and adapters

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 inch male O-ring boss x 7/8-14 inch female O-ring boss, hydraulic couplers and adapters

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hydraulic couplers and adapters

1шт.

1252130C1

ADAPTER

- 3/4-16 inch male O-ring boss x 9/16-18 inch female O-ring boss, hydraulic couplers and adapters

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hydraulic couplers and adapters

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, If used

1шт.
