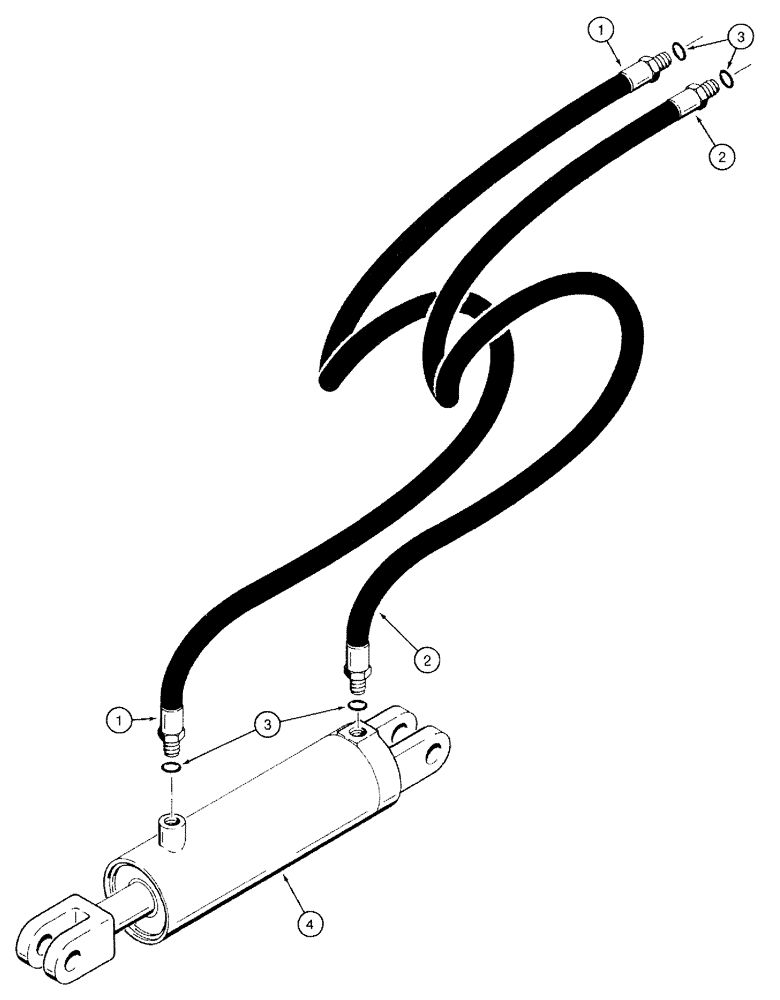

Запчасти Case IH 501 (8-01) - TRANSPORT LIFT HYDRAULIC CIRCUIT, HOSES WITH MALE ENDS (08) - HYDRAULICS

1

139655C2

HYDRAULIC HOSE

HOSE - 1/2 inch ID x 155 inch long, tractor to cylinder rod end (Replaces 653348R91)

1шт.

Also Order 218-5281 Elbow and 218-5354 Connector

1шт.

2

121360C1

HOSE,0.50" ID x 135.00", SAE 100R1

- Cylinder closed end to tractor 0.50" ID x 135.00", SAE 100R1

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

4

71958C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

1шт.

See Figure 8-10 for service parts

1шт.

No longer available, for service order 1272149C92 cylinder assembly, parts list figure 8-13, also order (1) 28537R1 clevis pin, (1) 132-313 cotter pin, (2) 1252129C1 adapters and (2) 237-6008 O-rings

1шт.

4

387351R93

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

1шт.

See Figure 8-10 for service parts

1шт.

No longer available, for service order 1272149C92 cylinder assembly, parts list figure 8-13, also order (1) 427-20375 clevis pin and (1) 432-1632 cotter pin

1шт.

4

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 387351R93

1шт.

4

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

4

61107C92

CYLINDER

ASSEMBLY- 3-1/2 inch ID x 16 inch stroke, transport lift, if used

1шт.

See Figure 8-09 for service parts

1шт.

4

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 61107C92

1шт.

4

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

4

145212C92

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift

1шт.

See Figure 8-11 for service parts

1шт.

No longer available, order 1272149C92 cylinder assembly, parts list figure 8-13, not shown

1шт.

4

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 145212C92

1шт.

4

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

4

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY - 3-1/2 inch ID x 16 inch stroke, transport lift, not shown

1шт.

See Figure 8-13 for service parts

1шт.

4

1272149C92R

REMAN-HYD CYLINDER

501 CASE IH DISK HARROW, ASSEMBLY, transport lift

1шт.

4

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.
