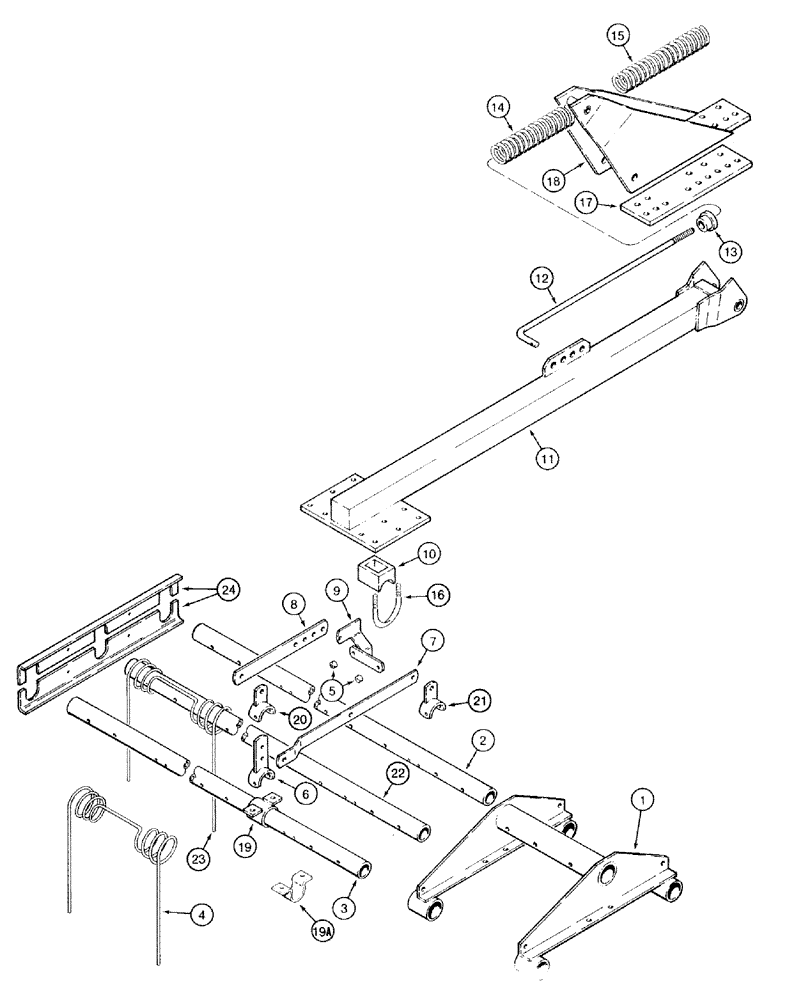

Запчасти Case IH 501 (9-14) - MULCHER ATTACHMENT, ADJUSTABLE ANGLE (09) - CHASSIS/ATTACHMENTS

1

485614R2

FRAME

- tooth bar, 3-1/2 foot long, if used

2шт.

1

813022C1

FRAME

- tooth bar, 14-3/4 foot long

1шт.

2

485589R1

TUBE

BAR - first tooth, used with 3-1/2 foot frame

1шт.

2

813029C1

TUBE,1.66" OD, 173.875" Length

BAR - first tooth, used with 14-3/4 foot frame

1шт.

3

485590R1

TUBE

BAR - third tooth, used with 3-1/2 foot frame

1шт.

3

813035C1

TUBE,1.66" OD, 173.875" Length

BAR - third tooth, used with 14-3/4 foot frame

1шт.

432-1648

COTTER PIN,1/4" x 3"

4 used per bar 1/4" x 3"

1шт.

4

72901C1

TOOTH

- spring, third bar, 6 used with 3-1/2 foot frame and 24 used with 14-3/4 foot frame

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Shoulder (2 used per tooth) (Replaces 487082R1) (Also Order 485591R1 Spacer) Hex, 3/8"-16 x 2 3/4", G5

1шт.

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC, 2 used per tooth

1шт.

5

485591R1

SPACER

BUSHING - tooth, models with (2) 3-1/2 foot frames

4шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

6

485592R1

ARM

HANDLE - bar (1 used per frame)

1шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

230-4217

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

1шт.

7

485593R1

SUPPORT

EXTENSION - handle, 19-1/4 inch long

1-2шт.

8

485594R1

BAR

EXTENSION - handle, 12-1/4 inch long

1-2шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - clevis, 7/16 x 1 inch

4-8шт.

87019792

WASHER,0.47" ID x 0.92" OD x 0.1" Thk

- flat, 15/32 x 59/64 x 3/32 inch

3-6шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

3-6шт.

480523R1

HAIR PIN COTTER

1-2шт.

9

485595R1

SUPPORT

POST - front, used with 3-1/2 foot long frame

1шт.

10

490687R1

CLAMP

- carrier arm, used with 3-1/2 foot long frame

2шт.

11

75220C1

ARM

- mounting

2шт.

280609

CARRIAGE BOLT,3/4" - 10 x 6", Gr 5

BOLT - hex, 3/4 NC x 6 inch

4шт.

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

12

596580R1

ROD

- adjustment

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

495-81037

WASHER,25/32" x 1 1/4" x .060"

- flat, 3/4 x 1-1/4 x 1/16 inch

2шт.

13

1431BX

COLLAR CLAMP

COLLAR ASSEMBLY - Inc. set screw

2шт.

83-15016

SET SCREW,Hex Soc, 1/2"-13 x 1"

SCREW - set, square head, 1/2 NC x 3/4 inch

2шт.

178375R1

WASHER

- flat, 3/4 x 1-1/4 x 1/16 inch

2шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

2шт.

14

596574R1

SPRING

- compression, lower

2шт.

15

485611R1

SPRING

- compression, upper

2шт.

16

490688R1

BOLT,1/2" - 13 x 4 1/2"

- U-type, 1/2 inch NC

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

17

75222C1

CLAMP

PLATE - clamping, arm mounting bracket

1шт.

75223C1

STUD

- plate retaining

4шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

18

75221C1

BRACKET

- arm mounting

1шт.

19

485603R1

BUSHING

- second tooth bar

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

9628503

NUT,3/8"-16, G5

8шт.

19a

813036C1

CLAMP

- tooth

8шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

20

485601R1

ARM

POST - center, second tooth

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - clevis, 7/16 x 1-1/2 inch

1шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

230-4217

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

1шт.

21

485601R1

ARM

POST - first tooth

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN - clevis, 7/16 x 1 inch

1шт.

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

230-4217

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

1шт.

22

485602R1

TUBE

BAR - second tooth, used with 3-1/2 foot frame, if used

1шт.

22

813032C1

TUBE,1.66" OD, 173.875" Length

BAR - second tooth, used with 14-3/4 foot frame, if used

1шт.

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

23

72901C1

TOOTH

- spring, first and second bar, 3 used with 3-1/2 foot long frame and 12 used with 14-3/4 foot long frame

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Shoulder (2 used per tooth) (Replaces 487082R1) (Also Order 485591R1 Spacer) Hex, 3/8"-16 x 2 3/4", G5

1шт.

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC, 2 used per tooth

1шт.

24

487777R1

TUBE

RAIL - center, half-section, 2 used per frame

1шт.
