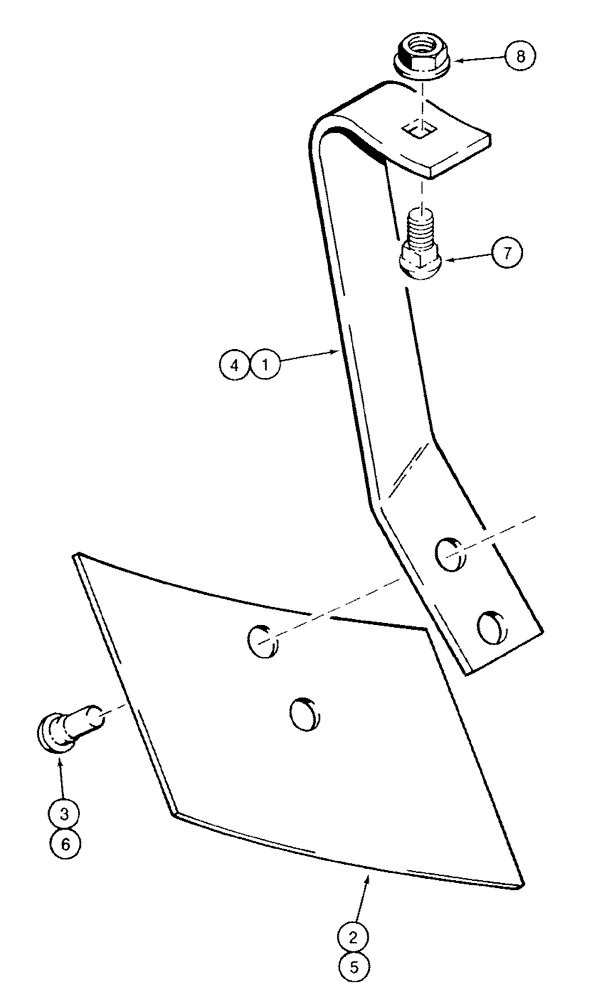

Запчасти Case IH 501 (9-13) - SCRAPERS (09) - CHASSIS/ATTACHMENTS

121470C92

SCRAPER

BLADE ASSEMBLY - scraper, left-hand, Inc. REF 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper, left-hand, not shown

1шт.

2

121469C1

BLADE

- scraper

1шт.

3

147-351

RIVET,12.7mm OD x 38.1mm L

- scraper blade

2шт.

121471C92

SCRAPER

BLADE ASSEMBLY - scraper, right-hand, Inc. REF 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper, right-hand

1шт.

5

121469C1

BLADE

- scraper

1шт.

6

147-351

RIVET,12.7mm OD x 38.1mm L

- scraper blade

2шт.

7

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch, grade 5

1шт.

8

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, grade 8

1шт.

8

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.
