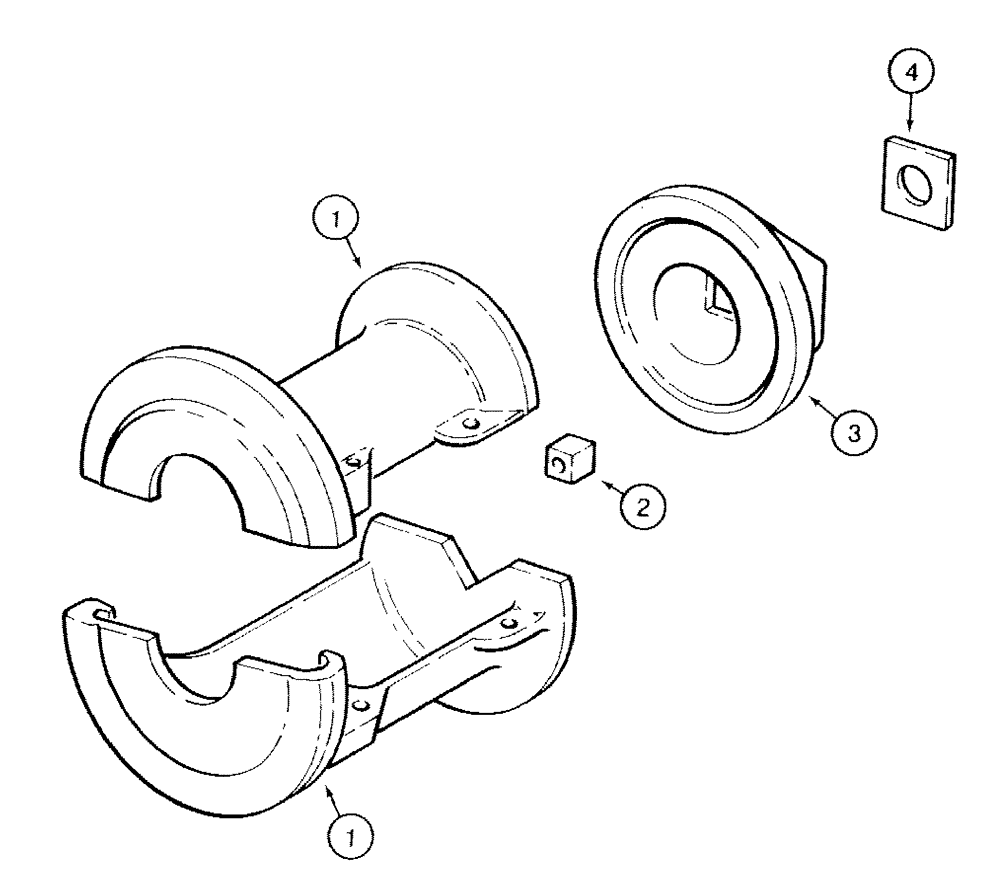

Запчасти Case IH 501 (9-12) - FURROW FILLER (09) - CHASSIS/ATTACHMENTS

1

100693C1

SPOOL

- half-section, furrow filler, 7-1/2 inch long, if used

4шт.

When adding furrow filler attachment, a total of (4) P/N 100693C1 or P/N 129797C1 furrow filler spool half-sections must be ordered.

1шт.

1

129797C1

HUB

SPOOL - half-section, furrow filler, 9-1/4 inch long, if used

4шт.

When adding furrow filler attachment, a total of (4) P/N 100693C1 or P/N 129797C1 furrow filler spool half-sections must be ordered.

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

- hex, 1/2 NC x 1-1/2 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

2

100694C1

PLATE,SMALL SQUARE

BLOCK - driver

2шт.

3

596769R1

SQ HOLE WASHER

WASHER - arbor bolt head

4шт.

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

4

100695C1

SPACER

- arbor bolt head washer

2шт.
