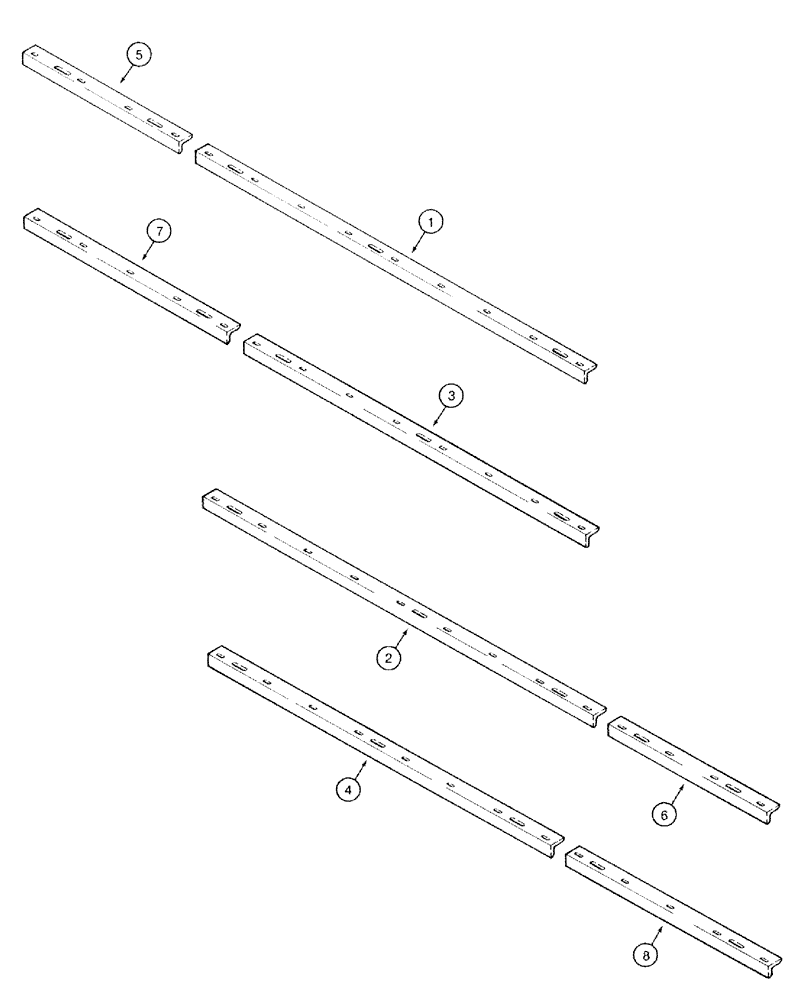

Запчасти Case IH 501 (9-08) - SCRAPER ANGLES (09) - CHASSIS/ATTACHMENTS

1

121225C1

ANGLE

- scraper, left-hand front, main (Disk Harrow coded A)

1шт.

1

121302C2

ANGLE

- scraper, left-hand front, main (Disk Harrow coded B and D)

1шт.

1

121304C2

ANGLE

- scraper, left-hand front, main (Disk Harrow coded C)

1шт.

2

121225C1

ANGLE

- scraper, right-hand front, main (Disk Harrow coded A)

1шт.

2

121302C2

ANGLE

- scraper, right-hand front, main (Disk Harrow coded B and D)

1шт.

2

121304C2

ANGLE

- scraper, right-hand front, main (Disk Harrow coded C)

1шт.

3

129518C1

ANGLE

- scraper, left-hand rear, main (Disk Harrow coded A)

1шт.

3

129558C1

ANGLE

- scraper, left-hand rear, main (Disk Harrow coded B)

1шт.

3

129560C1

ANGLE

- scraper, left-hand rear, main (Disk Harrow coded C)

1шт.

3

121225C1

ANGLE

- scraper, left-hand rear, main (Disk Harrow coded D)

1шт.

4

129519C1

ANGLE

- scraper, right-hand rear, main (Disk Harrow coded A)

1шт.

4

129559C1

ANGLE

- scraper, right-hand rear, main (Disk Harrow coded B)

1шт.

4

129561C1

ANGLE

- scraper, right-hand rear, main (Disk Harrow coded C)

1шт.

4

121225C1

ANGLE

- scraper, right-hand rear, main (Disk Harrow coded D)

1шт.

5

121303C1

ANGLE

- scraper, left-hand front, wing (Disk Harrow coded D)

1шт.

6

121303C1

ANGLE

- scraper, right-hand front, wing (Disk Harrow coded D)

1шт.

7

129556C1

ANGLE

- scraper, left-hand rear, wing (Disk Harrow coded D)

1шт.

8

129557C1

ANGLE

- scraper, right-hand rear, wing (Disk Harrow coded D)

1шт.

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch (Disk Harrow coded A) (Disk Harrow coded B and C) (Disk Harrow coded D)

20шт.

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

(Disk Harrow coded A) (Disk Harrow coded B and C) (Disk Harrow coded D) Flg, USR, 5/8"-11

20шт.
