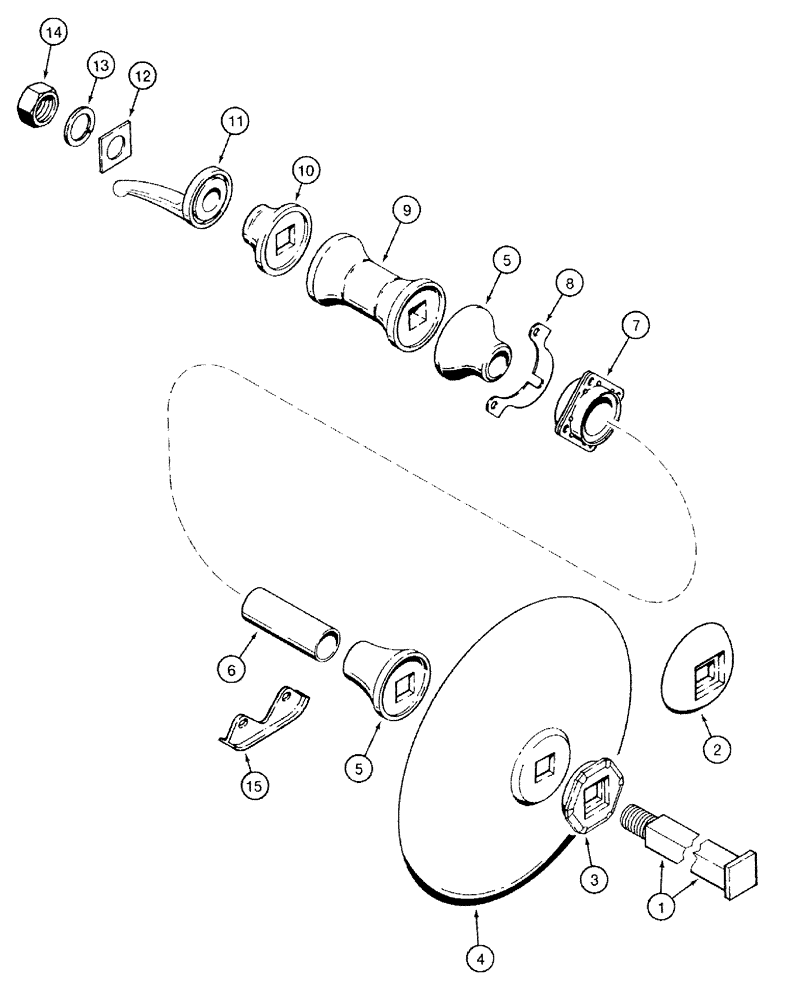

Запчасти Case IH 501 (9-07) - DISKS AND BEARINGS (09) - CHASSIS/ATTACHMENTS

1

549979R1

BOLT,Rnd Cor Sq Hd, 1 1/2" - 6 x 1732mm

- arbor, square, 1-1/2 x 68-3/16 inch, main (Disk Harrow coded A and D)

4шт.

1

549980R1

BOLT,1 1/2" - 6 x 2004mm

- arbor, square, 1-1/2 x 78-7/8 inch, main (Disk Harrow coded B)

4шт.

1

549981R1

BOLT,1 1/2" - 6 x 2271mm

- arbor, square, 1-1/2 x 89-3/8 inch, main (Disk Harrow coded C)

4шт.

1

58831C1

SQUARE BOLT

BOLT - arbor, square, 1-1/2 x 47-1/4 inch, wing (Disk Harrow coded D)

4шт.

2

549975R2

SQ HOLE WASHER

- bumper, 1 used per arbor bolt

1шт.

3

100697C1

WASHER

- special, used with furrow filler

2шт.

4

549985R1

DISK HARROW

DISK - solid, 24 inch (610 mm) OD x 13/64 inch (5 mm) thick

1шт.

No longer available, for service order 549987R2

1шт.

4

549991R2

DISK HARROW

DISK - solid, 22 inch (560 mm) OD x 1/4 inch (6 mm) thick

1шт.

4

549990R2

DISK HARROW

DISK - notched, 22 inch (560 mm) OD x 1/4 inch (6 mm) thick, not shown

1шт.

4

549984R1

DISK HARROW

DISK - notched, 24 inch (610 mm) OD x 13/64 inch (5 mm) thick, not shown

1шт.

No longer available, for service order 549986R2

1шт.

4

549986R2

DISK HARROW

24CL5, not shown

1шт.

4

549987R2

DISK HARROW

DISK - solid, 24 inch (610 mm) OD x 1/4 inch (6 mm) thick

1шт.

4

58934C3

DISK HARROW

DISK, 26.5"X6.5MM CLV/LF

1шт.

4

58917C3

DISK HARROW

DISK, 26.5"X6.5MM CLV/LF

1шт.

5

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

SPOOL - bearing (Disk Harrow coded A) (Disk Harrow coded B and C) (Disk Harrow coded D)

1шт.

6

549971R1

SUPPORT TUBE

BUSHING - support, 1 used per bearing support

1шт.

7

ST740B

BALL BEARING,55.58mm ID

BEARING - ball, disk gang (Disk Harrow coded A) (Disk Harrow coded B and C) (Disk Harrow coded D)

1шт.

7

ST740BGV

BEARING

Value, Ball Bearing

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3 used per bearing Hex, 1/2"-13 x 1 3/4", G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

58919C1

SHIM

- bearing, 3/16 inch thick

1шт.

8

139617C1

SHIM

- bearing, 3/32 inch thick

1шт.

9

549976R1

SPOOL

- spacing (Disk Harrow coded A) (Disk Harrow coded B) (Disk Harrow coded C and D)

1шт.

10

549973R2

SQ HOLE WASHER

- special, arbor bolt, 1 used per arbor bolt

1шт.

11

129809C1

BLOCK DRIVER

WASHER - gang driver (Disk Harrow coded D)

8шт.

12

488836R2

NUT

LOCK - arbor bolt, 1 used per arbor bolt

1шт.

13

92-21150

LOCK WASHER,1 1/2"

1-1/2", 1 used per arbor bolt, plain, if used

1шт.

13

492-21150

LOCK WASHER,1 1/2"

1 used per arbor bolt, plated, if used 1 1/2"

1шт.

14

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, 1-1/2 inch NC, 1 used per arbor bolt, plain, if used

1шт.

14

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, 1-1/2 inch NC, 1 used per arbor bolt, plated, if used

1шт.

15

129753C1

BEARING COVER

- bearing wear

2шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
