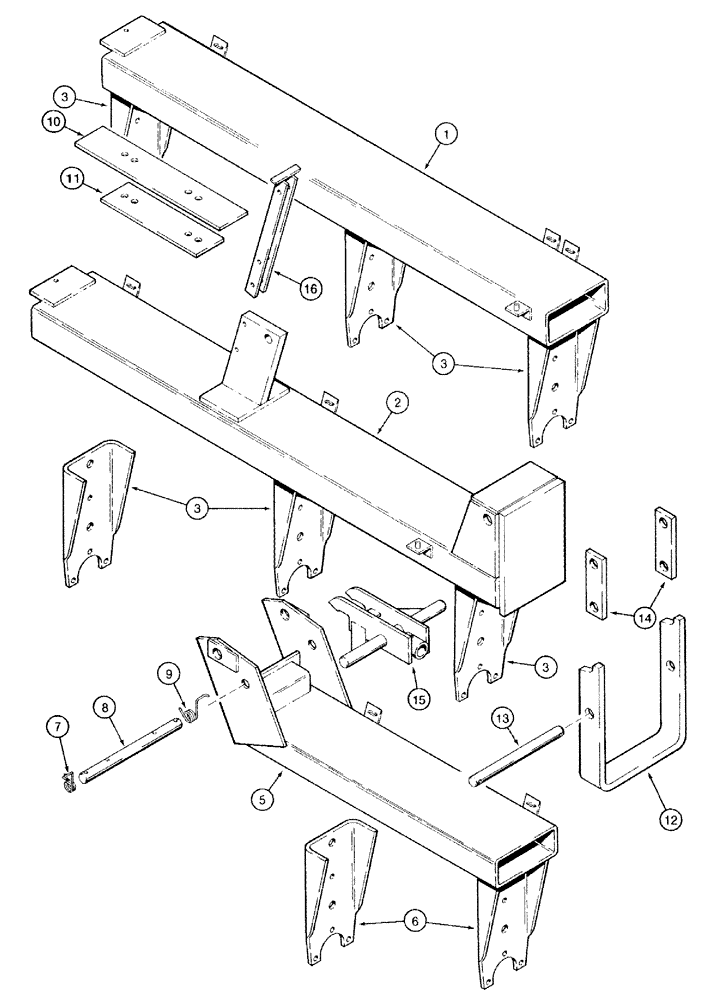

Запчасти Case IH 501 (9-06) - GANG FRAMES AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

100925C2

BAR

FRAME - main gang, left-hand front (Disk Harrow coded A)

1шт.

1

100926C2

BAR

FRAME - main gang, right-hand front, not shown (Disk Harrow coded A)

1шт.

1

100927C2

BAR

FRAME - main gang, left-hand rear (Disk Harrow coded A)

1шт.

1

100928C2

BAR

FRAME - main gang, right-hand rear (Disk Harrow coded A)

1шт.

1

100972C2

BAR

FRAME - main gang, left-hand front (Disk Harrow coded B)

1шт.

1

100973C2

BAR

FRAME - main gang, right-hand front, not shown (Disk Harrow coded B)

1шт.

1

100974C2

BAR

FRAME - main gang, left-hand rear (Disk Harrow coded B)

1шт.

1

100975C2

BAR

FRAME - main gang, right-hand rear, not shown (Disk Harrow coded B)

1шт.

1

100976C2

BAR

FRAME - main gang, left-hand front (Disk Harrow coded C)

1шт.

1

100977C2

BAR

FRAME - main gang, right-hand front, not shown (Disk Harrow coded C)

1шт.

1

100978C2

BAR

FRAME - main gang, left-hand rear (Disk Harrow coded C)

1шт.

1

100979C2

BAR

FRAME - main gang, right-hand rear, not shown (Disk Harrow coded C)

1шт.

2

100716C2

BAR

FRAME - main gang, left-hand front (Disk Harrow coded D)

1шт.

2

100717C2

BAR

FRAME - main gang, right-hand front, not shown (Disk Harrow coded D)

1шт.

2

100719C2

BAR

FRAME - main gang, left-hand rear (Disk Harrow coded D)

1шт.

2

100720C2

BAR

FRAME - main gang, right-hand rear, not shown (Disk Harrow coded D)

1шт.

3

139661C1

SUPPORT

- bearing, 3 included with each main gang above

3шт.

4

121105C2

BRACKET

- scraper support, left-hand, not shown

1шт.

4

121106C2

BRACKET

- scraper support, right-hand, not shown

1шт.

5

1263508C91

FRAME - wing gang, left-hand front (Disk Harrow coded D)

1шт.

5

1263509C91

FRAME - wing gang, right-hand front, not shown (Disk Harrow coded D)

1шт.

5

1263510C91

EXTENSION

FRAME - wing gang, left-hand rear (Disk Harrow coded D)

1шт.

5

1263511C91

FRAME - wing gang, right-hand rear, not shown (Disk Harrow coded D)

1шт.

6

139661C1

SUPPORT

- bearing, 2 included with each wing gang above

2шт.

7

60600C1

VALVE SPRING

SPRING - hinge latch, front

4шт.

8

60209C1

PIN,31.8mm OD x 393.7mm L

- latch pivot

4шт.

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

16шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

8шт.

9

60601C1

VALVE SPRING

SPRING - hinge latch, rear

4шт.

10

62449C1

PLATE

- upper

2шт.

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch

4шт.

231-42112

NUT,3/4"-10, GB

NUT - hex, lock, 3/4 inch NC

4шт.

11

62448C1

PLATE

- lower

2шт.

12

121273C1

BRACKET

- lockout

4шт.

13

60205C1

PIN

- lockout bracket mounting

4шт.

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

8шт.

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/64 inch

8шт.

14

60207C2

BAR

- lockout bracket

8шт.

15

100828C1

EXTENSION

- cylinder

4шт.

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- flat, 1-9/32 x 2 x 7/64 inch

4шт.

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

8шт.

439-51038

HEADED PIN,5/8" x 2 3/8"

PIN - clevis, 5/8 x 2-3/8 inch

4шт.

432-1216

COTTER PIN,3/16" x 1"

4шт.

16

100872C1

SUPPORT ASSY.

BRACKET - wing support

4шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.
